2.7 Installation of high rigidity radial cylinder type
2-59
2. Installation
[Precautions for horizontal mounting using flanges]

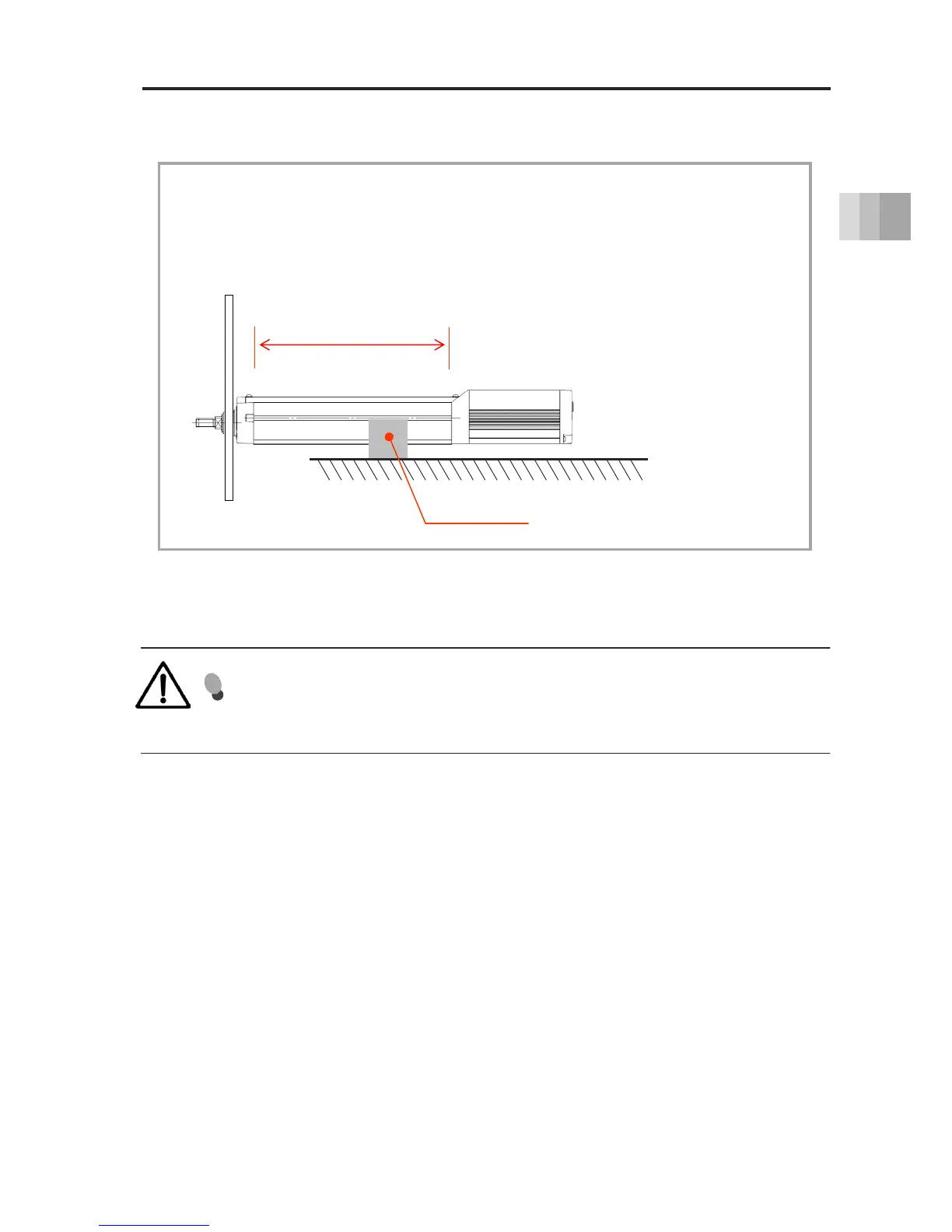

● Prepare a support block for the body, as shown in the figure below, for a stroke of 150mm
or more.
● The support block should be installed on the frame motor side.
● We recommend either keeping the support block (aluminum alloy, etc.) close against the
frame.
Caution
Even when the stroke is less than 150mm, a support block is strongly recommended in
order to avoid vibration generated due to the operation conditions or installation
environment, which may lead to malfunctions or damage to parts.
Support block
Installation range
