8.5 Greasing method
8-16
8. Maintenance and Inspection

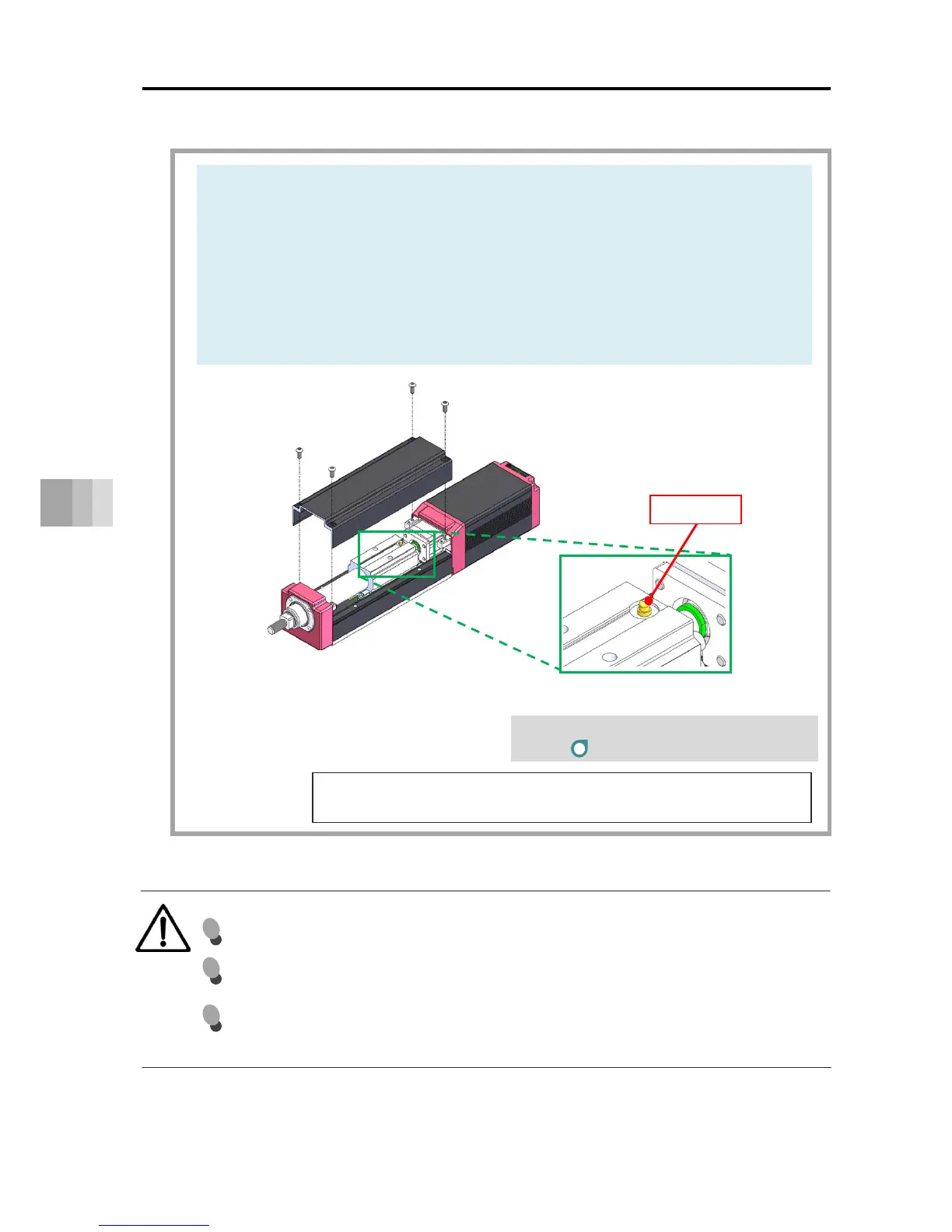

(3) Greasing method: Ball screw/guide (supply to both through grease fitting)
(1) Remove the hex socket button bolts (4 pcs) fixing the frame cover, and then remove
the frame cover itself.
(2) Using a grease gun, supply grease through the grease fitting (φ3.5) on top of the nut
holder.
(3) Move the nut holder throughout the full stroke to apply the grease thoroughly.
(4) Mount the frame cover on the base and fix it with hex socket button bolts (4 pcs)
(tightening torque: 1.91N･m).
Caution
Supplying too much grease may increase sliding resistance.
This may increase motor load and result in decreased performance.
If the grease enters your eye, immediately see a specialist physician for appropriate
care.
After finishing the grease replenishment, wash your hands carefully with water and soap
to rinse the grease off.
High rigidity radial cylinder type (EC-RR□□AH) and
High rigidity radial cylinder type (EC-RR□□H) greasing method
* To release the brake,
refer to
Brake release method (page 3-10)
Grease fitting
To Next Page
