8.6 How to replace components
8-18
8. Maintenance and Inspection
[EC-S6□AH/S7□AH, EC-S6□H/S7□H]
(1) Remove the sheet clamp and the track housing cover.
(2) Loosen the screws and remove the sheet retainer.
(3) Pull out the old stainless steel sheet.
(4) Insert a new stainless steel sheet using the reverse procedure.
It should be inserted along the slider internal guide.
(5) Mount the sheet retainer.
(6) Secure the sheet clamp and the track housing cover.
Body model Stainless steel sheet model
EC-S6□AH
EC-S6□H
ST-ECH-S6-*** (stroke)
EC-S7□AH
EC-S7□H
ST-ECH-S7-*** (stroke)

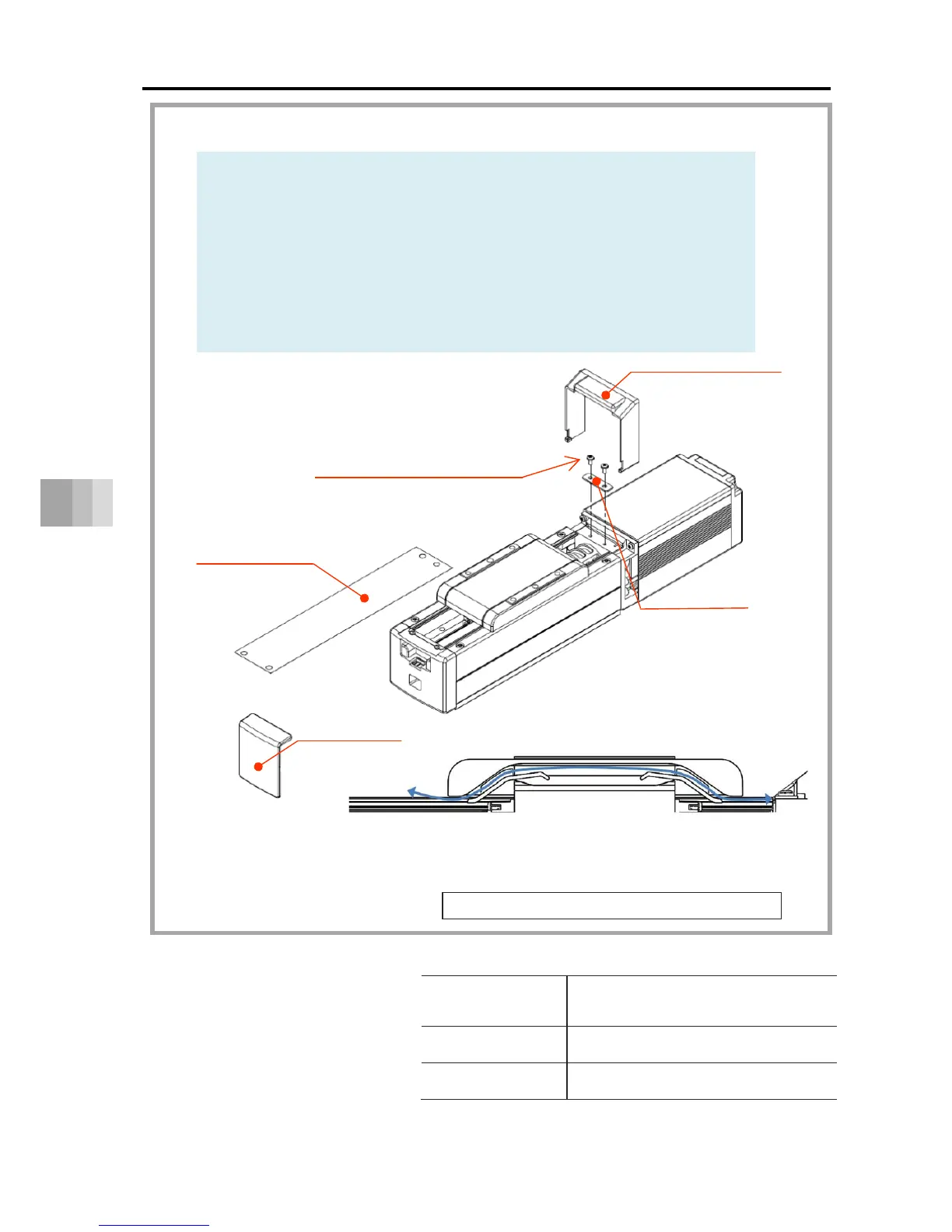

Stainless steel sheet replacement method
Sheet clamp
Stainless steel sheet
Cross-recessed pan screws x 2 pcs
(M3 x 5, tightening torque 0.41N･m)
Sheet retainer
Track housing cover
Internal structure
