9. Maintenance and Inspection
[Procedure]
1) Remove the slider-cover affixing screws and remove the covers.
After the slider covers have been removed

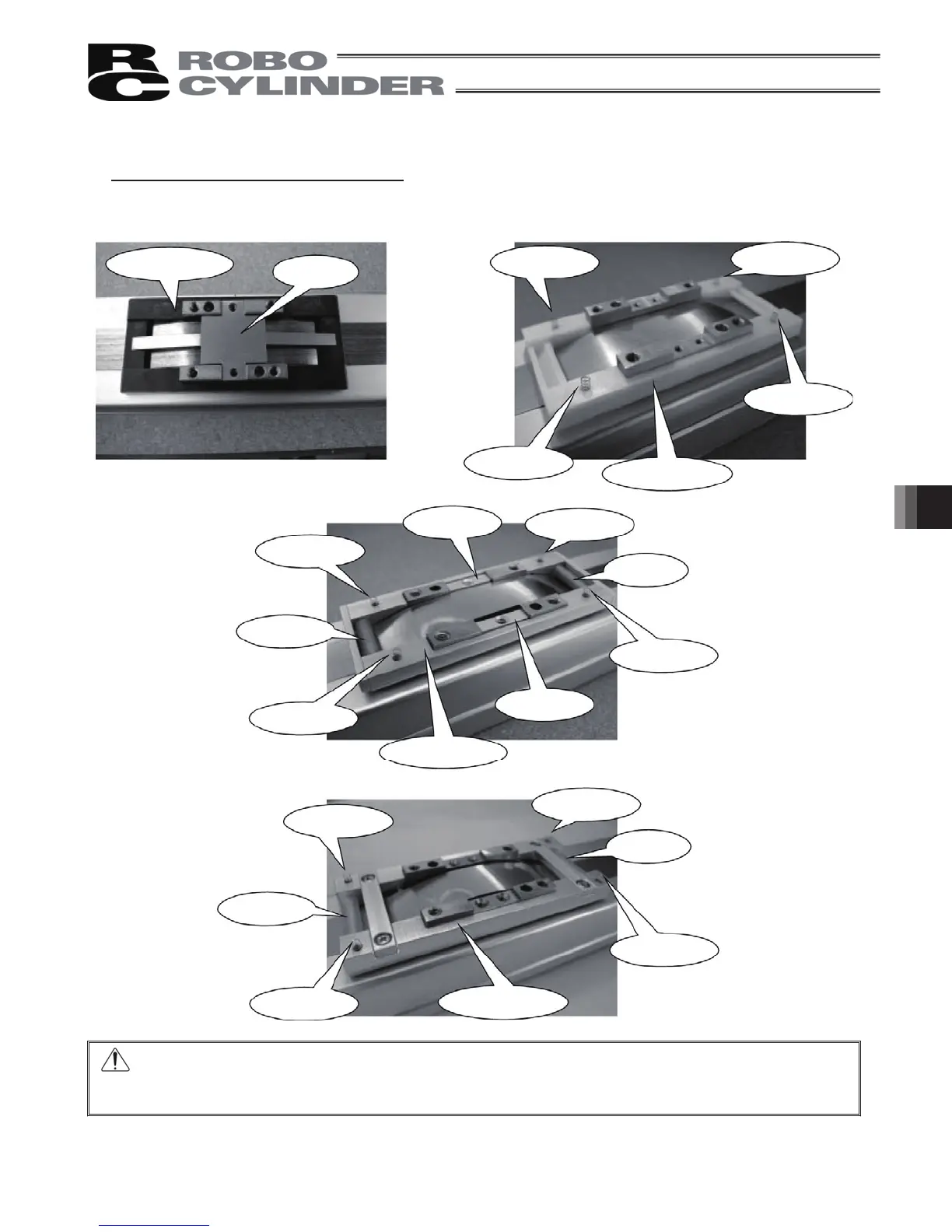

[1] Standard specification (slider structure)
• SA5C/SA6C • SA7C/SS7C/SS8C/HS8C
[2] Cleanroom specification (Slider roller specification (optional) (roller structure)
• SA5C/SA6C
• SA7C/SS7C/SS8C/HS8C
Caution: Remove the slider covers slowly and gently. If the actuator is installed on the ceiling or
oriented vertically or horizontally on its side, place a plastic bag, etc., underneath the slider
covers so as not to lose the coil springs and spacers in case they drop off.
Sheet slider
Coil spring
Coil spring
Coil spring
Coil spring
Spacer
Spacer
Roller
Roller
Sheet slider
Coil spring
Coil spring
Coil spring
Coil spring
Roller
Roller
Sheet slider
Sheet slider
Plate spring
Coil spring
Coil spring
Coil spring
Coil spring
