60
9. Maintenance and Inspection
Peripheral
openings
Center
openings
Install the clearance-checking
tool instead of the slider covers.

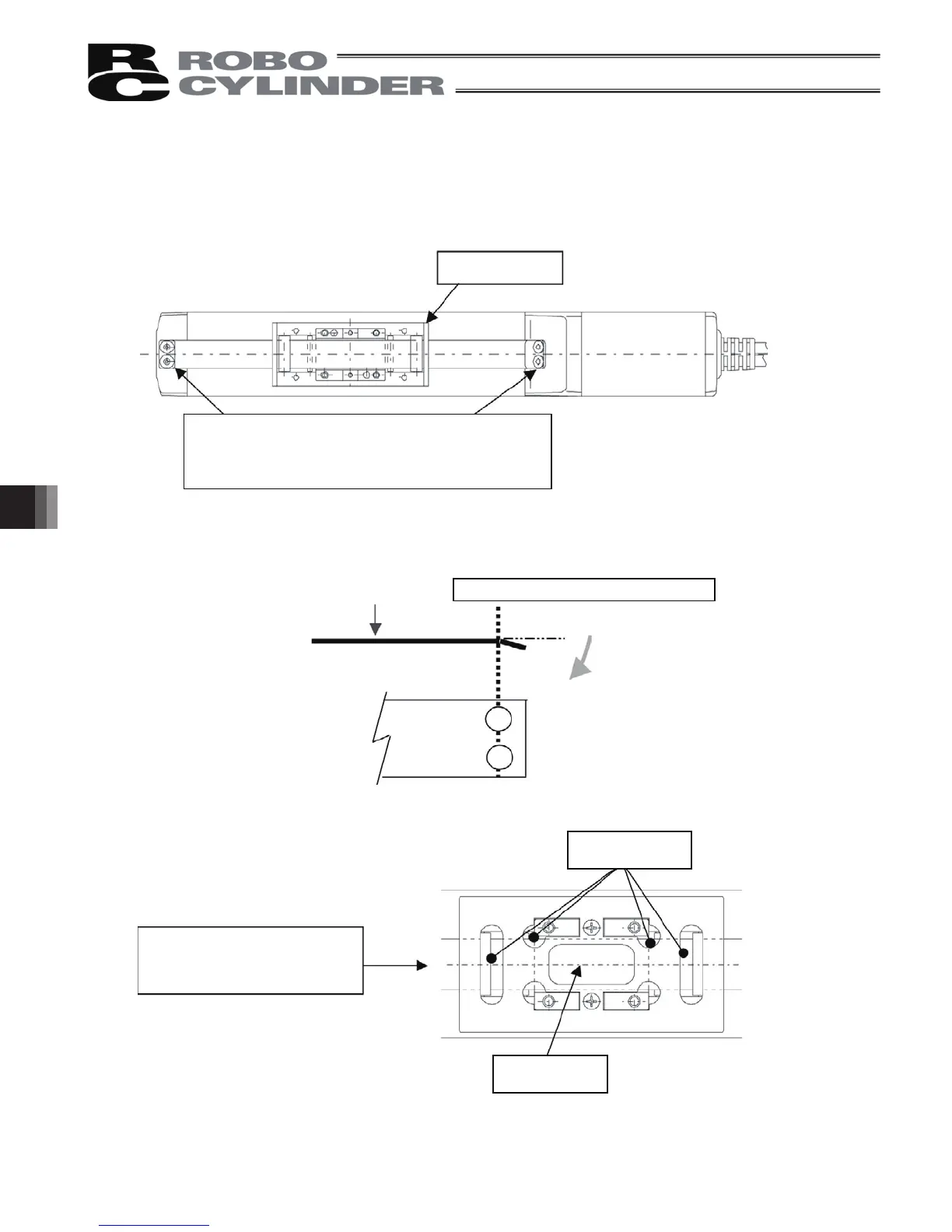

2) Remove the stainless-sheet retainer screws on both sides and pull out the stainless sheet.
3) Guide a new stainless sheet into the slider.
4) Hold the stainless sheet in place, and affix the retainer plates and screws.
At this time, securely tighten the screws only on the motor side, and leave the screws on the counter-motor
side loose.
ƔHow to prevent the stainless sheet from lifting (SA5C/SA6C/SA7C)
Slightly bend the stainless sheet downward near the center of the mounting holes so that the sheet can be held
securely.
5) Install the clearance-checking tool.
Stainless sheet
Near the center of the mounting holes
Slightly bend the sheet
downward.
Sheet slider
Stainless-sheet retainer plates and screws
Securely tighten the screws only on the motor side,
and leave the screws on the counter-motor side
loose.
To Next Page
