9. Maintenance and Inspection
ƔSA7R
[Items Required for Replacement]
• Replacement reduction belt • Allen wrench set
• Tension gauge (Capable of tensioning to 8kgf or greater)
• Strong string, looped (or long tie-band)
[Procedure]

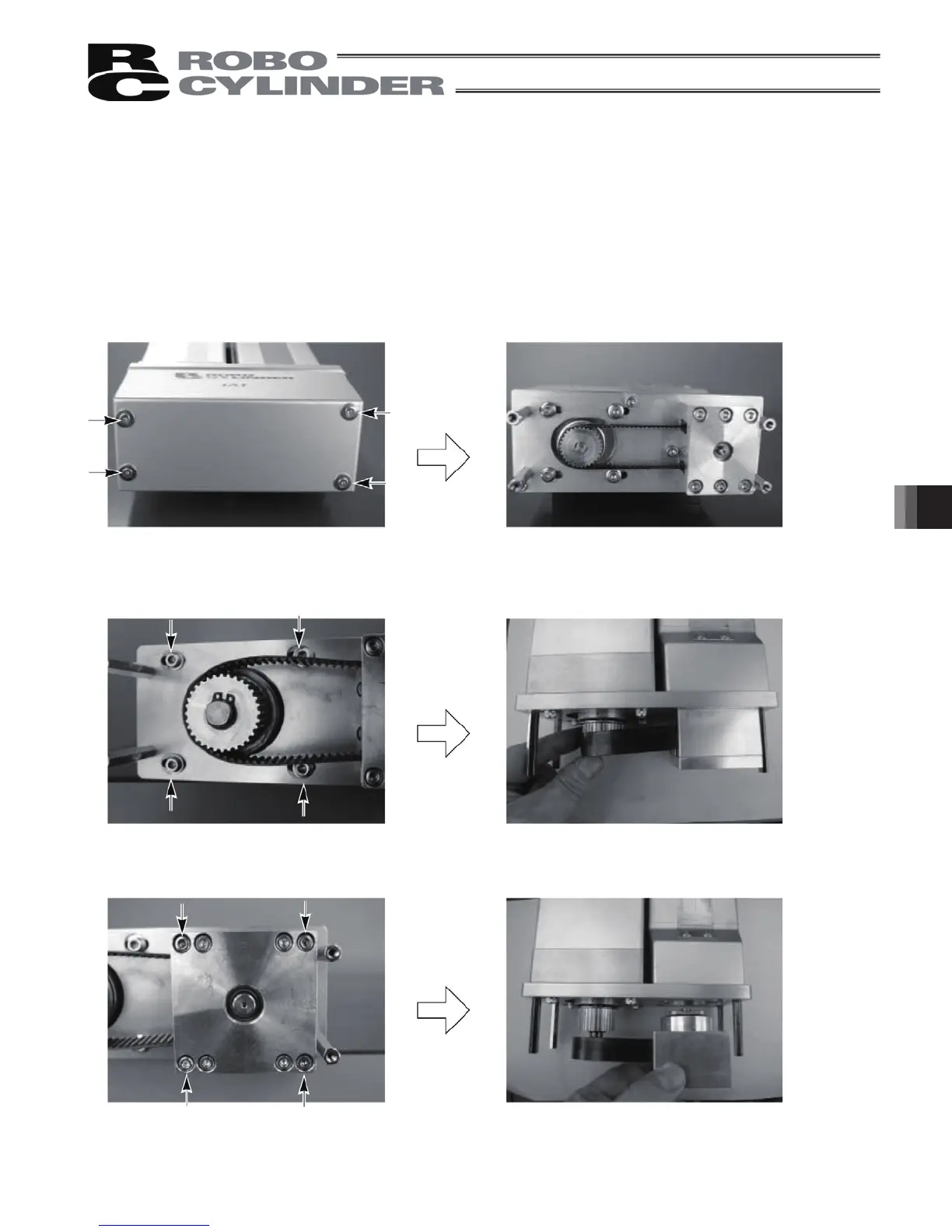

1) Remove the pulley cover.
Remove the four affixing thin-head screws using an Allen wrench of 1.5 mm across flats.
2) Loosen the four tension adjusting bolts to loosen
the belt.
(Use an Allen wrench of 3 mm across flats.)
4) Remove the pulley assembly.
䈄
Remove the four affixing bolts using an Allen
wrench of 2.5 mm across flats.
䈄
Pull out the assembly by hand.
3) Remove the belt from the pulleys.
To Next Page
