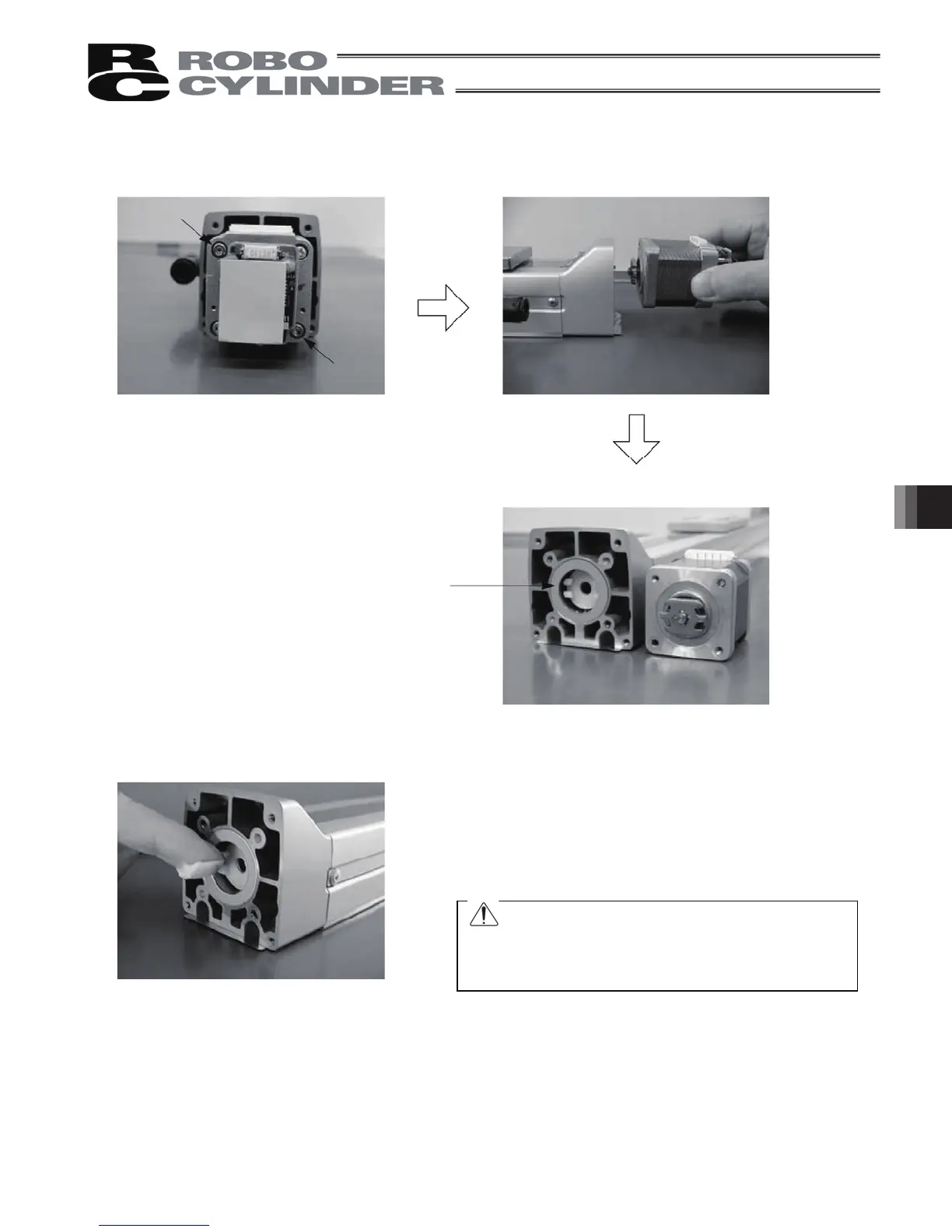

9. Maintenance and Inspection
6) Apply grease to the coupling on the actuator side.
Pilot alignment metal
If this metal is attached on the
decoupled motor, put it back to the
pilot on the actuator side.
Kyodo Yushi’s Multemp LRL3 has been
applied before shipment.
5) Remove the motor.
䈄
Remove the affixing bolts (M3 × 50, 2 pcs.) using an
Allen wrench of 2.5 mm across flats.
• Pull out the motor by hand.
• Decoupled motor
Warning: Never use any fluorine-based
grease.It will chemically react with
lithium-based grease and damage the
actuator.
To Next Page
