88
9. Maintenance and Inspection
SS8C, HS8C

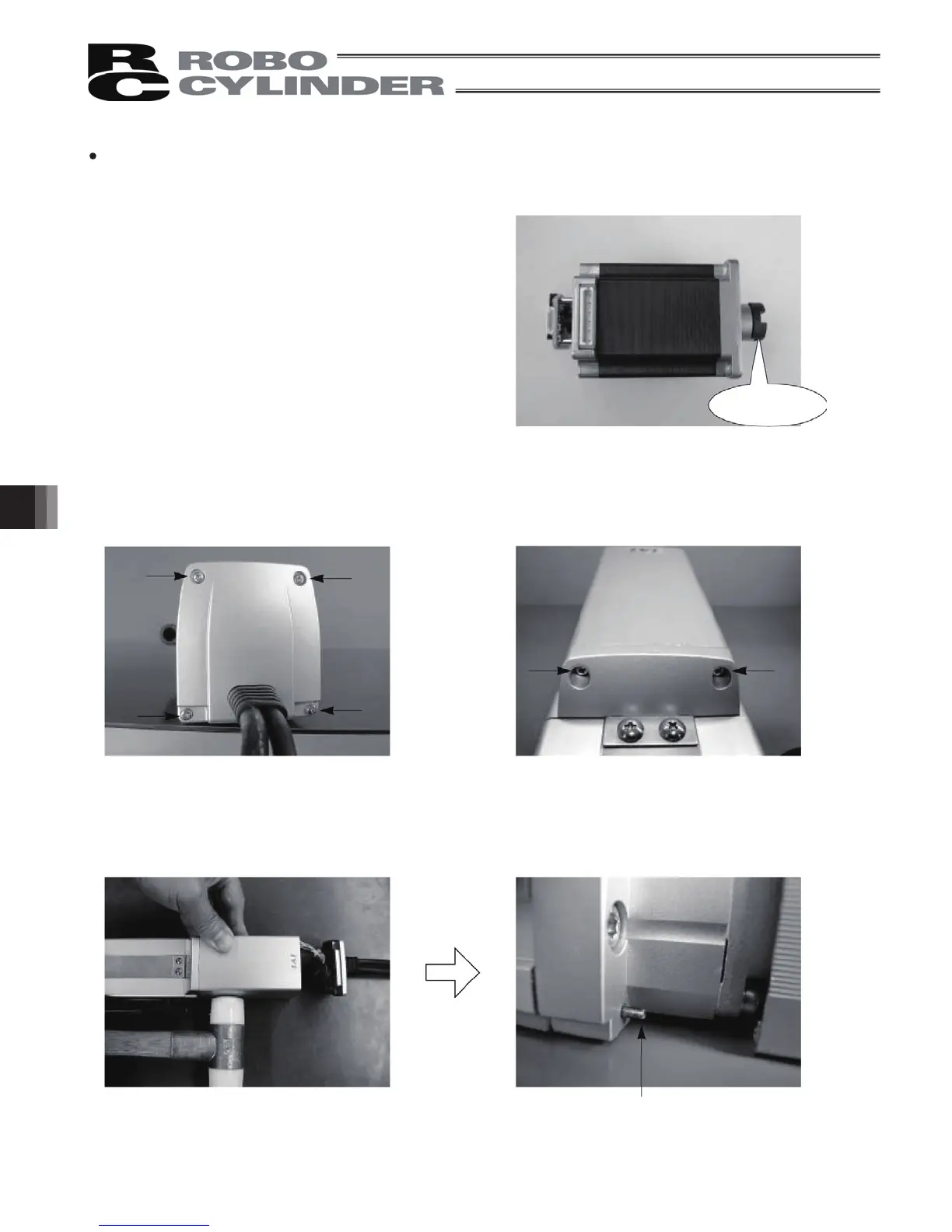

[Items Required for Replacement]
• Replacement motor M-P2SS8C-IAP56N-MB-CO (for SS8C), M-P2HS8C-IAP56N-MB-CO (for HS8C)
(with a coupling on the motor shaft; see the
photograph right.)
• Allen wrench set • Phillips screwdriver
• Plastic hammer
[Procedure]
3) Remove the motor cover.
The motor cover is engaged with a positioning pin. If the cover does not come off easily, use a plastic hammer
to gently tap the motor cover from the side, and pull out the cover.
1) Remove the pan-head screws (M3 × 10,
4 pcs.) affixing the motor-end cap.
2) Remove the pan-head screws (M3 × 10,
2 pcs.) affixing the motor cover.
Coupling
Positioning pin
To Next Page
