6) Adjust the tension of the stainless sheet.
[1] While looking through the center opening in the clearance-checking tool, move the stainless sheet on
the loose end in the directions of arrows until the clearance between the top face of the stainless sheet
and the back of the clearance-checking tool falls within the specified range.
[2] When the stainless sheet has been properly positioned, tighten the screws on the loose end to a level
that the stainless sheet no longer moves.
0.5
1.0 mm

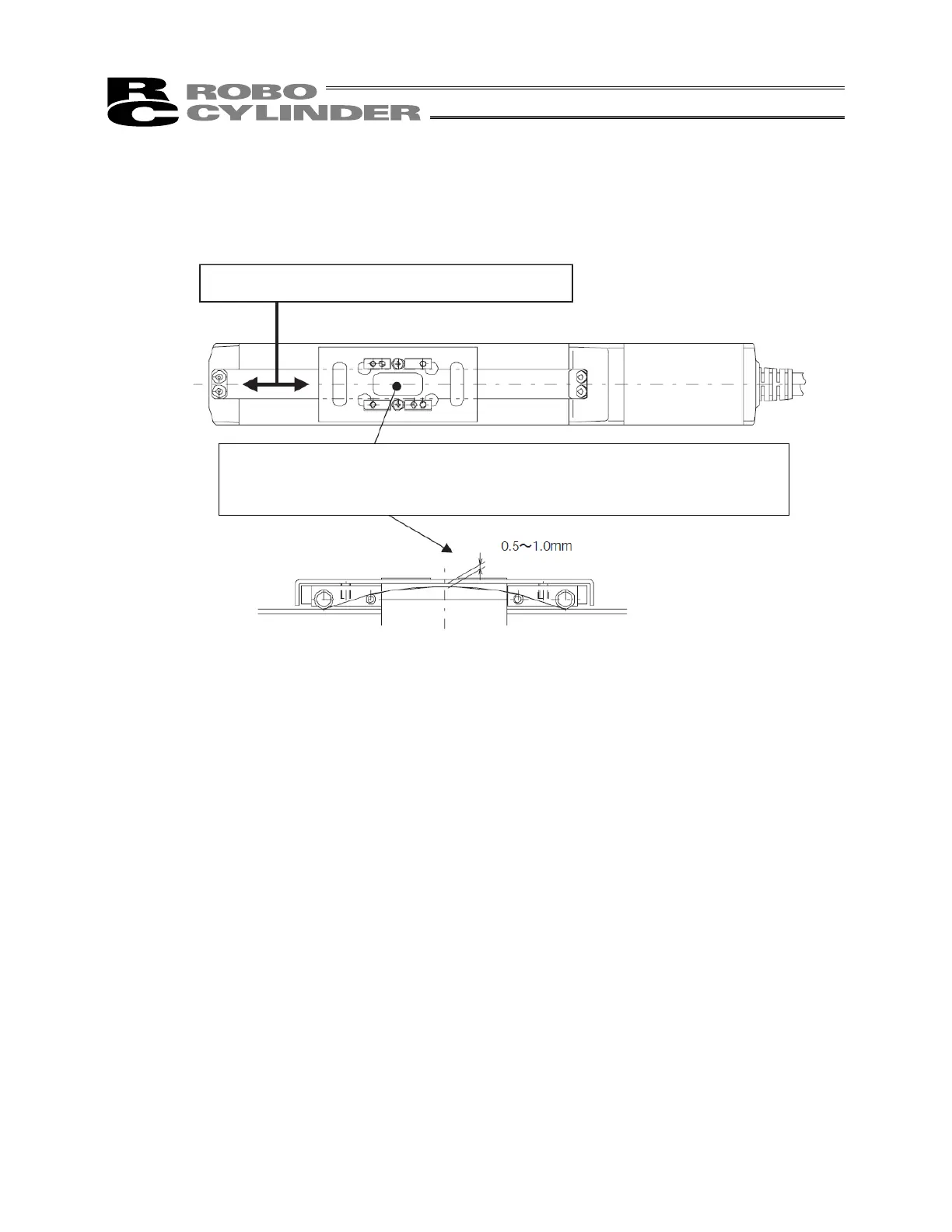

Move the stainless sheet in the directions of arrows
to adjust the tension.
While looking through the center opening, check the clearance between the top
face of the stainless sheet and the back of the clearance-checking tool. (If the
clearance is within the specified tolerance range, the tension is appropriate even
when the clearance varies along the entire stroke or between right and left.)
