53
Affixing bolts on motor-end
cap (Cross recessed screws).
Affixing bolts at attached cable
end (Cross recessed screws)
[Procedure]

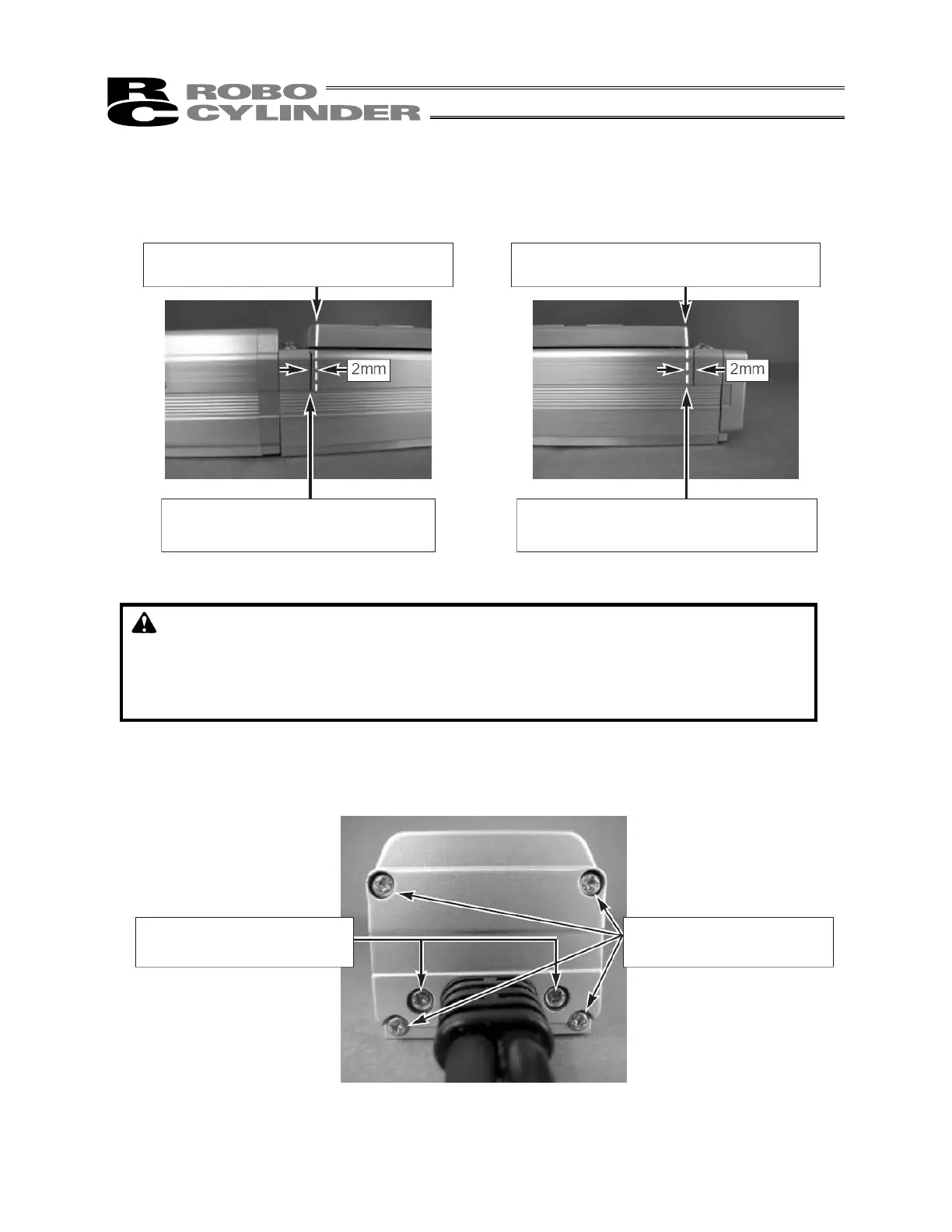

1) Move the slider to a position where Z phase turns on (home position).
On both standard actuators and actuators whose home is set on the opposite side, this position
corresponds to 2 mm from the mechanical end.
Warning: If the actuator is installed vertically, move it after turning on the controller power
and forcibly releasing the brake. At this time, beware of danger as the actuator
may drop suddenly.
Always provide a support to brace the actuator hand to prevent sudden drop, so
as not to pinch fingers or damage the load.
2) Use a Phillips screwdriver to securely tighten the affixing bolts for motor-end cap and attached cables.
Return the slider 2 mm from
the mechanical end.
Return the slider 2 mm from
the mechanical end.
Draw a countermark with the slider
contacting the mechanical end.
Draw a countermark with the slider
contacting the mechanical end on the
counter-motor side.
To Next Page
