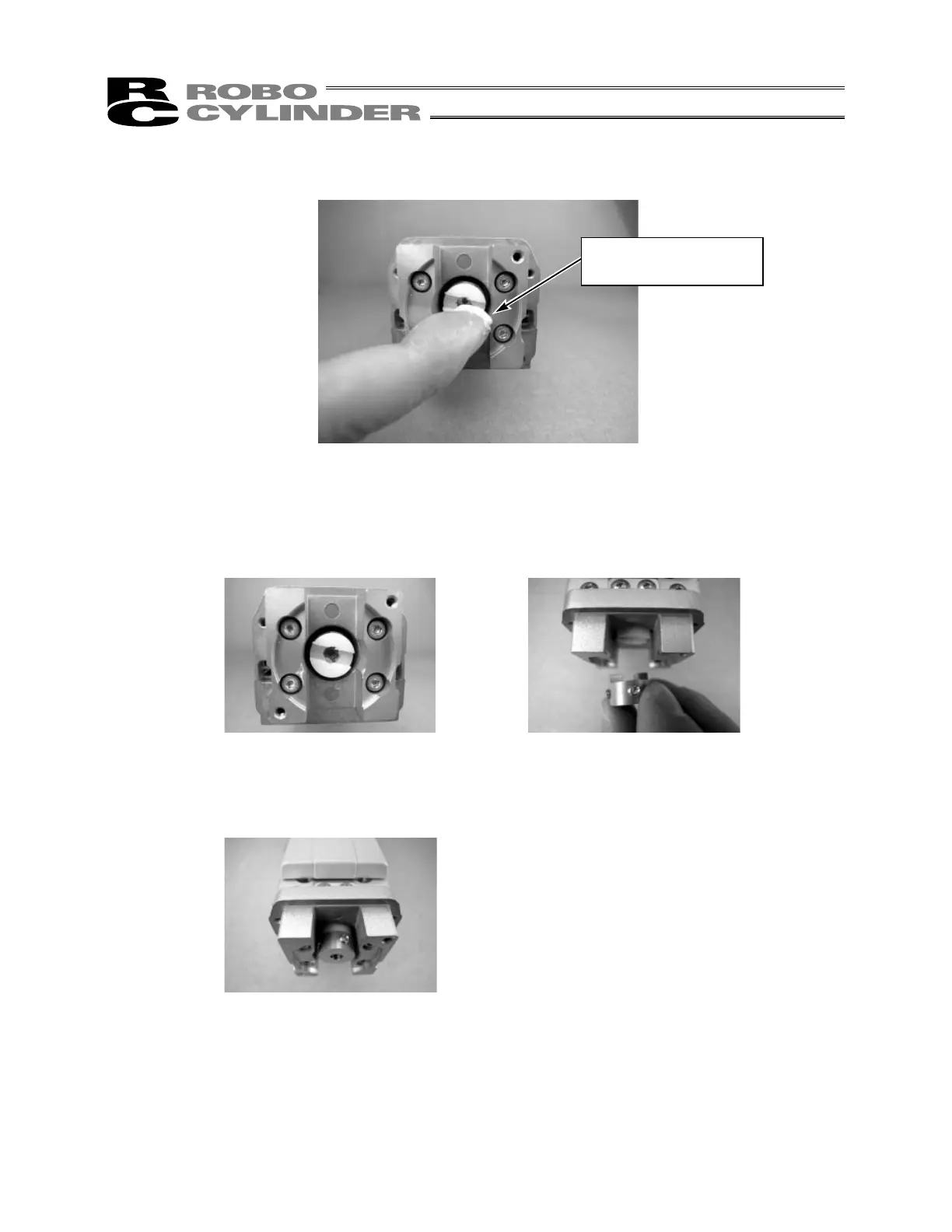

8) Apply grease on the actuator coupling.
9) Insert the replacement coupling (with screws) by aligning it with the current orientation of the actuator
coupling.
Apply grease on the
inside of the coupling.
Coupling on actuator side
Inserting the coupling (with screws)
Inserted coupling (with screws)
