12) Tighten the screw on the coupling.
13) Slightly move the slider to expose the second screw on the coupling, and tighten the screw in the
same manner.

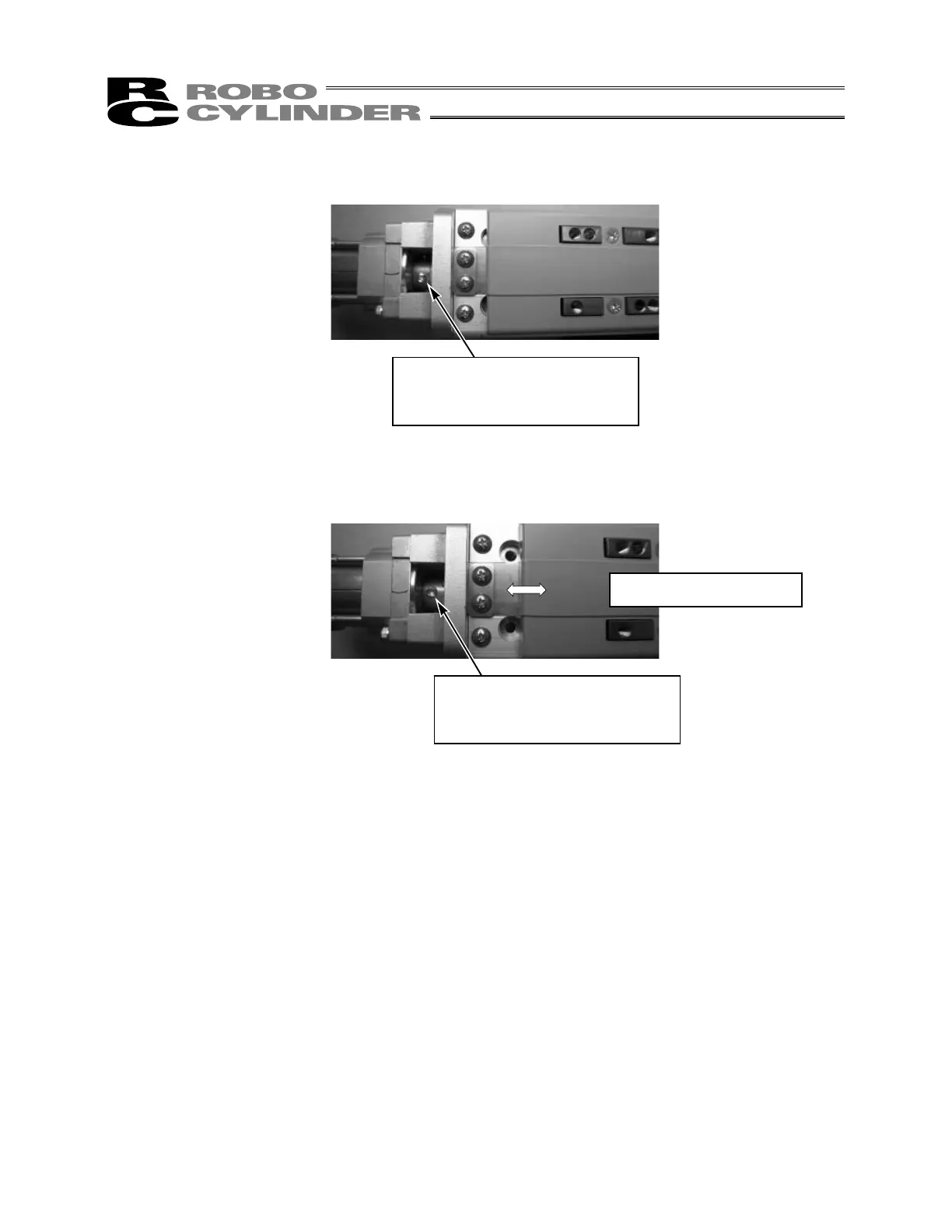

Tighten the screw on the
coupling using an Allen wrench
of 2.0 mm across flats.
Slightly move the slider.
Tighten the screw on the
coupling using an Allen wrench
of 2.0 mm across flats.
