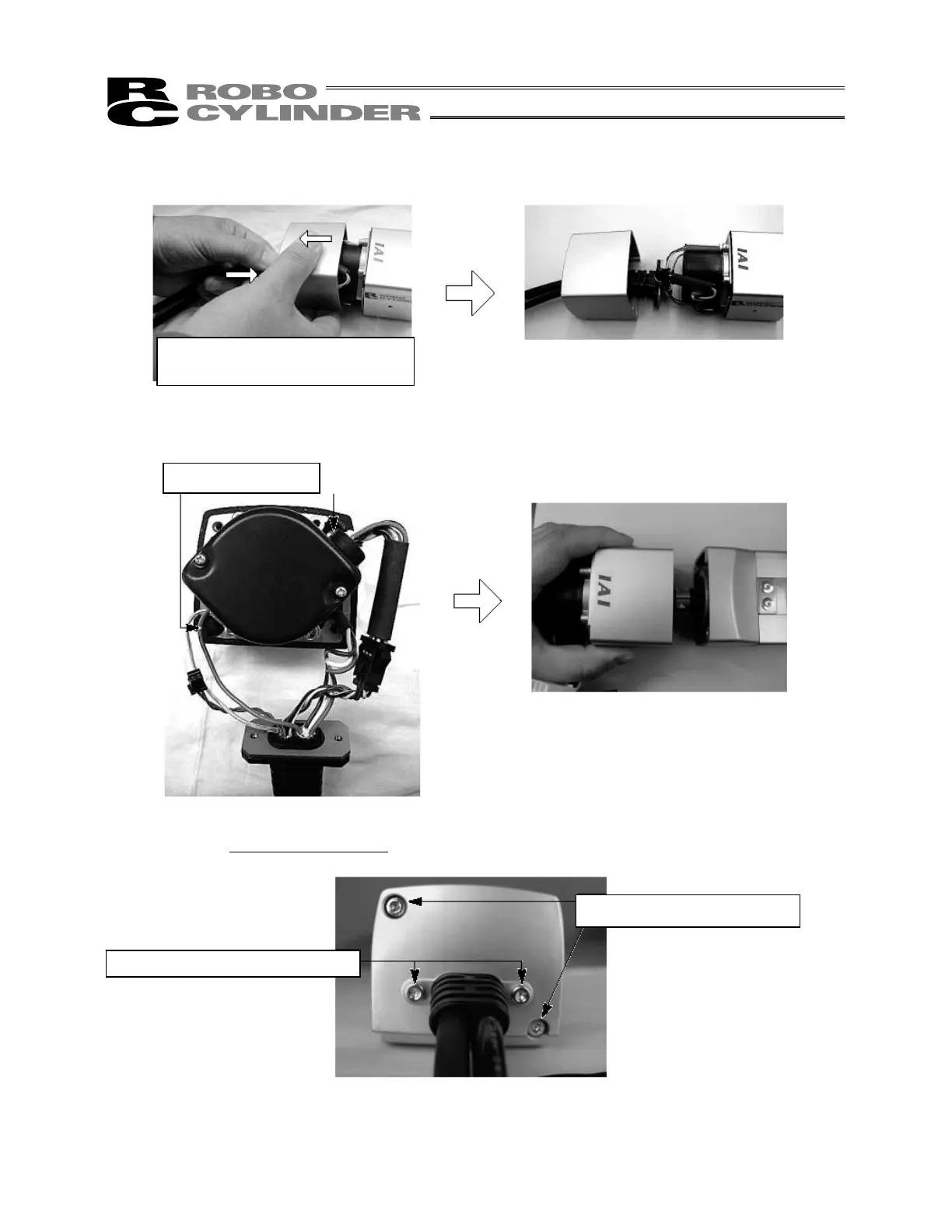

Affixing bolts on motor-end cap
Affixing bolts at attached cable end
Push in the cable end while pulling
out the motor-end cap.
Motor affixing bolt
3) Pull out the motor-end cap.
4) Remove the motor.
Remove the two motor affixing bolts using an Allen wrench of 3 mm across flats.
5) Using an Allen wrench of 2.5 mm across flats, remove the bolts affixing the end cap and attached
cables on the replacement motor unit
.
