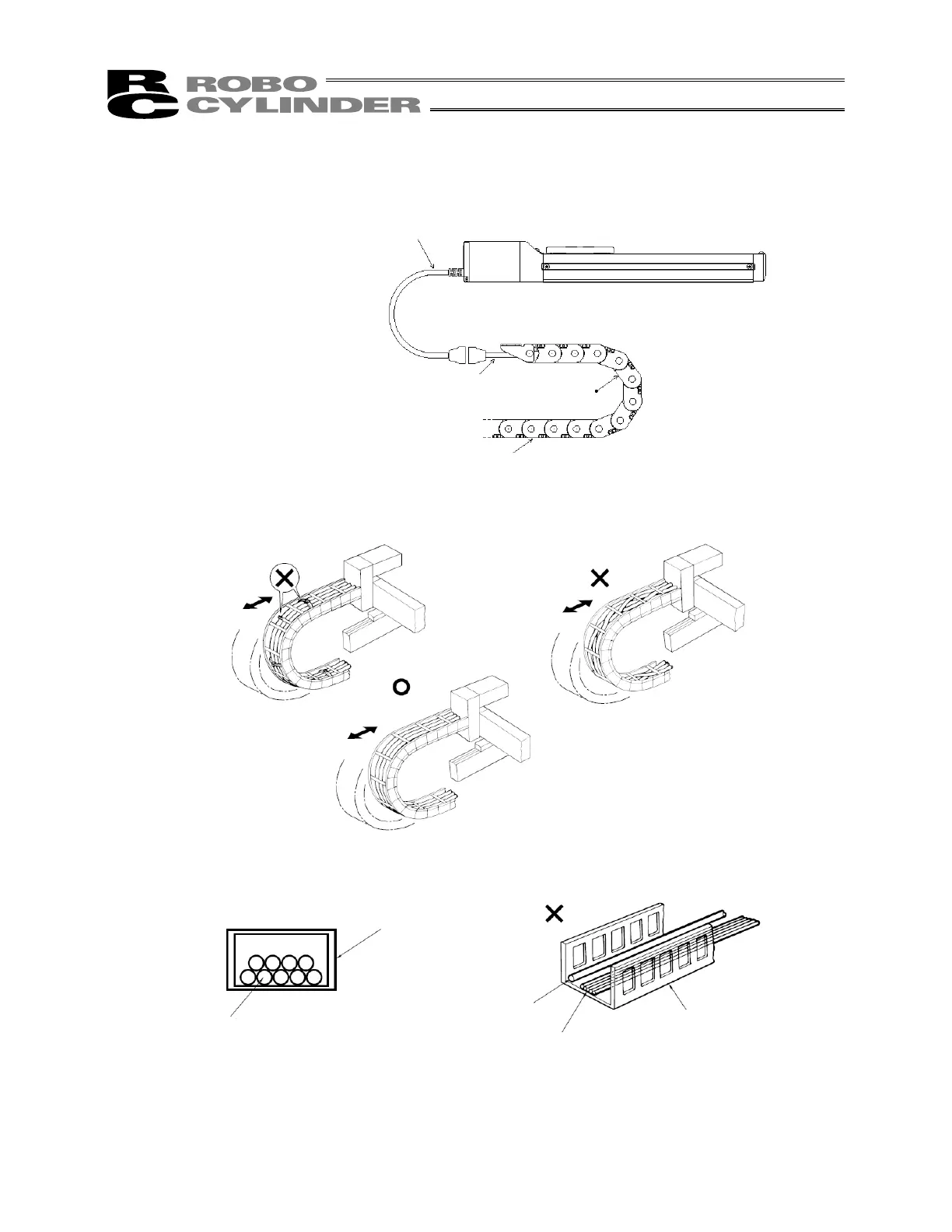

The supplied cables are not robot cables. Accordingly,
never store the cables in a cable track.
Always use a robot cable
for each relay cable.
Bending radius (r)
Use a cable track with a bending
radius (r) of 50 mm or greater.
Cable
Cable track
Power line
Signal lines (flat cable)
Duct
7. Notes on using cable tracks
Do not let the cable get tangled or kinked in a cable track or flexible tube. When bundling the cable,
keep a certain degree of flexibility (so that the cable will not become too taut when bent).
Do not cause the cables to occupy more than
60% of the space in the cable track.
Do not lay signal lines together with circuit lines
that create a strong electric field.
