71
Uniformly tighten the two hexagon
socket-head bolts (M3x8) using an
Allen wrench of 2.5 mm across flats.
Uniformly tighten the two hexagon socket-
head bolts (M3x50) using an Allen wrench
of 2.5 mm across flats.
Tightening torque: 83 N-cm (8.47 kgf-cm)

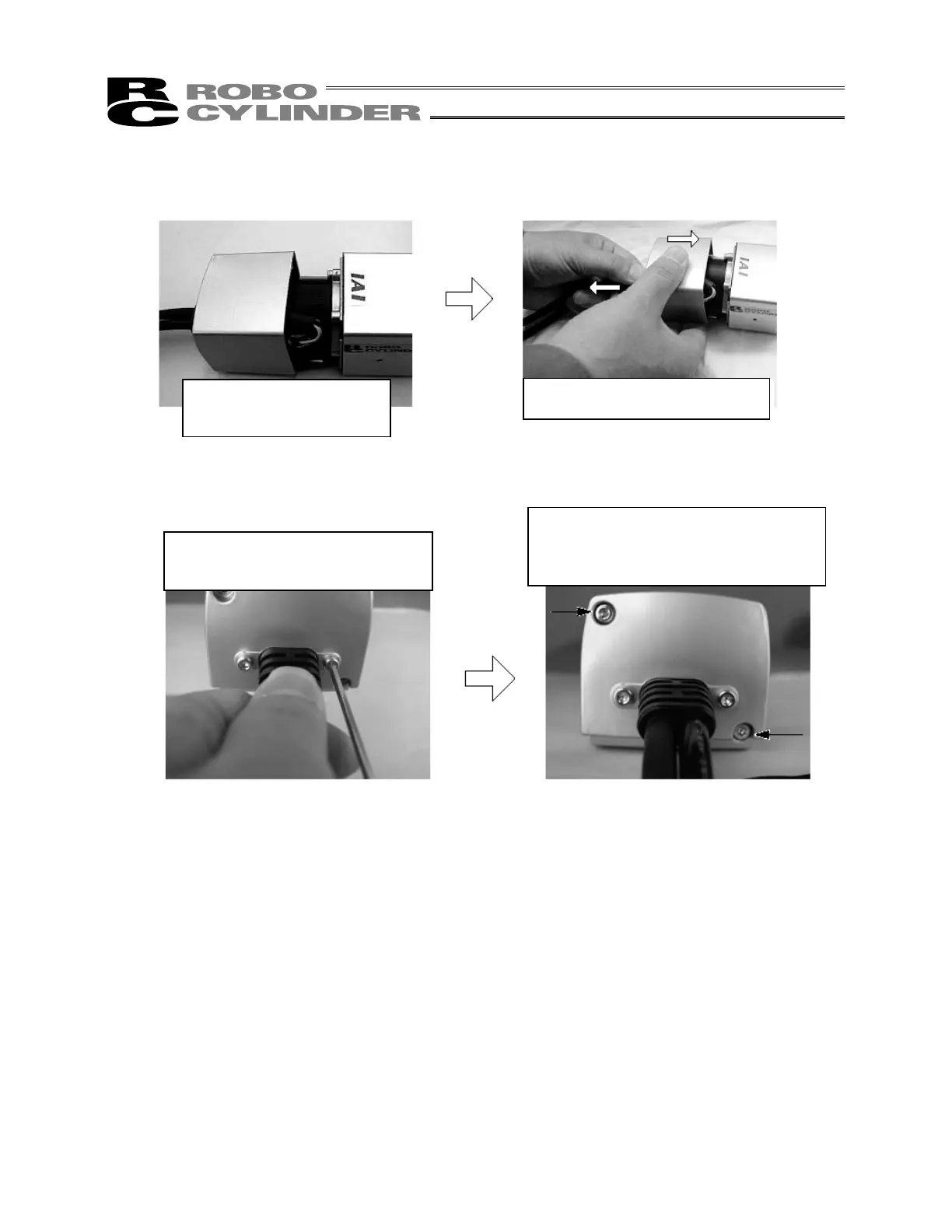

Carefully insert the motor-
end cap by making sure
cables are not pinched
Pull out the cable end while
pushing in the motor-end cap.
9) Install the motor-end cap.
Carefully push in the motor-end cap by making sure the cables are not pinched.
Tighten the bolts while securely
holding the cable end by hand.
Affix the motor-end cap.
To Next Page
