[Home Return Offset Distance (SCON) and Home Preset Value (SSEL and X-SEL) Correction Example]
If, after the motor replacement, the home position became deviated by 0.1 mm in the direction of moving
away from the mechanical end.
In this case, to align it with the initial home position when the SCON controller is being used, reduce the
home return offset distance
of parameter No. 22 by 0.1 mm. If the SSEL or the X-SEL controller is being
used, reduce the home preset value
of axis-specific parameter No. 12 by 0.1 mm.
(Change from 2 mm to 1.9 mm.)

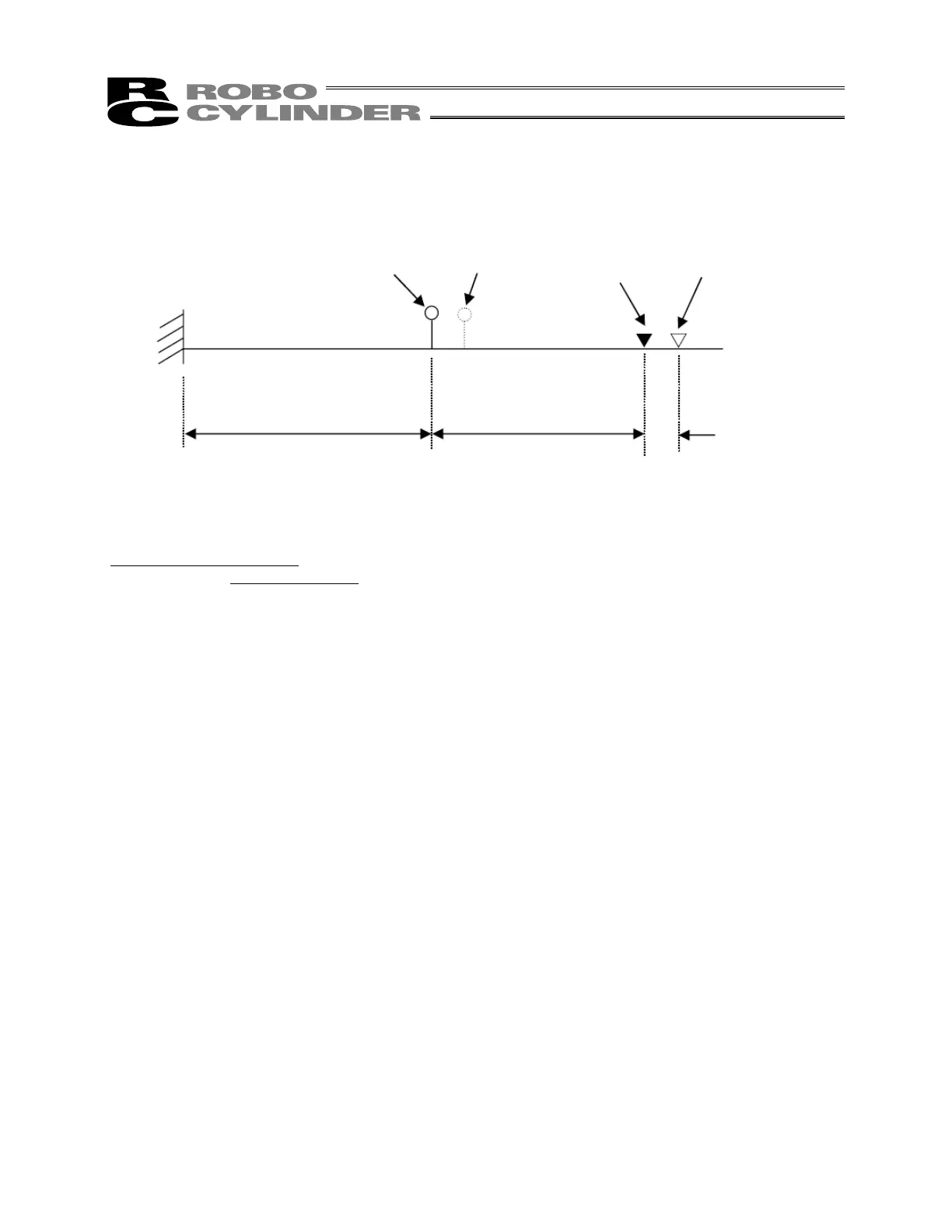

Initial phase Z
Mechanical end
Distance from mechanical end to
phase Z
Home return offset distance
(SCON)
Home preset value (SSEL
or X-SEL)
Deviation: 0.1 mm
3 mm
[Setting at shipping inspection]
Phase Z after
motor replacement
Initial home
Home after motor
replacement
2 mm
[Setting at shipping inspection]
