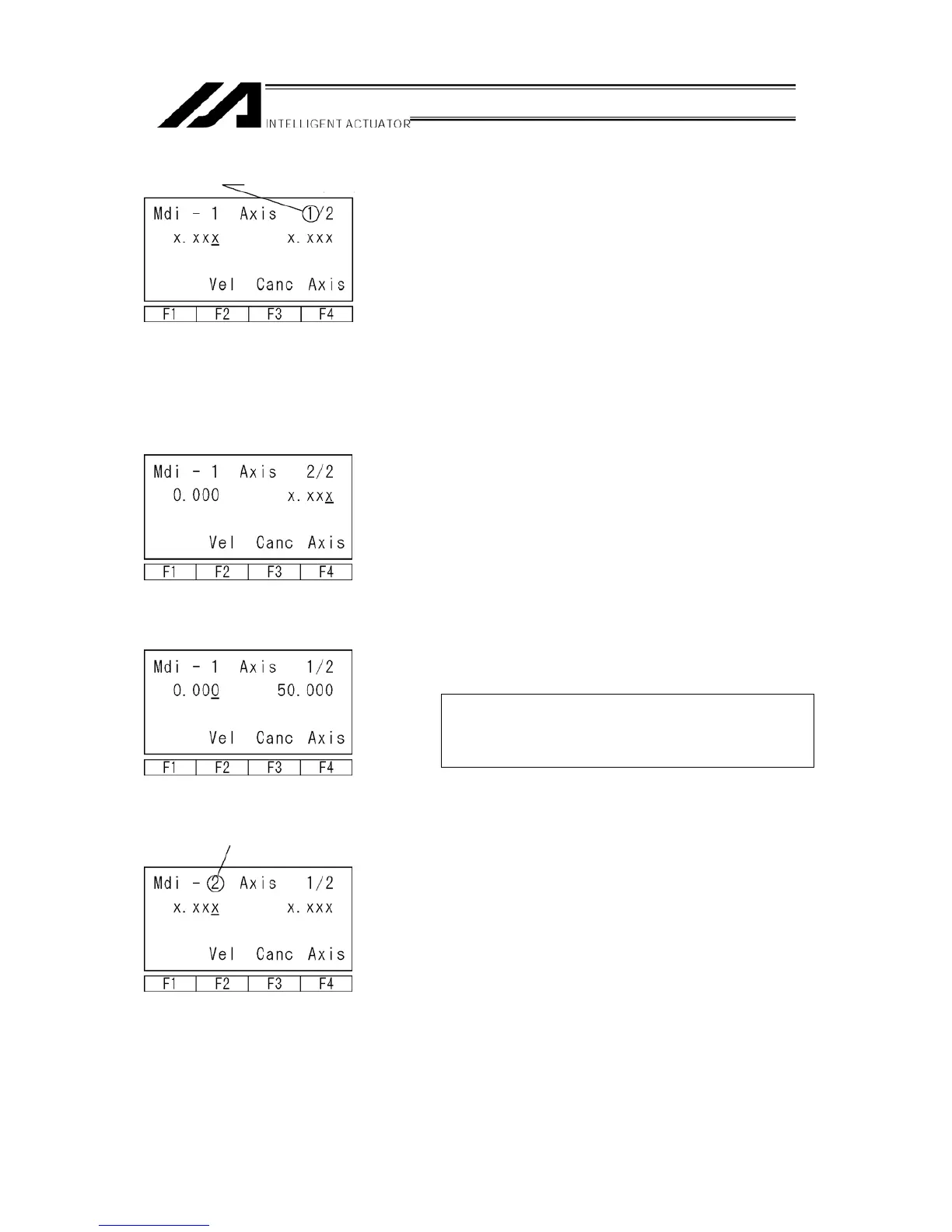

① Data input for the first point
Input 0 (number) and press the return key, 0.000 will
be displayed and then the axis No. changes to 2 and
the cursor position moves to the second axis position
data.
* Position data can be input as 7 digit real having 3 decimal places. This is the maximum
amount and range is different by actuator type, so, please check the catalogs.
Input 50 at the second axis position data and press
return key. (*Every press of return key, the cursor
position moves. When you miss input, place the
cursor to the miss input position and write over.)
Also you can return the input data to x.xxx with the
F3 (Canc) key.
Transmit the data with the WRT key, position No.
forwards 1 and becomes 2.
* If you change the screen with the PAGE UP ·
PAGE DOWN or ESC keys before transmitting
the data, the input data will be invalid.
② Data input for the second point
Input 50 on the first axis position data and press
return key.
