13. Symbol Edit
Symbol (Names) can be applied to variables, input ports, flags, points, etc., in X-SEL controller.
Select the F1 (Edit) key.
Select the F3 (Sym) key.
13-1. Symbol Edit Items

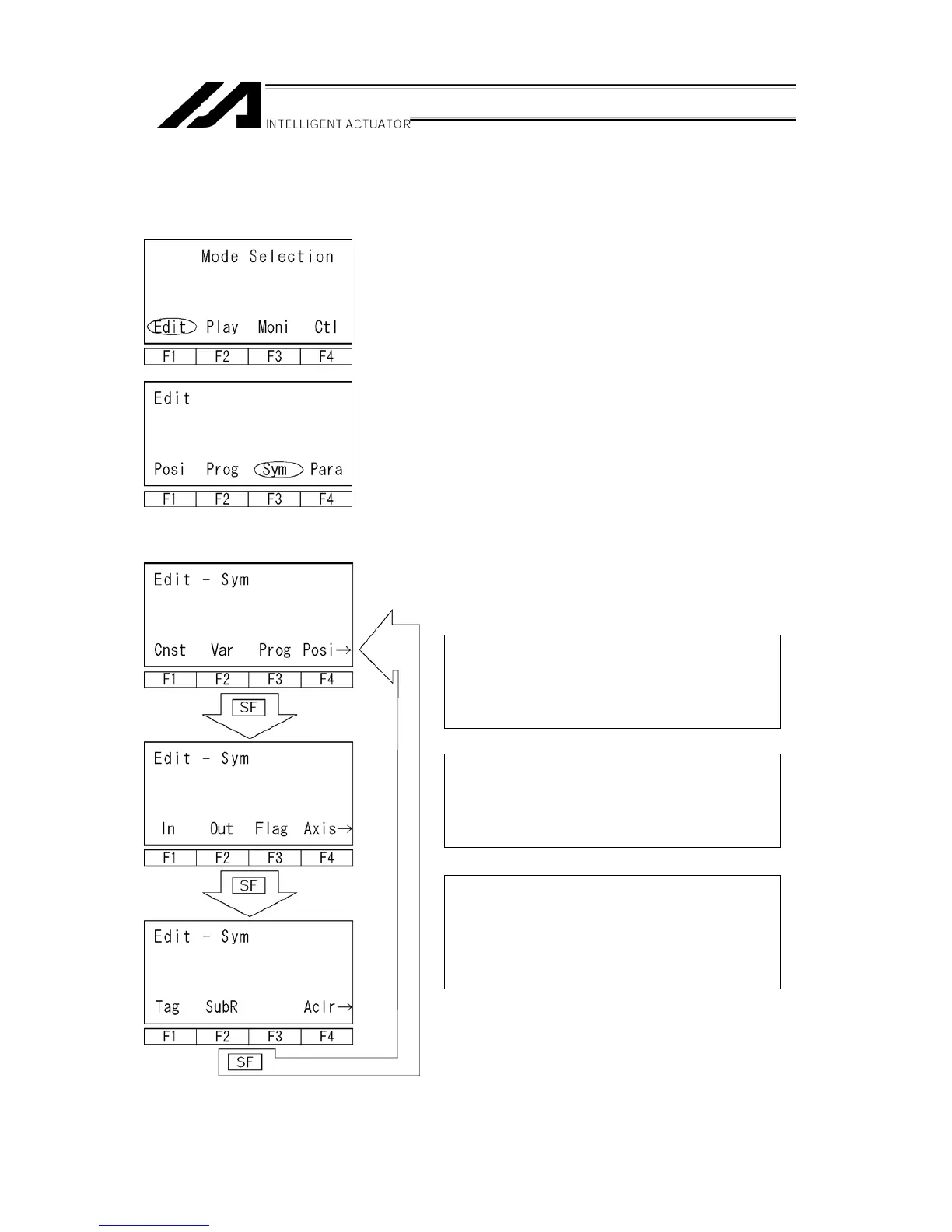

Symbolized items will be displayed in the function
key area. Each time by pressing SF key, items are
shifted and displayed.
Symbol Edit Items
Cnst: Constant number
Var: Variable
Prog: Program No.
Posi: Position No.
In: Input port No.
Out: Output port No.
Flag: Flag No.
Axis: Axis No.
Tag: Tag No.
SubR: Subroutine No.
Aclr: All clear
Clear all the symbol data.
Display the list of items to symbolize by using the
SF(shift) key and select with the function keys.
