9.
Simple Operation Procedure

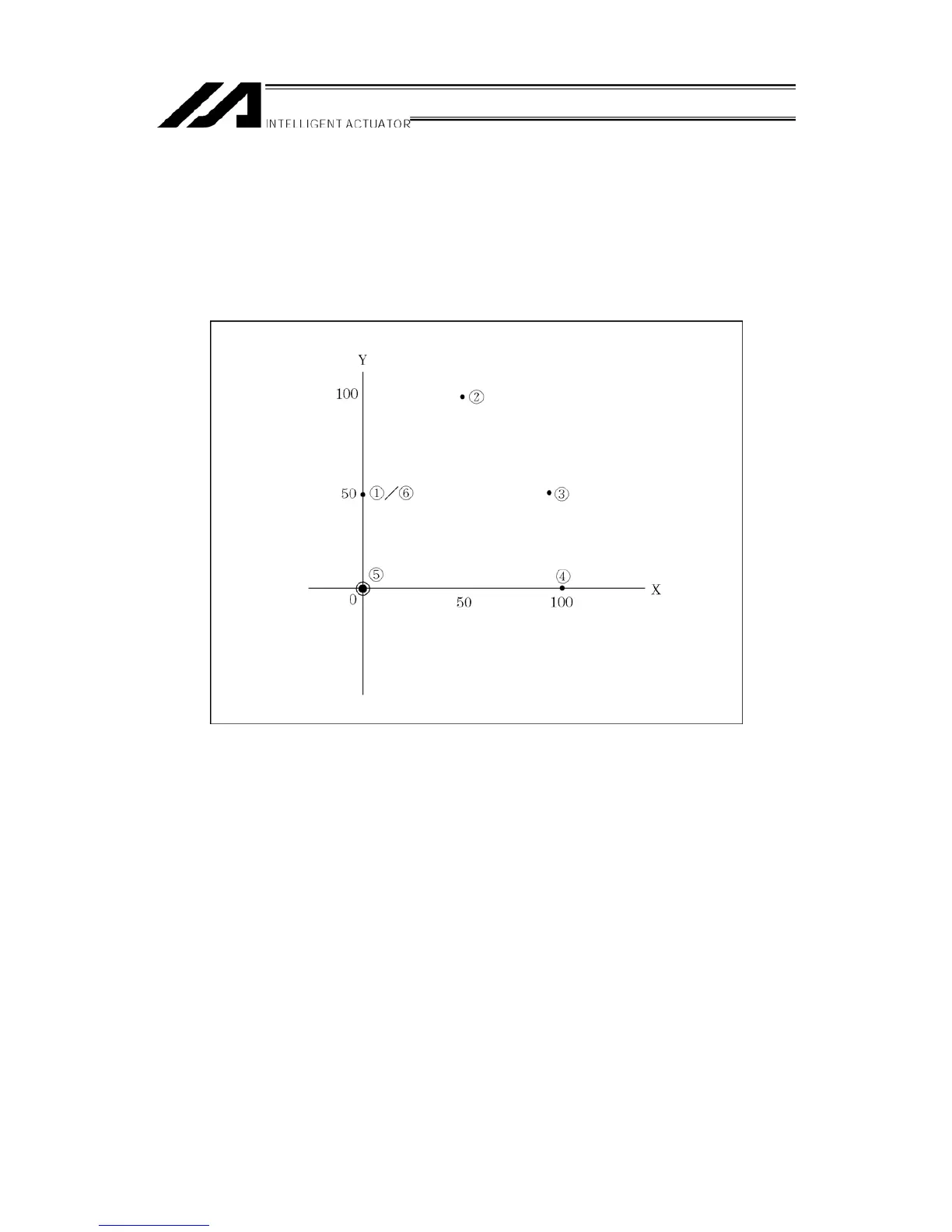

Here, the program and position data to draw a simple “pentagon” p
assing through the following 6
points (
①
and
⑥
are same position) by the actuat
or of 2 axe
s (X, Y) are created.
