a. Open the top of the 2145 UPS shipping carton. With the assistance of
another service representative, grip the flaps on either side of the 2145
UPS, as shown in Figure 84.
b. Slide the 2145 UPS to the end of the carton and rest its front edge on the
edge of the carton, as shown in Figure 85.
c. Remove the two bolts
1
and additional nut
2
on the left side of the
bracket, as shown in Figure 86 on page 125. Next, remove the battery
retaining bracket
3
.

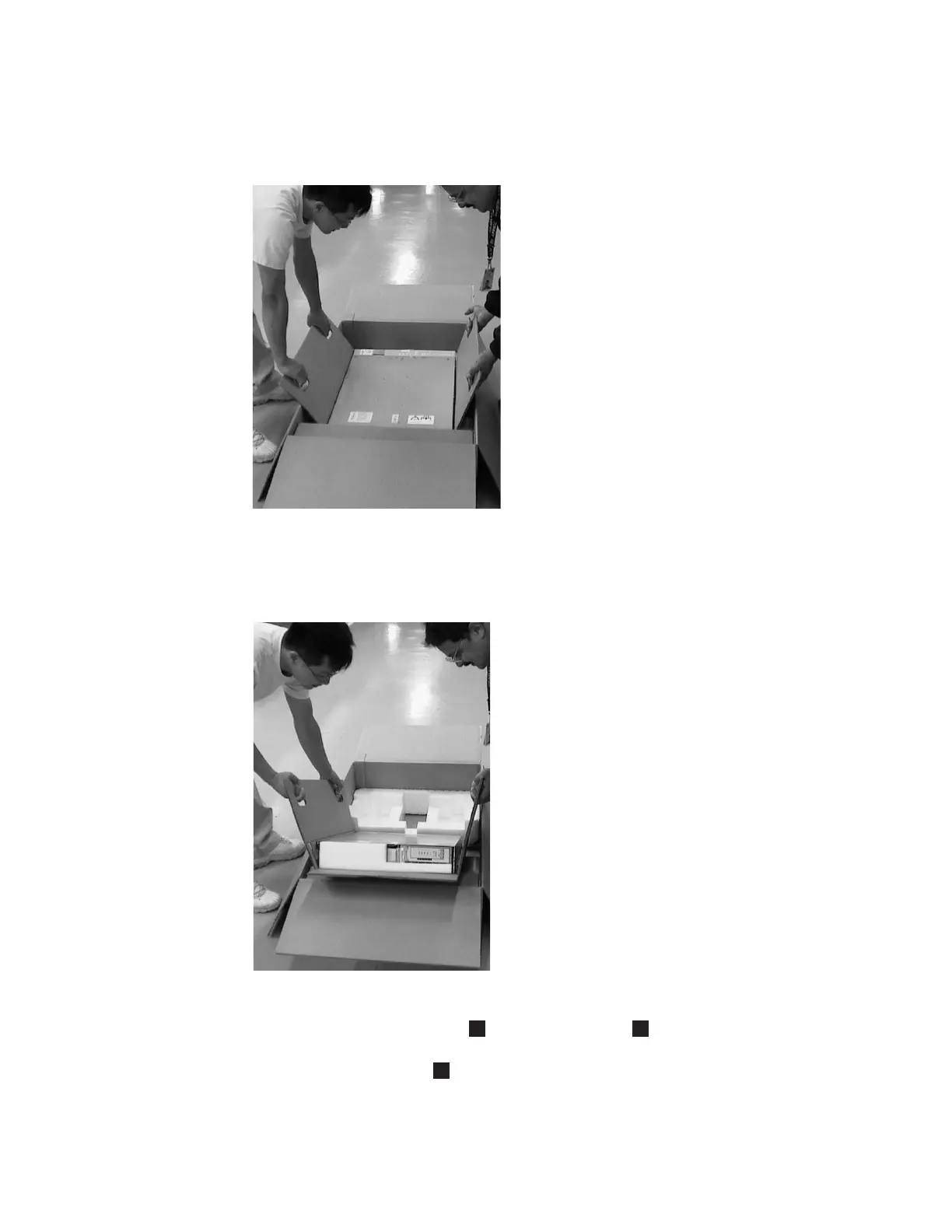

Figure 84. Opening the top of the 2145 UPS shipping carton
Figure 85. Sliding the 2145 UPS to the end of the carton.
124 IBM System Storage SAN Volume Controller: Hardware Installation Guide
