92 Chapter 7: Working with adapter cards and drives

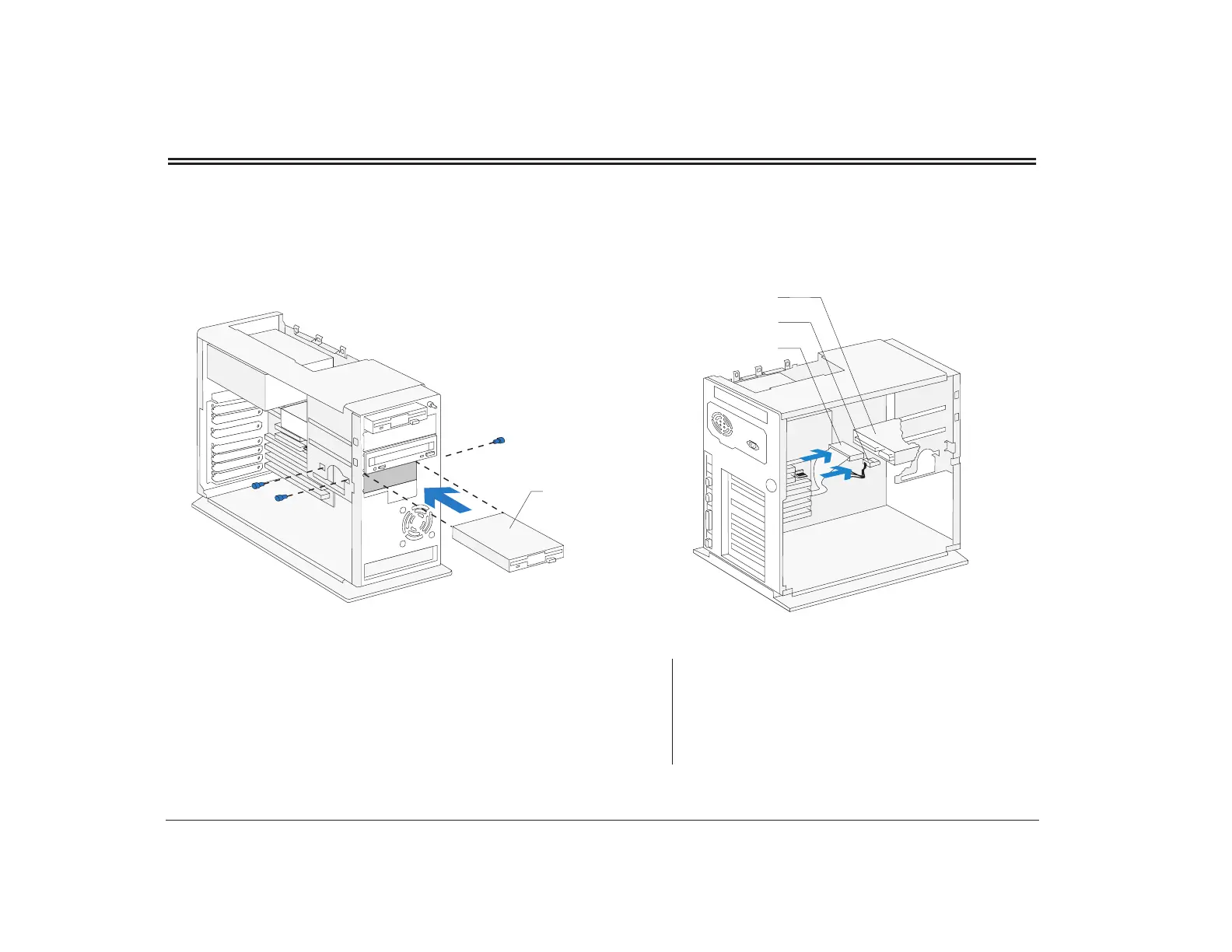

Installing a drive in bay 4
Bay 4 can hold up to a 3.5-inch half high drive, such as a diskette or tape drive.
1. Insert the drive into the bay. Align the screw holes
and insert the three screws.
Drive
(Front View)
2. Connect the power and signal cables to the
drive.
Note:
If you add a diskette drive or a tape drive that attaches to
the Diskette connector, make sure the signal cable you
plug into the drive is attached to the Diskette connector on
the system board. To identify the Diskette connector on the
system board, see “Identifying signal cable connectors” on
page 86.
Drive
Signal Cable
Power Cable
(Back View)
To Next Page
