94 Chapter 7: Working with adapter cards and drives
Installing a drive in bay 6
Bay 6 can hold a 3.5-inch slim hard disk.

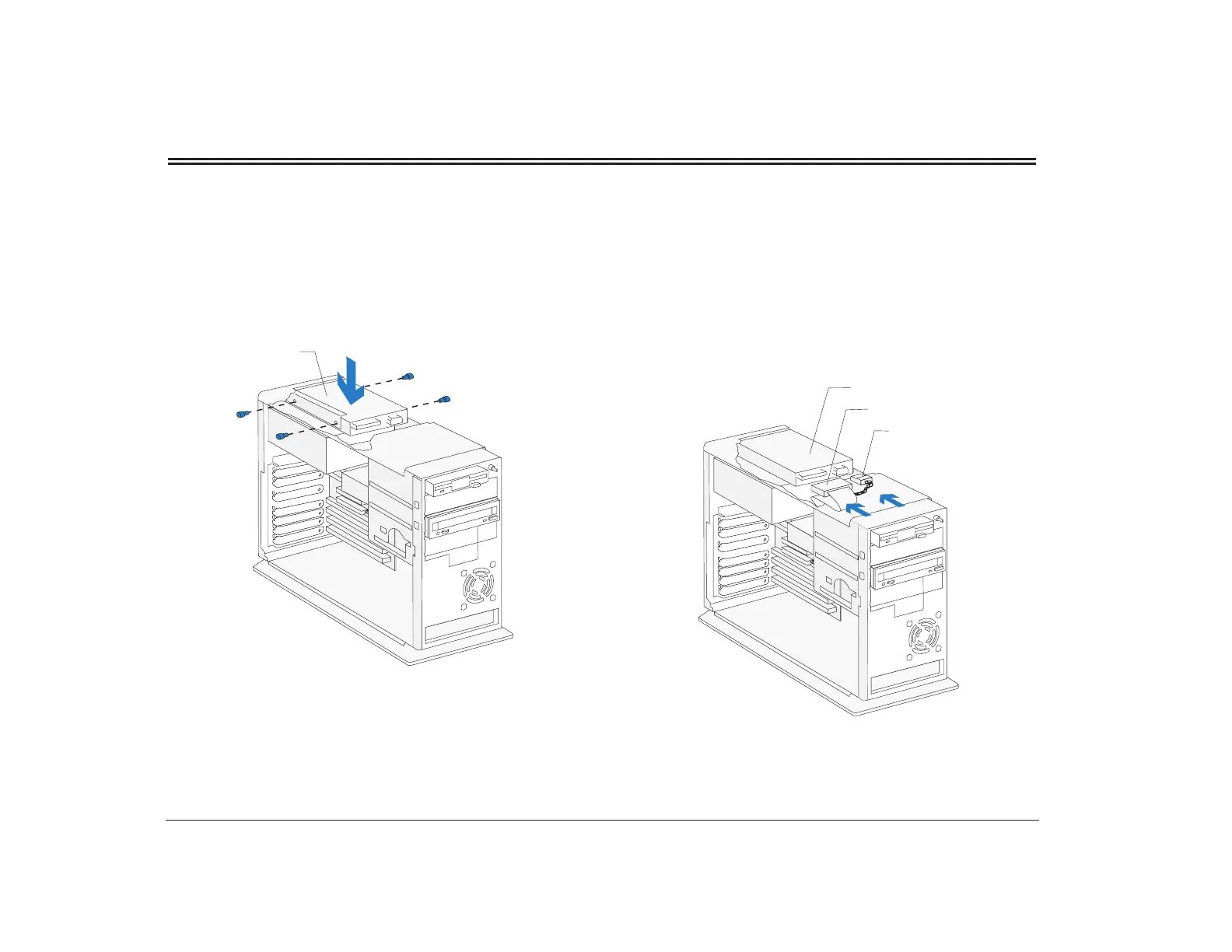

1. Insert the drive into the bay. Align the screw holes
and insert the four screws.
(Front View)
Hard Disk
2. Connect the power and signal cables. (To ensure
that your hard drive functions properly, read
“Guidelines for connecting IDE/ATA signal cables”
on page 87 before connecting the cables.)
Hard Disk
Power Cable
Signal Cable
To Next Page
