Adding and removing adapter cards 81

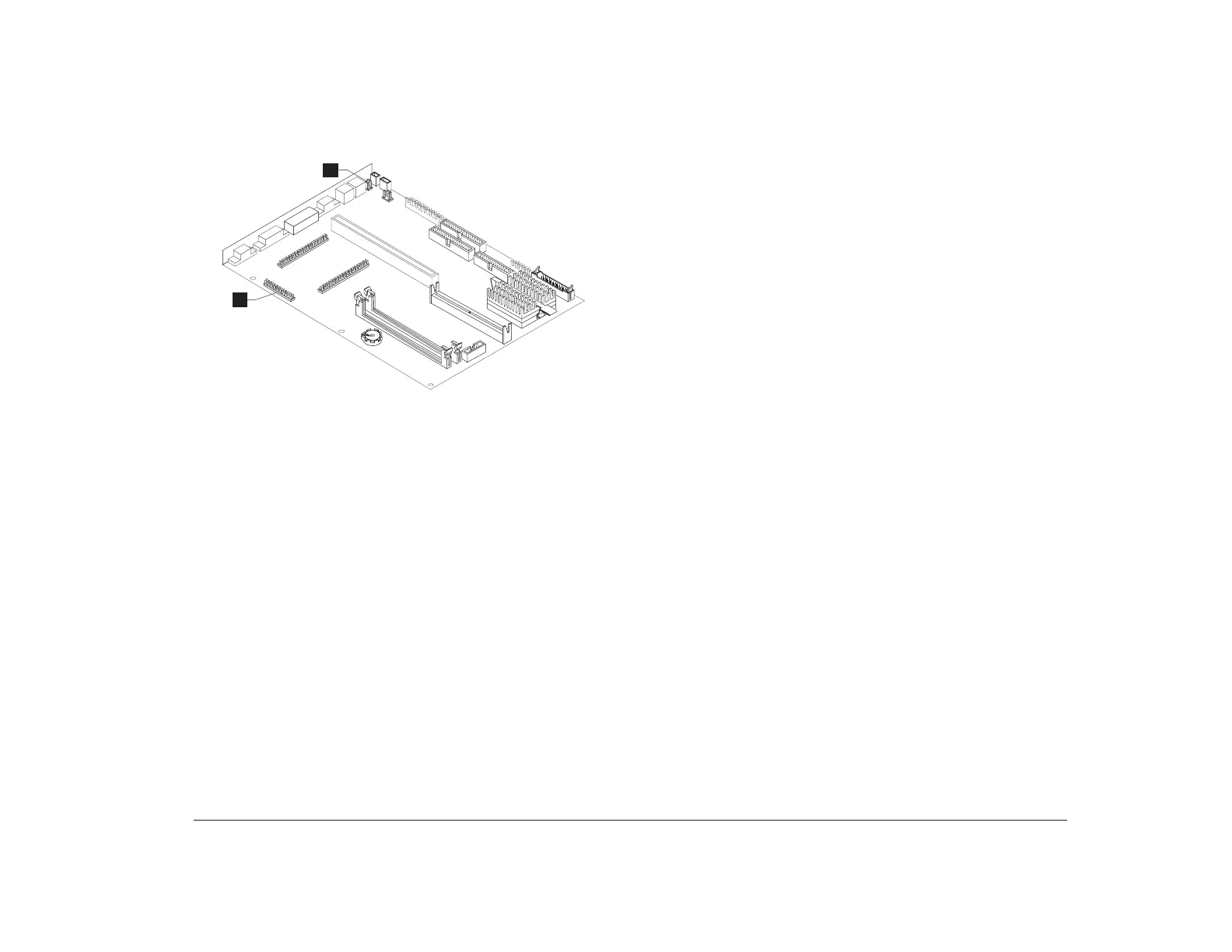

Use the following picture to identify card cable
connectors on your system board:
Note whether the location of the cable connector you
need to use is beneath the riser card. If it is, follow the
instructions in “If you need to remove the riser card” on
page 64 before you install the new adapter card.
1
2
Setting jumpers
When you install an adapter card, you might have to set
switches or move jumpers to make the card work
properly with any cards that are already installed. If you
install a Plug and Play (PnP) adapter card, however, you
typically do not have to change any switch or jumper
settings after you install it. The computer and the card
automatically work together to make sure the settings
are correct.
Refer to the documentation that came with the new
hardware to determine if you need to set any switches
or move any jumpers.
If you install a video adapter card, the built-in video
controller should be disabled automatically.
