IBM DS3500 Installation, User & Maintenance Guide

Table 11. Parts listing for DS3500
Index Description
CRU part
number
(Tier 1)
CRU part
number
(Tier 2)
FRU
part
number
1 DS3512 and EXP3512 bezel kit 69Y0203
2 Filler panel, 3.5–inch hard disk drive 42D3315
3 Hard disk drive varies
4 2U rail kit 39R6550
5 DS3512 and EXP3512 midplane 69Y0249
6 Controller or environmental service module
filler panel
69Y0194
7 Power supply, ac 69Y0201
8 6 GB SAS 2–port host port adapter 69Y2840
8 8 GB FC 4–port host port adapter 69Y2841
8 1 GB iSCSI 4–port host port adapter 69Y2842
9 Filler panel, host port adapter 39R6543
10 Controller with 1 GB DIMM, no host port
expansion adapter
68Y8481
DIMM, 2 GB cache memory 69Y2843
Backup battery module 69Y2844
IBM 1-meter mini-SAS cable 39R6530
IBM 3-meter mini-SAS cable 39R6532

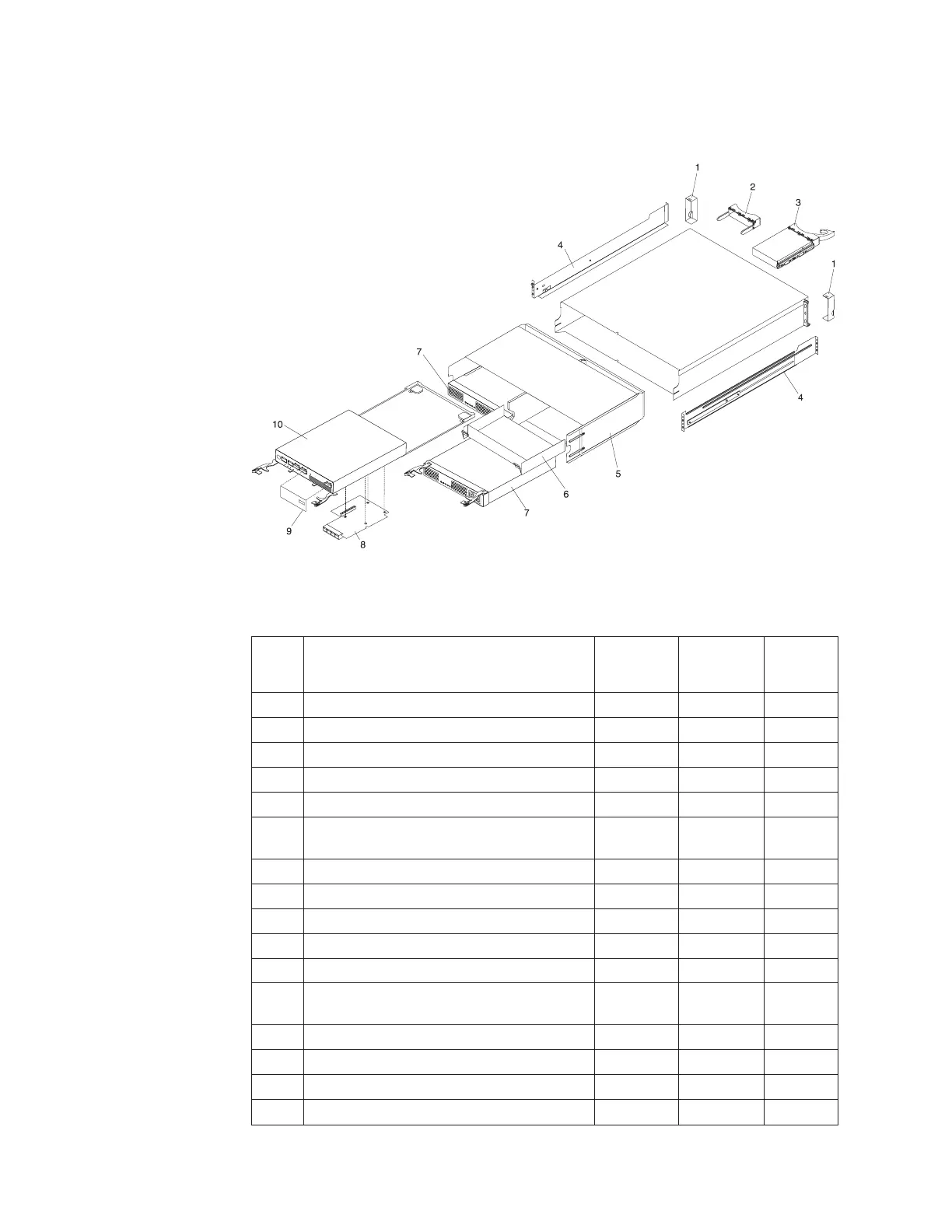

Figure 101. DS3512 storage subsystem and EXP3512 expansion enclosure storage
subsystem parts
136 System Storage DS3500 and EXP3500: Installation, User’s, and Maintenance Guide

IBM DS3500 Specifications

General

Storage Type	Disk Array
Form Factor	2U
Supported Drives	SAS, SATA
RAID Levels	0, 1, 5, 6, 10, 50, 60
Management Software	IBM System Storage DS Storage Manager
Operating System Support	Windows, Linux, VMware, AIX, HP-UX, Solaris
Model	IBM DS3500
Host Interfaces	SAS
Cache Memory	2 GB
Power Supply	Dual redundant, hot-swappable
Number of Controllers	2
