IBM DS3500

CAUTION:
This product might contain one or more of the following devices: CD-ROM
drive, DVD-ROM drive, DVD-RAM drive, or laser module, which are Class 1
laser products. Note the following information:
v Do not remove the covers. Removing the covers of the laser product could
result in exposure to hazardous laser radiation. There are no serviceable
parts inside the device.
v Use of the controls or adjustments or performance of procedures other
than those specified herein might result in hazardous radiation exposure.
(C026)
CAUTION:
Data processing environments can contain equipment transmitting on system
links with laser modules that operate at greater than Class 1 power levels. For
this reason, never look into the end of an optical fiber cable or open
receptacle. (C027)
1. Read the information in “Handling fiber optic cables” on page 27.
2. Connect one end of an LC-LC cable to an SFP module in the DS3500. For
instructions, see “Using LC-LC Fibre Channel cables” on page 31.
3. Remove the two protective caps from the LC connector end of the LC-SC cable
adapter as shown in Figure 30. Save the protective caps for future use.
4. Carefully insert the other end of the LC-LC cable into the LC connector end of
the LC-SC cable adapter as shown in Figure 31 on page 36. Push in the
connector until it clicks into place.

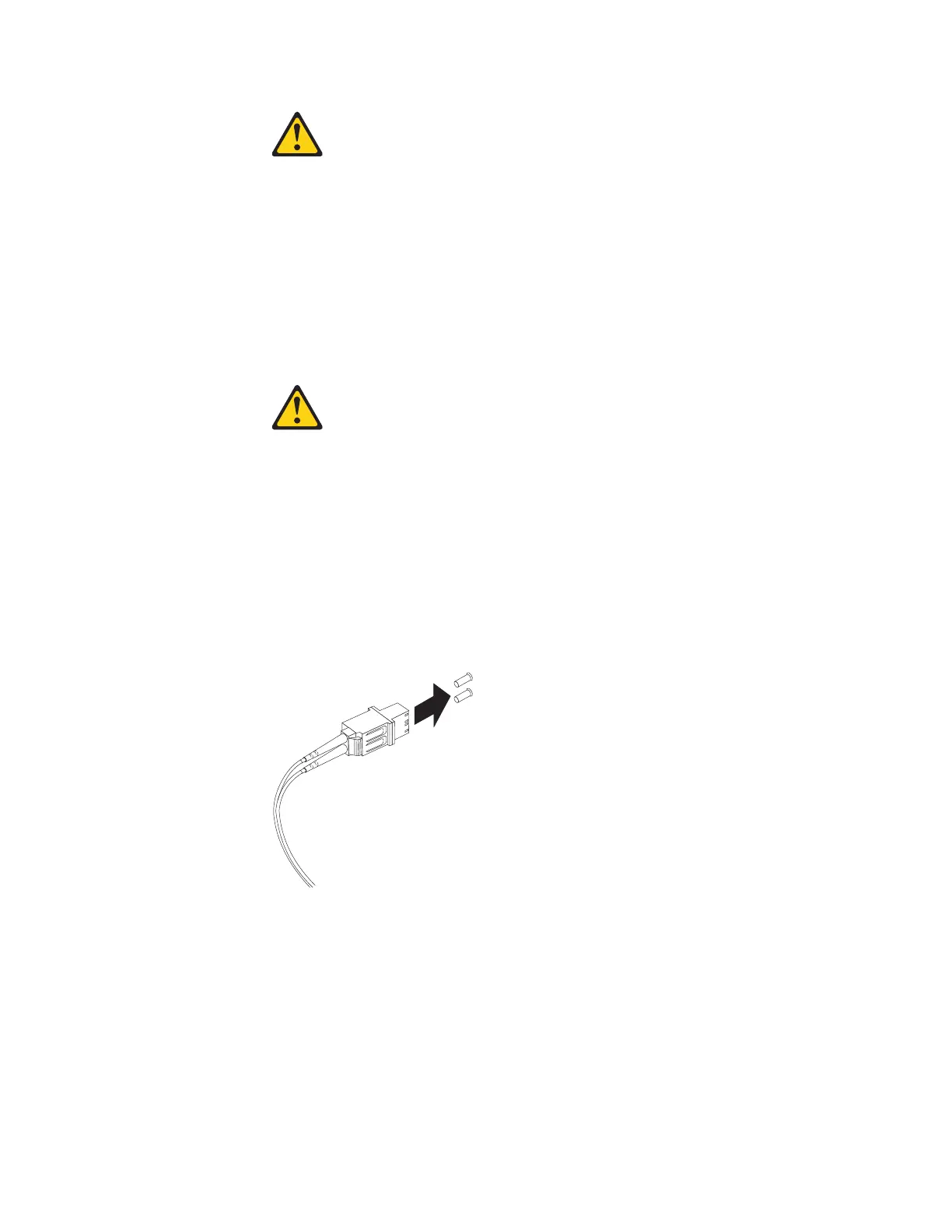

Figure 30. Removing the LC-SC cable adapter protective caps
Chapter 3. Cabling the storage subsystem and expansion enclosure 35
