IBM DS3500

Figure 12 shows the dimensions of the DS3524 storage subsystem and EXP3524
expansion enclosure, which conforms to the 19-inch rack standard.
Weight
The total weight of the storage subsystem and expansion enclosure depends on the
number of installed components. Table 2 lists the maximum and empty weights for
the DS3512 storage subsystem and EXP3512 expansion enclosure in different
configurations. Table 3 on page 14 lists the maximum and empty weights for the
DS3524 storage subsystem and EXP3524 expansion enclosure in different
configurations. Table 4 on page 14 lists the weight of each component.
Table 2. DS3512 storage subsystem and EXP3512 expansion enclosure weights
Model Maximum
1
Empty
2
DS3512 27.0 kg (59.6 lb)
8.4 kg (18.5 lb)
EXP3512 26.3 kg (57.9 lb)
1
Chassis with dual controller or ESMs and 12 hard disk drives.
2
Chassis without power supplies, controllers or ESMs, and hard disk drive filler panels.
48.2 cm (19 in.)
44.9 cm (17.7 in.)
8.6 cm (3.4 in.)
54.0 cm (21.3 in.)

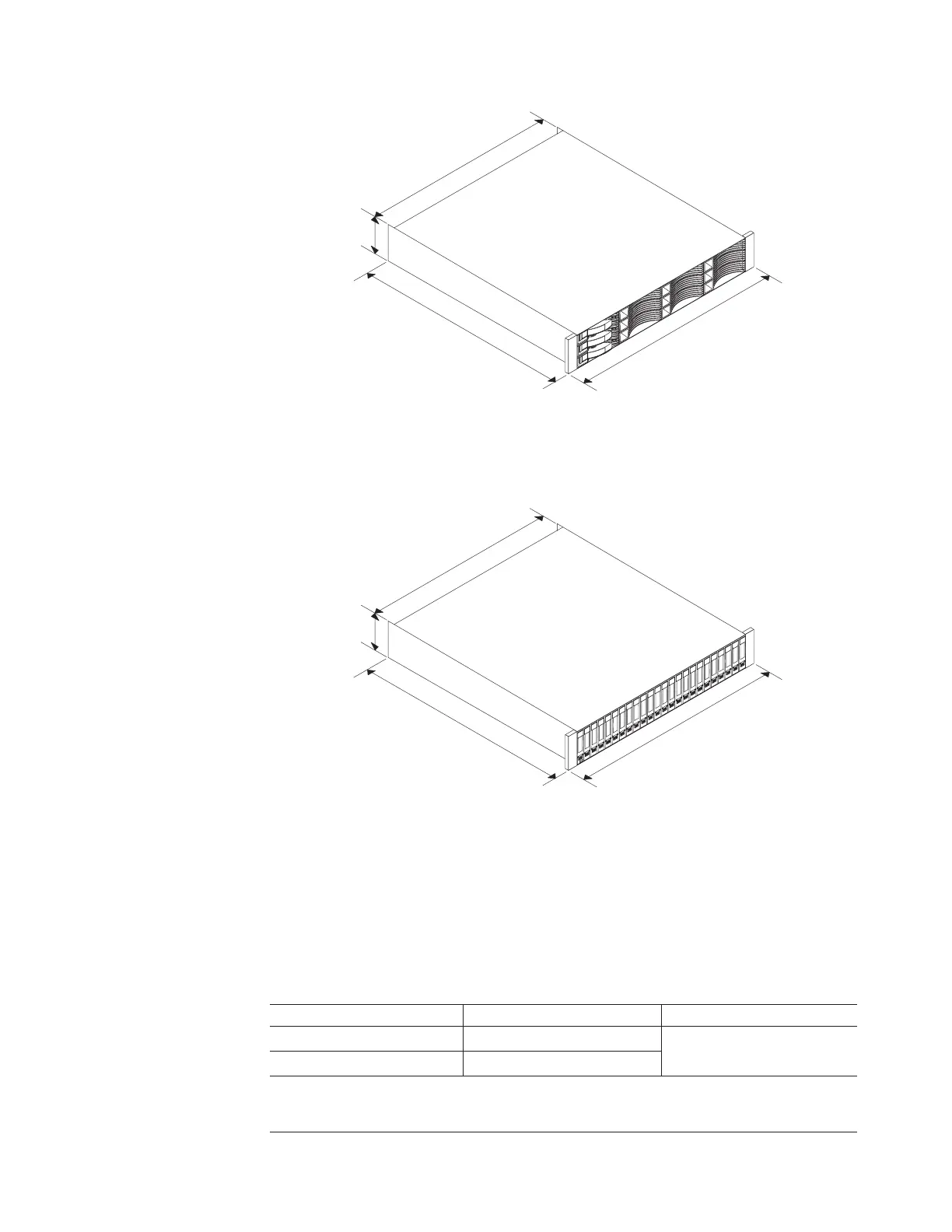

Figure 11. DS3512 storage subsystem and EXP3512 expansion enclosure dimensions
48.2 cm (19 in.)
44.9 cm (17.7 in.)
8.8 cm (3.5 in.)
48.7 cm (19.2 in.)
Figure 12. DS3524 storage subsystem and EXP3524 expansion enclosure dimensions
Chapter 1. Introduction 13
