Figure 64 shows an example of a multiple-host, multiple-port, and multiple-fabric
(Fibre Channel or iSCSI, and SAS) configuration.
Gigabit
Ethernet
switch
Gigabit
Ethernet
switch
DS3500
Host system
with two iSCSI
connectors
Host system
with two iSCSI
connectors
Figure 63. Multiple-host, multiple-port, dual-controller iSCSI configuration

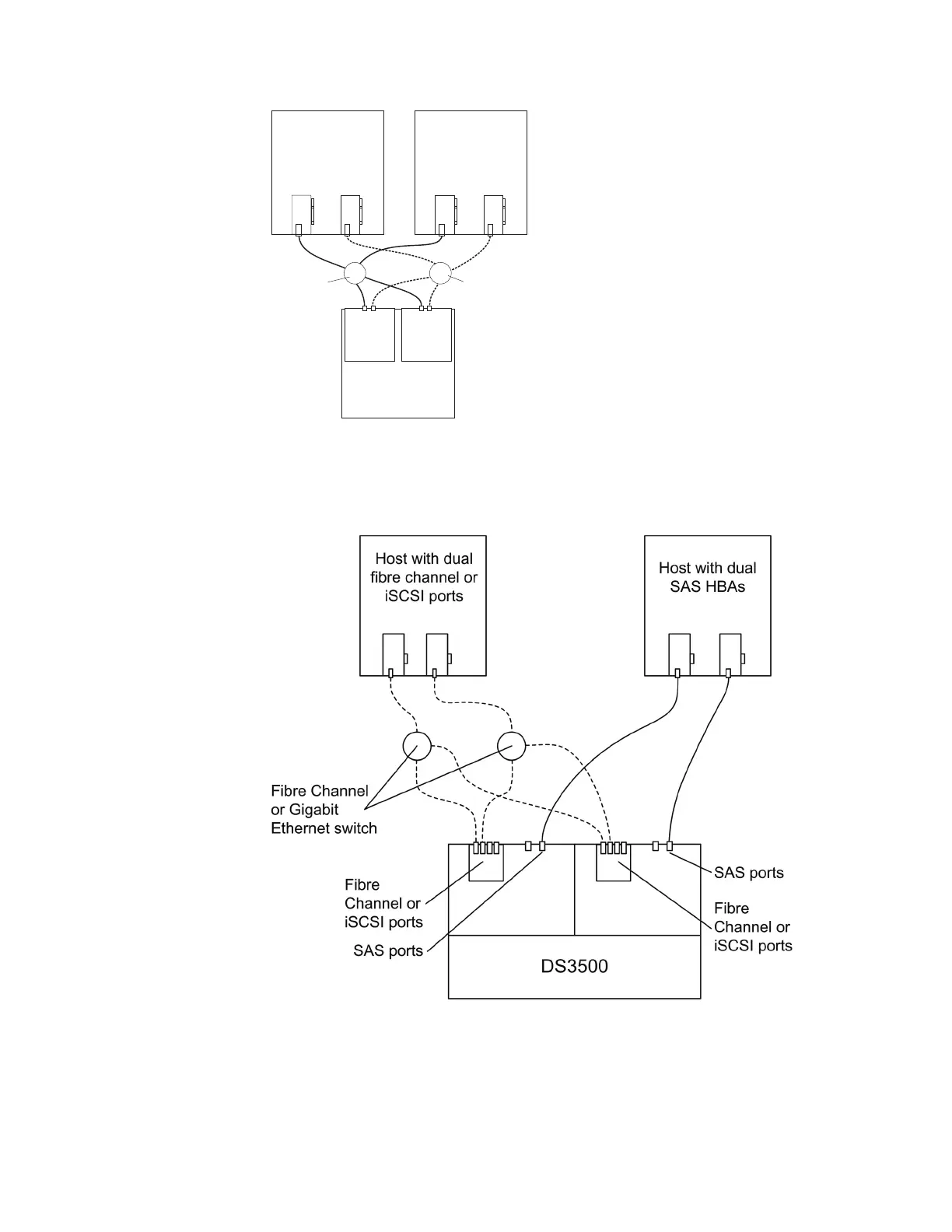

Figure 64. Example of a multiple-host, multiple-port, and multiple-fabric (Fibre Channel or
iSCSI, and SAS) configuration
Chapter 3. Cabling the storage subsystem and expansion enclosure 63
