Figure 65 shows an example of a DS3500 that is connected to one BladeCenter
unit.
Cabling the DS3500 and EXP3500 power supplies
To connect the DS3500 and EXP3500 power-supply cords, complete the following
steps:
1. Connect a power cord to a power supply in the DS3500 or EXP3500.
2. Attach the power cord to the strain relief guide.
3. Repeat steps 1 and 2 for the second power supply.
4. Connect the other end of each power cord to a correctly grounded electrical
receptacle. For maximum protection against power loss, connect each of the
two power supplies to a different power source.

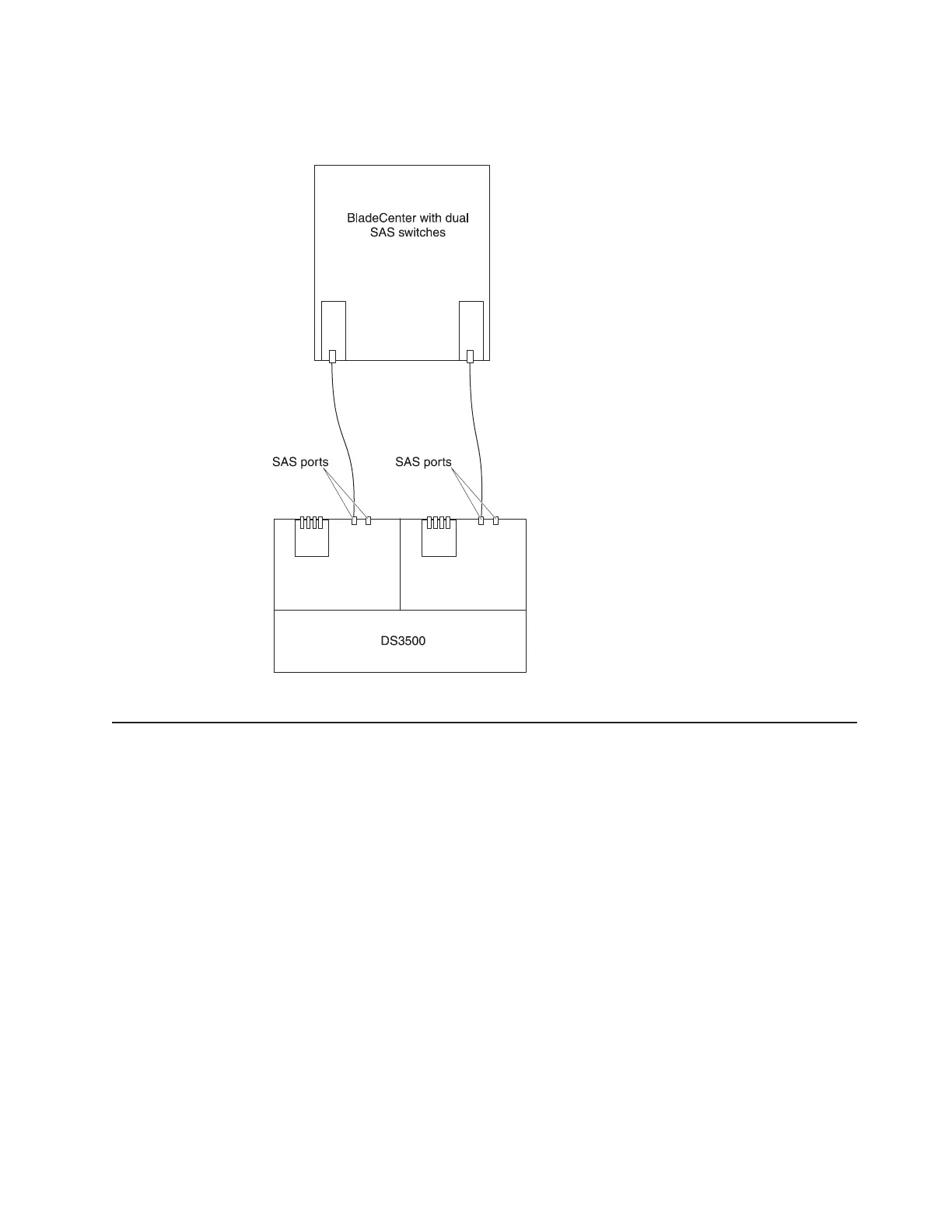

Figure 65. Example of a DS3500 that is connected to one BladeCenter unit
Chapter 3. Cabling the storage subsystem and expansion enclosure 65
