3. Replace the protective caps on the cable ends.
4. Replace the protective cap on the SFP module.
Using LC-SC Fibre Channel cable adapters
The LC-SC Fibre Channel cable adapter is a fiber optic cable that is used to
connect an LC connector to one of the following devices that require SC
connectors:
v 1-Gbps Fibre Channel switch
v Fibre Channel host bus adapter
For more information, see the documentation that comes with the LC-SC Fibre
Channel cable adapter.
The following sections provide the procedures for correctly connecting and
removing an LC-SC Fibre Channel cable.
Connecting an LC-SC cable adapter to a device: To connect an LC-SC Fibre
Channel cable adapter to a device, complete the following steps.

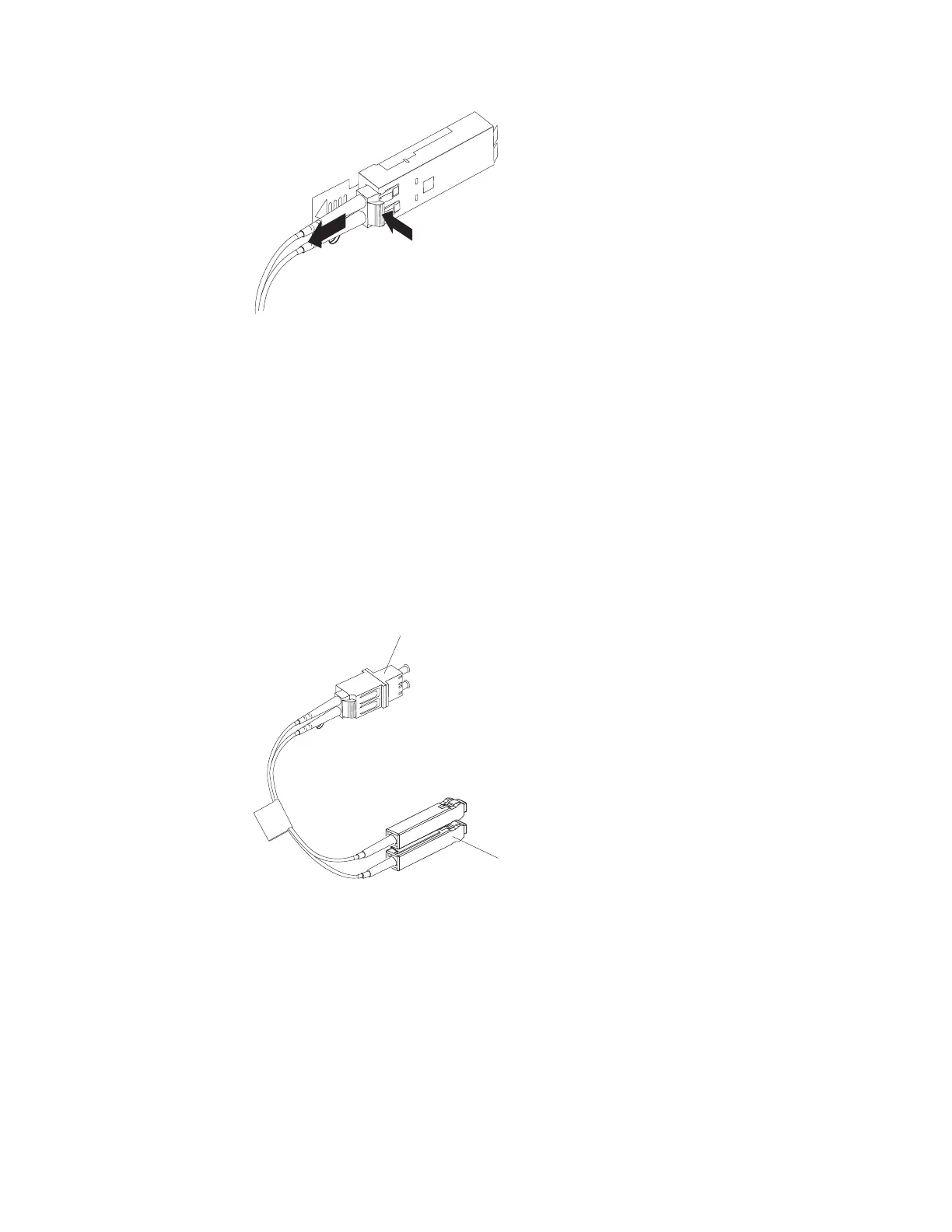

Figure 28. Removing the LC-LC Fibre Channel cable
LC connector
SC connector
Figure 29. LC-SC Fibre Channel cable adapter
34 System Storage DS3500 and EXP3500: Installation, User’s, and Maintenance Guide
