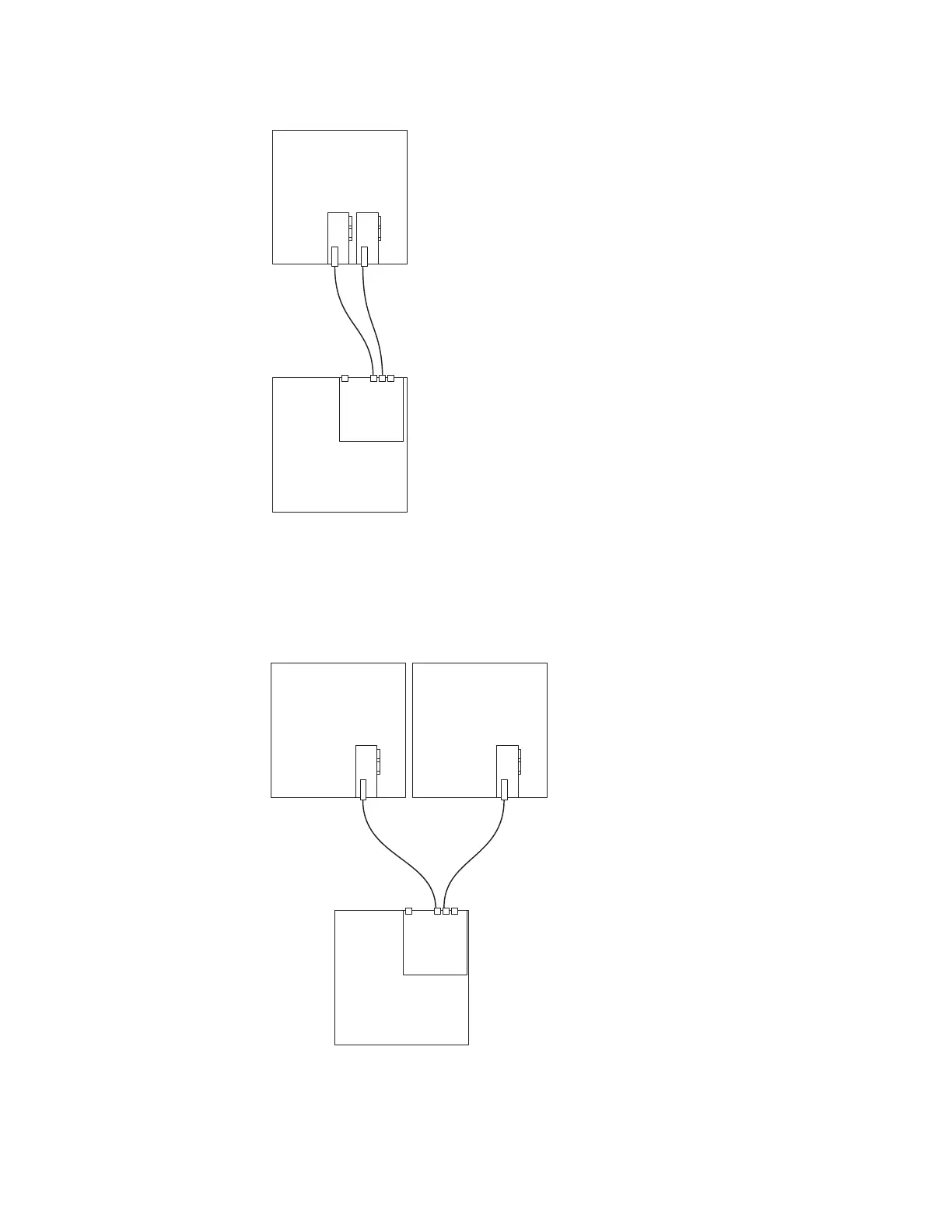

The following illustration shows a direct-attached connection to single HBAs in
multiple hosts.
Host system
with dual host
adapters
DS3500
Figure 50. Single-controller direct-attached Fibre Channel connection to dual HBAs
(redundant host connection)
Host system
with single host
adapter
DS3500
Host system
with single host
adapter
Figure 51. Single-controller direct-attached Fibre Channel connection to single HBAs in
multiple hosts
Chapter 3. Cabling the storage subsystem and expansion enclosure 55
