CAUTION:
This product might contain one or more of the following devices: CD-ROM
drive, DVD-ROM drive, DVD-RAM drive, or laser module, which are Class 1
laser products. Note the following information:
v Do not remove the covers. Removing the covers of the laser product could
result in exposure to hazardous laser radiation. There are no serviceable
parts inside the device.
v Use of the controls or adjustments or performance of procedures other
than those specified herein might result in hazardous radiation exposure.
(C026)
CAUTION:
Data processing environments can contain equipment transmitting on system
links with laser modules that operate at greater than Class 1 power levels. For
this reason, never look into the end of an optical fiber cable or open
receptacle. (C027)
1. Read the information in “Handling fiber optic cables” on page 27.
2. If necessary, remove the protective cap from the SFP module, as shown in
Figure 20 on page 29. Save the protective cap for future use.
3. Remove the two protective caps from one end of the LC-LC cable, as shown in
Figure 25. Save the protective caps for future use.
4. Carefully insert this end of the LC-LC cable into an SFP module that is installed
in the storage subsystem. The cable connector is keyed for correct installation.
Holding the connector, push in the cable until it clicks into place, as shown in
Figure 26 on page 33.
Protective cap
Fiber-optic
cable

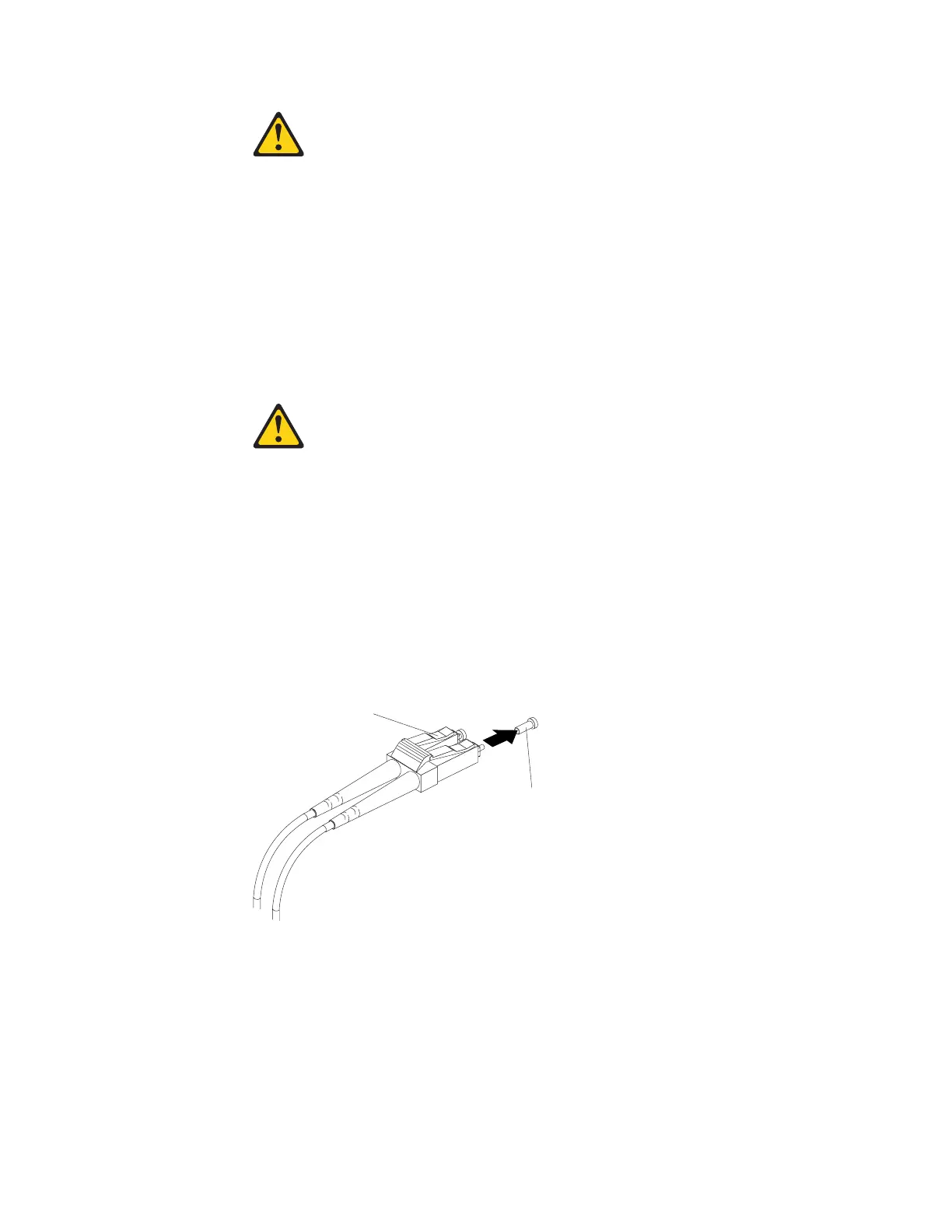

Figure 25. Removing fiber optic cable protective caps
32 System Storage DS3500 and EXP3500: Installation, User’s, and Maintenance Guide
