Figure 37.
One dual-controller DS3500 and two expansion enclosures: To cable one
dual-controller DS3500 and two expansion enclosures, connect them as shown in
Figure 38.
One dual-controller DS3500 and up to eight expansion enclosures: To cable
one dual-controller DS3500 and up to eight expansion enclosures, connect them as
shown in Figure 39 on page 44.

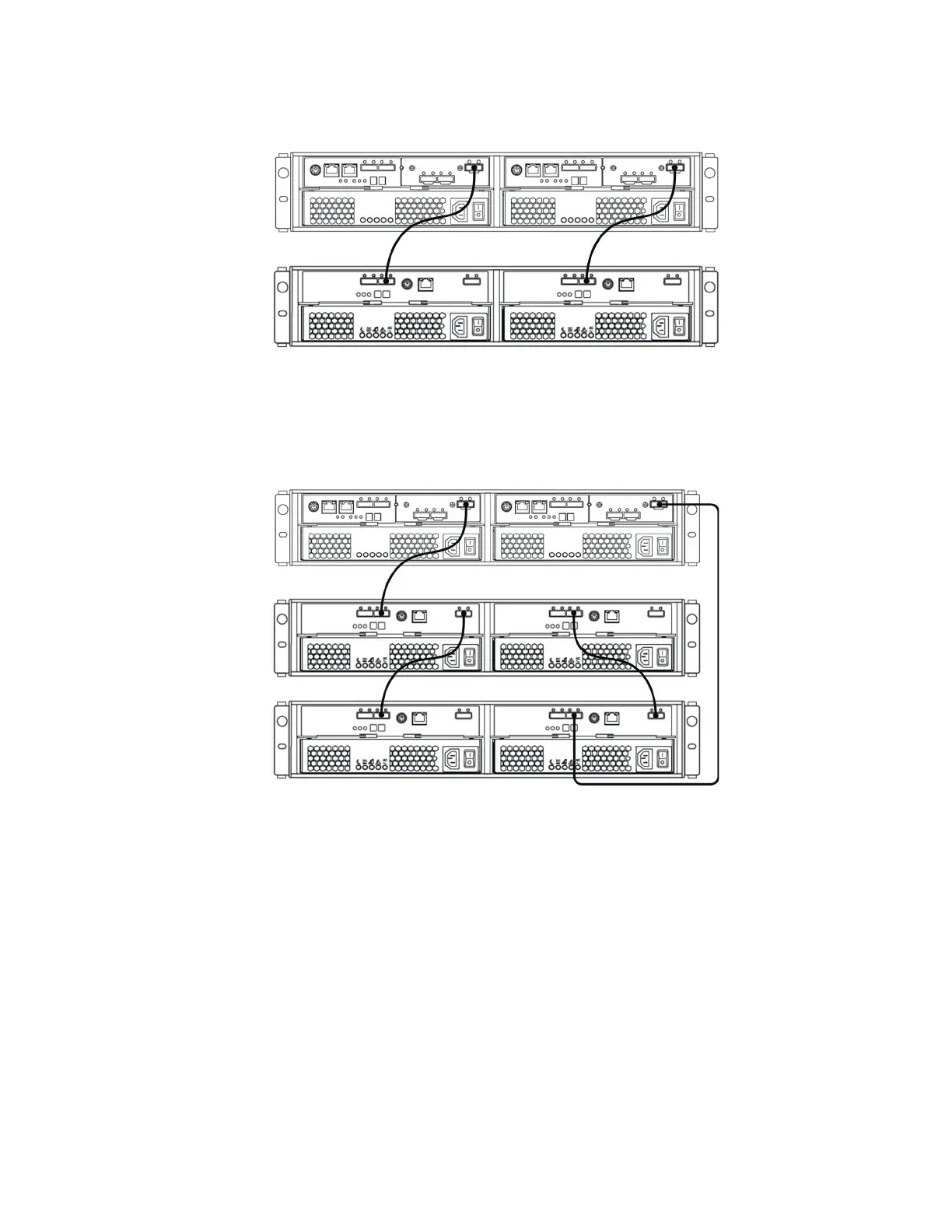

Figure 37. One dual-controller DS3500 and one expansion enclosure
Figure 38. One dual-controller DS3500 and two expansion enclosures
Chapter 3. Cabling the storage subsystem and expansion enclosure 43
