Page #102 background image

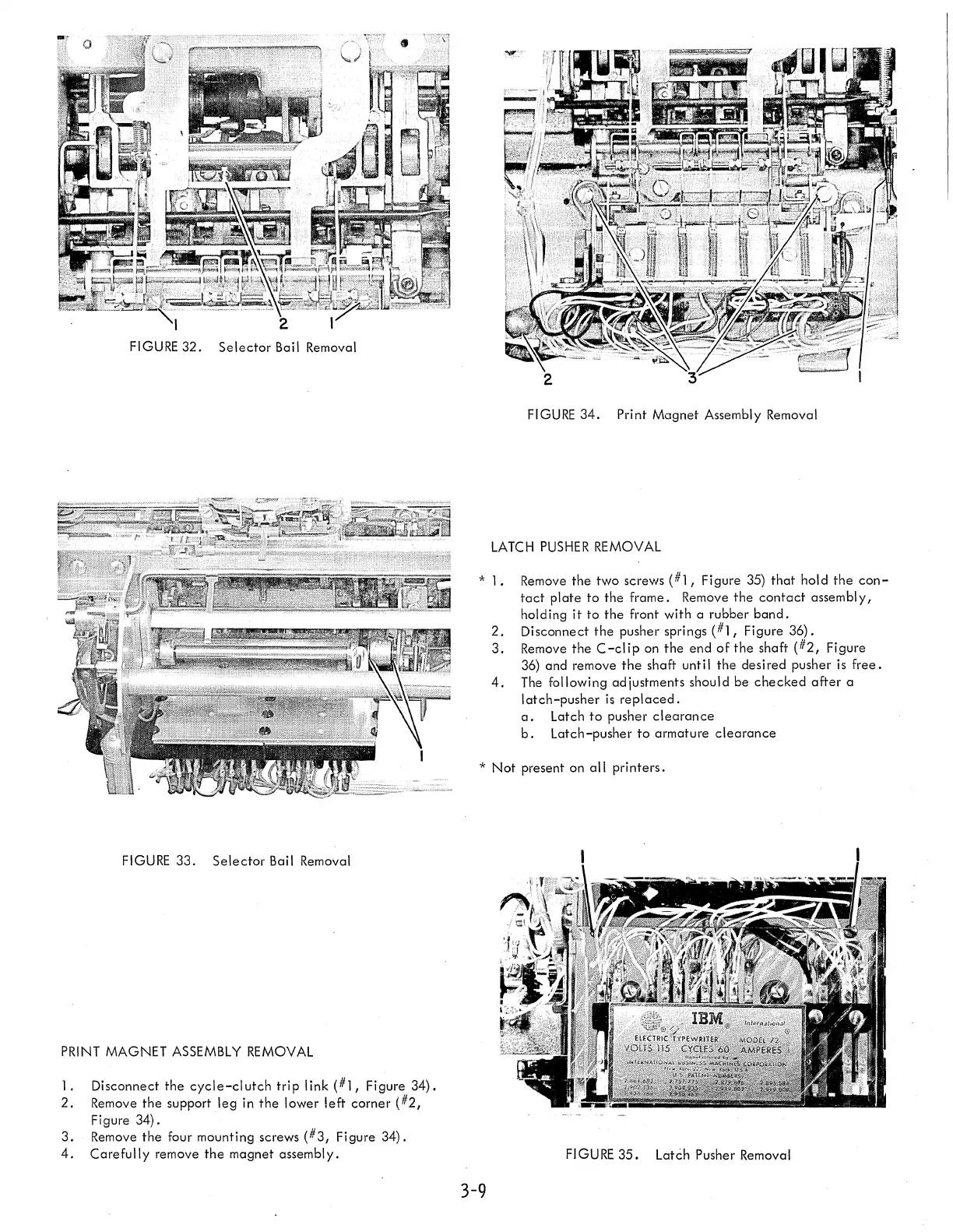

FIGURE
32.
Selector
Bail Removal
FIGURE
33.
Selector
Bail Removal
PRINT
MAGNET
ASSEMBLY REMOVAL
1.
Disconnect
the
cycle-clutch
trip
link
(#1,
Figure
34).
2.
Remove
the
support
leg
in
the
lower
left
corner
(#2,
Figure
34).
3.
Remove
the
four
mounting
screws
(#3,
Figure
34).
4.
Carefully
remove
the
magnet
assembly.
FIGURE
34.
Print
Magnet
Assembly Removal
LATCH PUSHER
REMOVAL
*
1.
Remove
the
two
screws
(#1,
Figure
35)
that
hold
the
con-
tact
plate
to
the
frame.
Remove
the
contact
assembl
y,
holding
it
to
the
front
with
a
rubber
band.
2.
Disconnect
the
pusher
springs
(#1,
Figure
36).
3.
Remove
the
C-clip
on
the
end
of
the
shaft
(#2,
Figure
36)
and
remove
the
shaft
unt
i I
the
desi
red
pusher
is
free.
4.
The
following
adjustments
should
be
checked
after
a
latch-pusher
is
replaced.
a.
Latch
to
pusher
clearance
b.
Latch-pusher
to
armature
clearance
*
Not
present
on
all
printers.
FIGURE
35.
Latch
Pusher
Removal
3-9
