IBM Selectric Service Manual

Magnet Link 8.1
Wrong Hole 2.13
See SH 8.4
No
Yes
Release Lug 6.4
Bind In Release Lever
Rust On Cam
No

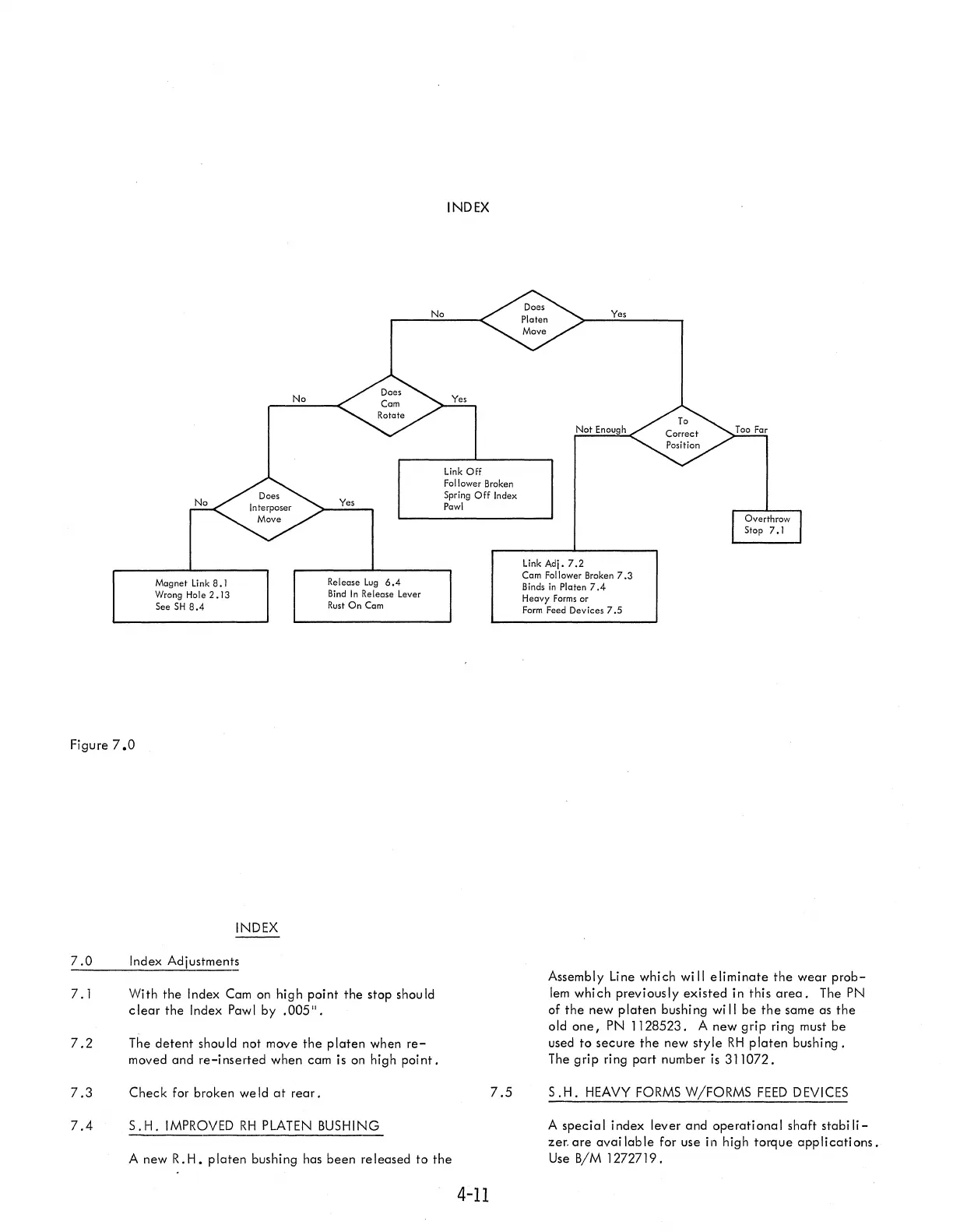

Figure 7,0
INDEX
7.0 Index Adjustments
7.1
7.2
7.3
7.4
With the Index Cam on high point the stop should
clear the Index Pawl by .005".
The detent should not move the platen when re-
moved and re-inserted when cam is on high point.
Check for broken weld at rear.
S. H. IMPROVED RH PLATEN BUSHING
INDEX
Link Off
Follower Broken
Spring Off Index
Pawl
7.5
A new R.H. platen bushing has been released to the
4-11
Yes
Not Enough
Link Adj.
7.2
Cam Follower Broken 7.3
Binds in Platen 7.4
Heavy Forms or
Form Feed Devices 7.5
Assembly Line which wi II eliminate the wear prob-
lem which previously existed in this area. The PN
of the new platen bushing wi II be the same as the
old one, PN 1128523. A new grip ring must be
used to secure the new style RH platen bushing.
The grip ring part number is 311072.
S .H. HEAVY FORMS W/FORMS FEED DEVICES
A specia I index lever and operati ona I shaft stabi Ii-
zerare available for use in high torque applications.
Use B/M 1272719.
