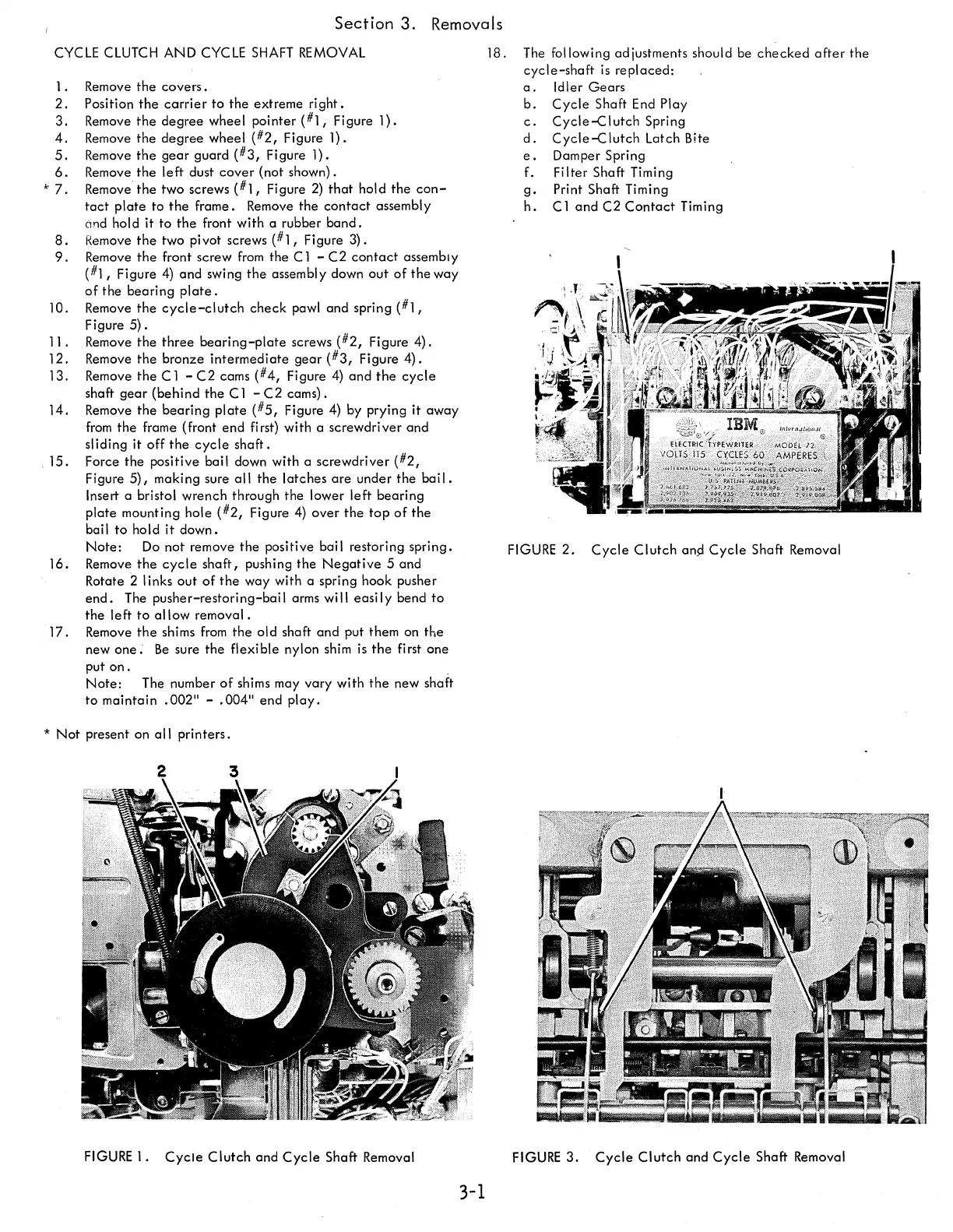

IBM Selectric Service Manual

Section 3. Removals
CYCLE CLUTCH AND CYCLE SHAFT REMOVAL
1 • Remove the covers.
2. Position the carrier to the extreme right.
3. Remove the degree wheel pointer (#1, Figure 1).
4. Remove the degree wheel (#2, Figure 1).
5. Remove the gear guard (#3, Figure 1).
6. Remove the left dust cover (not shown).
• 7. Remove the two screws (#1, Figure 2) that hold the con-
tact plate to the frame. Remove the contact assembly
Md hold it to the front with a rubber band.
8. Remove the two pivot screws (#1, Figure 3).
9. Remove the front screw from the C 1 - C2 contact assemblY
(#1, Figure 4) and swing the assembly down out of the way
of the bearing plate.
10. Remove the cycle-clutch check pawl and spring (#1,
Figure 5).
11. Remove the three bearing-plate screws (#2, Figure 4).
12. Remove the bronze intermediate gear (#3, Figure 4).
13. Remove the Cl -C2 cams (#4, Figure 4) and the cycle
shaft gear (behind the C 1 - C2 cams).
14. Remove the bearing plate (#5, Figure 4) by prying it away
from the frame (front end fi rst) with a screwdri ver and
sliding it off the cycle shaft.
,15. Force the positive bail down with a screwdriver (#2,
Figure 5), making sure all the latches are under the bail.
Insert a bristol wrench through the lower left bearing
plate mounting hole (#2, Figure 4) over the top of the
bai I to hold it down.
Note: Do not remove the positive bail restoring spring.
16. Remove the cycle shaft, pushing the Negative 5 and
Rotate 2 links out of the way with a spring hook pusher
end. The pusher-restoring-bail arms will easily bend to
the left to allow removal.
17. Remove the shims from the old shaft and put them on the
new one: Be sure the flexible nylon shim is the first one
put
on.
Note: The number of shims may vary with the new shaft
to maintain .002" - . 004" end play.
* Not present on all printers.
FIGURE 1. CYCle Clutch and Cycle Shaft Removal
3-1
18. The following ad justments should be checked after the
cycle-shaft is replaced:
a. Idler Gears
b. Cycle Shaft End Play
c. Cycle-Clutch Spring
d. Cycle-Clutch Latch Bite
e. Damper Spring
f. Filter Shaft Timing
g. Print Shaft Timing
h. C 1 and C2 Contact Timing
FIGURE 2. Cycle Clutch an9 Cycle Shaft Removal
FIGURE 3. Cycle Clutch and Cycle Shaft Removal
