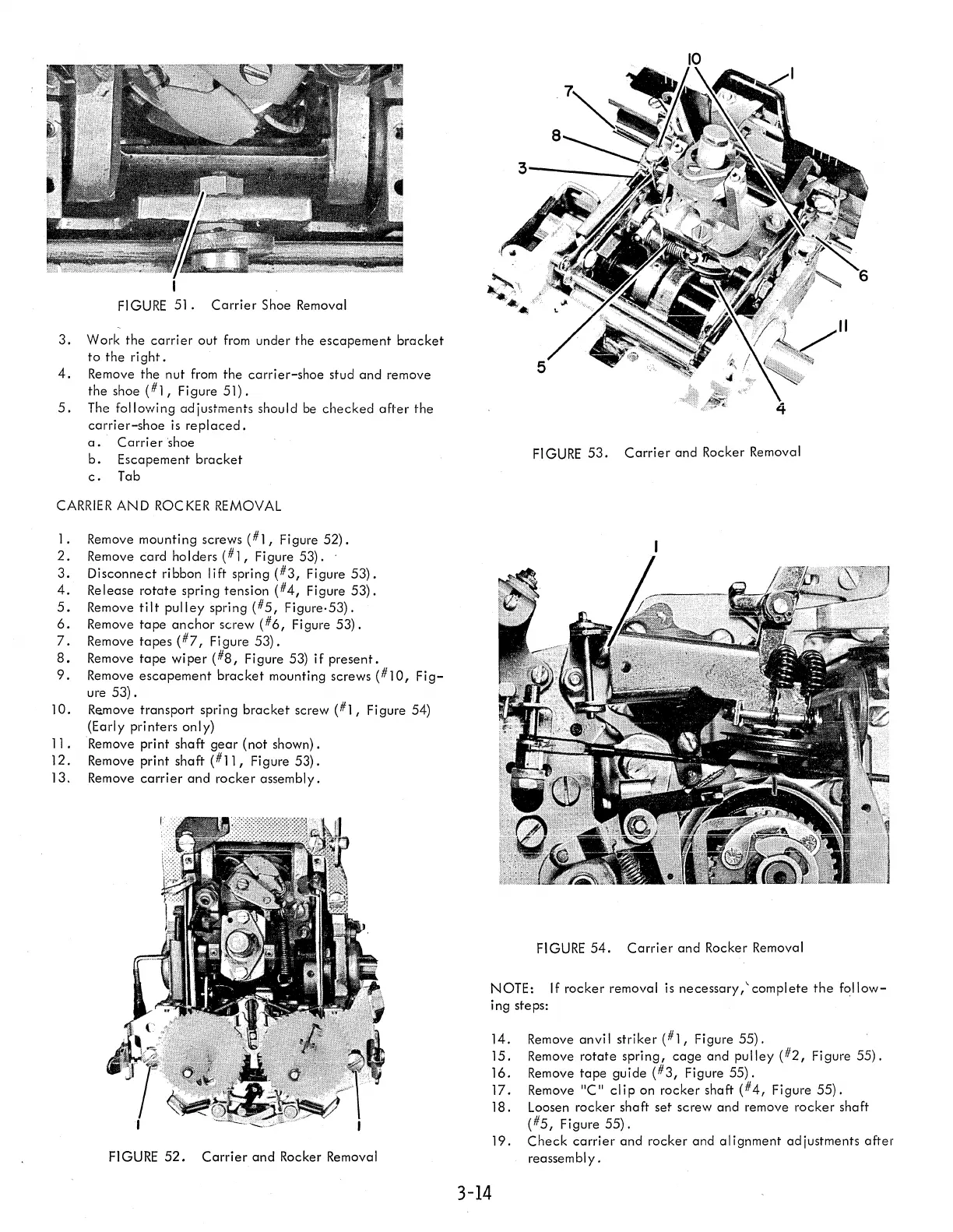

Page #107 background image
FIGURE
51.
Carrier
Shoe Removal
3.
Work
the
carrier
out
from
under
the
escapement
bracket
to
the
ri
ght.
4.
Remove
the
nut
from
the
carrier-shoe
stud
and
remove
the
shoe
(#1,
Figure
51).
5.
The
following
adjustments
should be
checked
after
the
carrier-shoe
is
replaced.
a.
Carrier
'shoe
b.
Escapement
bracket
c.
Tab
CARRIER
AND
ROCKER REMOVAL
1.
Remove
mounting
screws
(#1,
Figure
52).
2.
Remove
card
holders
(#1,
Figure 53)
..
3.
Disconnect
ribbon lift spring
(#3,
Figure
53).
4.
Release
rotate
spring
tension
(#4,
Figure
53).
5.
Remove
tilt
pulley
spring
(#5,
Figure·53).
6.
Remove
tape
anchor
screw
(#6,
Figure
53).
7.
Remove
tapes
(#7,
Fi
gure
53).
8.
Remove
tape
wiper
(#8,
Figure 53)
if
present.
9.
Remove
escapement
bracket
mounting screws (# 1
0,
Fi
g-
ure
53).
10.
Re.move
transport
spring
bracket
screw
(#1,
Figure 54)
(Early
printers only)
11
. Remove
print
shaft
gear
(not
shown).
12.
Remove
print
shaft
(#11,
Figure
53).
13.
Remove
carrier
and
rocker
assembly.
FIGURE
52.
Carrier
and
Rocker Removal
FIGURE
53.
Carrier
and
Rocker Removal
FIGURE
54.
Carrier
and
Rocker Removal
NOTE: If
rocker
removal is
necessary,'complete
the
f~lIow
ing steps:
14.
Remove
anvil
striker
(#1,
Figure
55).
15.
Remove
rotate
spring,
cage
and
pulley
(#2,
Figure
55).
3-14
16.
Remove
tape
guide
(#3,
Figure
55).
17.
Remove
"C"
clip
on
rocker
shaft
(#4,
Figure
55).
18.
Loosen
rocker
shaft
set
screw
and
remove
rocker
shaft
(#5,
Figure
55).
19.
Check
carrier
and
rocker
and
alignment
adjustments
after
reassembly.
