IBM Selectric Service Manual

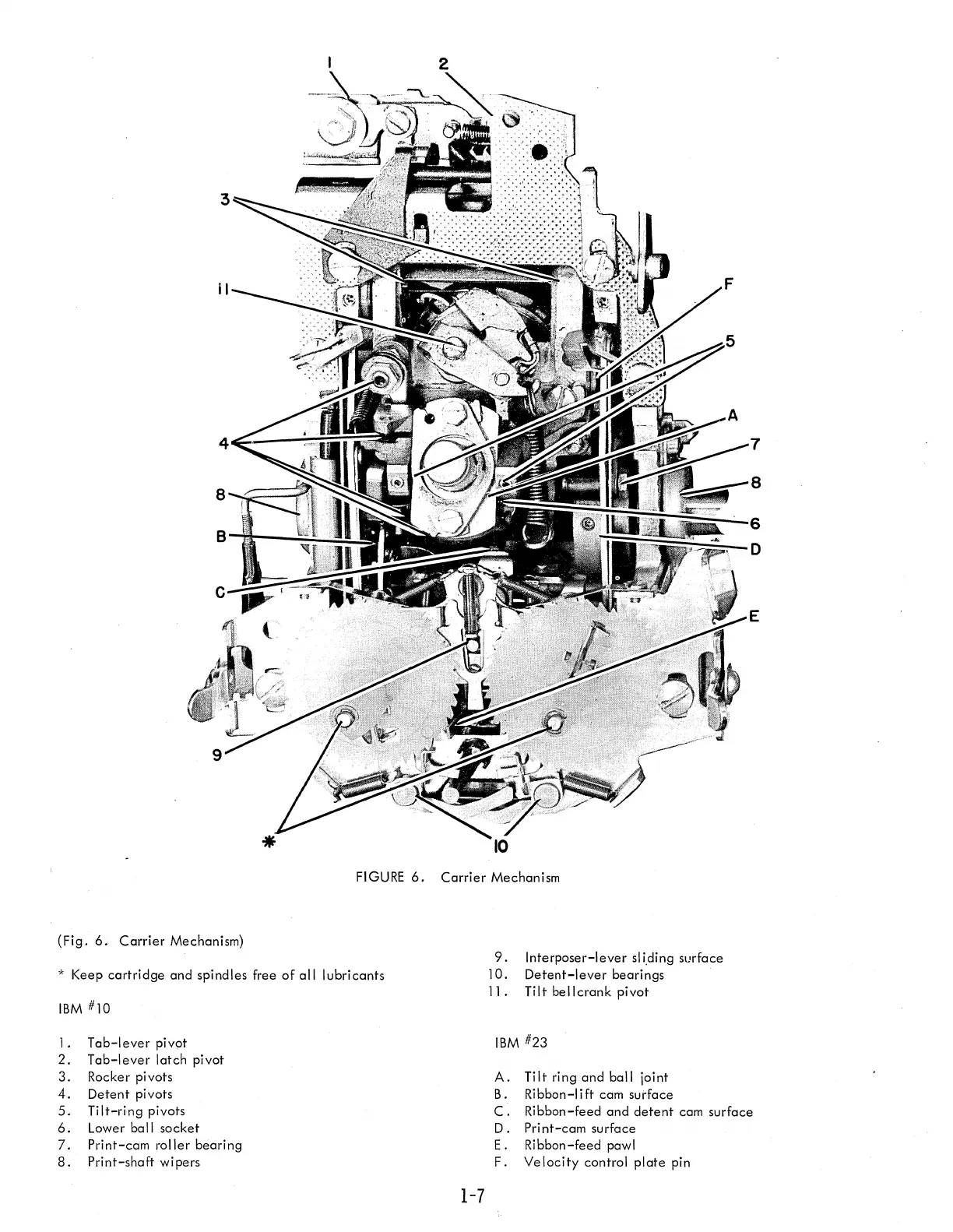

FIGURE 6. Carrier Mechanism
(Fig. 6. Carrier Mechanism)
* Keep cartridge and spindles free of all lubricants
IBM #10
1 . Tab-I ever pi vot
2. Tab-lever latch pivot
3. Rocker pivots
4. Detent pivots
5. Tilt-ring pivots
6. Lower ball socket
7. Print-cam roller bearing
8. Print-shoft wipers
1-7
9. Interposer-lever sl i.ding surface
10. Detent-lever bearings
11. Ti It be Ilcrank pivot
IBM #23
A. Tilt ring and ball joint
B.
Ribbon-I ift cam surface
C.
D.
E.
F.
Ribbon-feed ond detent cam surfoce
Print-cam surface
Ribbon-feed pawl
Ve
locity control plate pin

IBM Selectric Specifications

General

Type	Electric typewriter
Introduced	1961
Keyboard Layout	QWERTY
Carriage Return	Electric
Manufacturer	IBM
Printing Technology	Typeball (golf ball)
Power Source	AC Power
Power Supply	120V AC
