NOTE:
Be
sure
the
restoring
roller
is
not touching
the
restoring
.
cam.
Excessive
bite
may
cause
sluggish
release.
Insufficient
bite
may
cause
extra
cycles.
3.
Trip Link Clevis
(Fig.
18) - With
either
the
T2
or
R5
armature
manually
attracted,
adjust
the
clevis
so
that
the
latch
lever
clears
the
trip
lever
lug by
.005"
to
.020"
(Fig.
20).

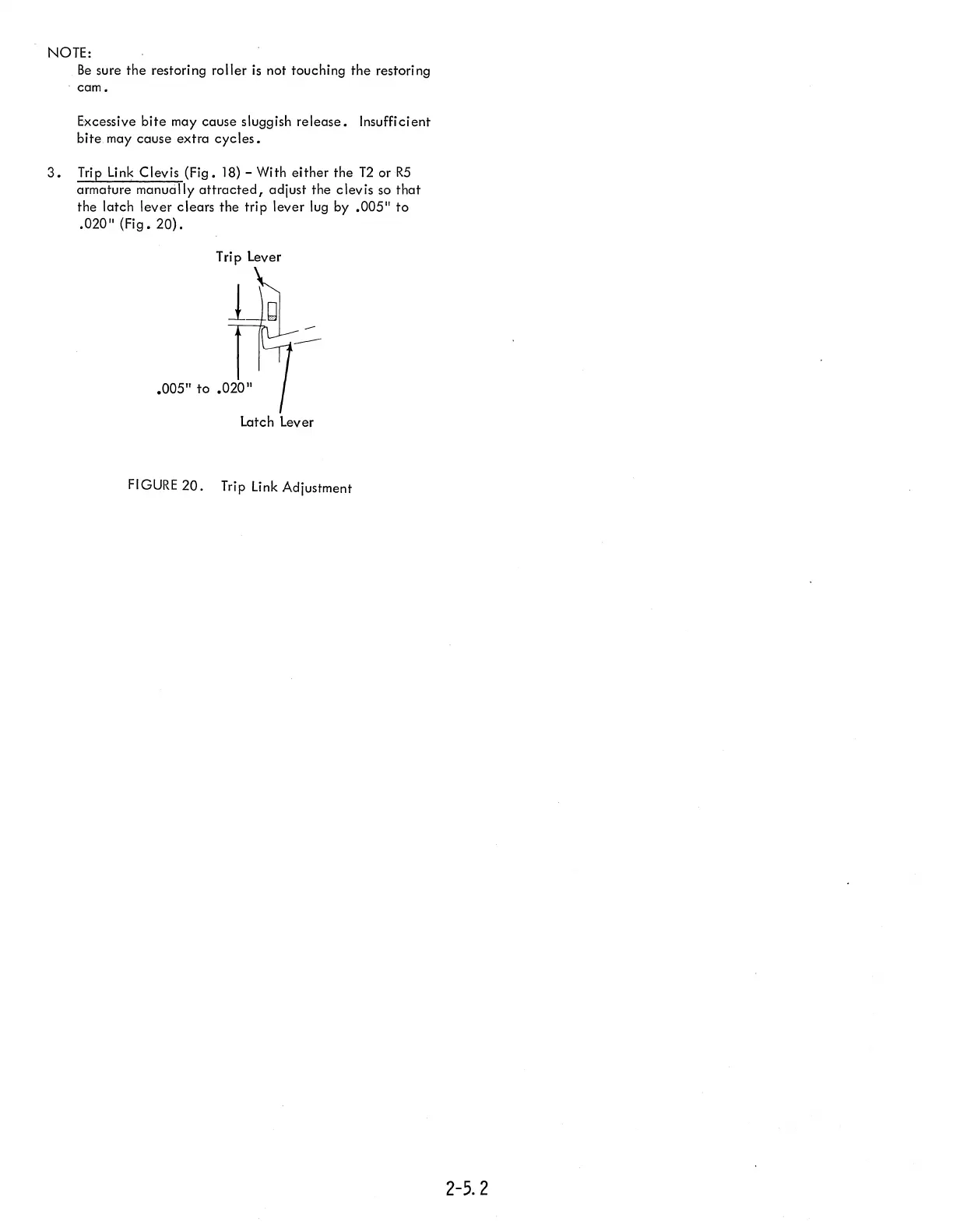

Trip Lever
1
.005"
to
.020"
Latch Lever
FIGURE
20.
Trip Link Adjustment
2-5.2
