IBM Selectric Service Manual

2 2

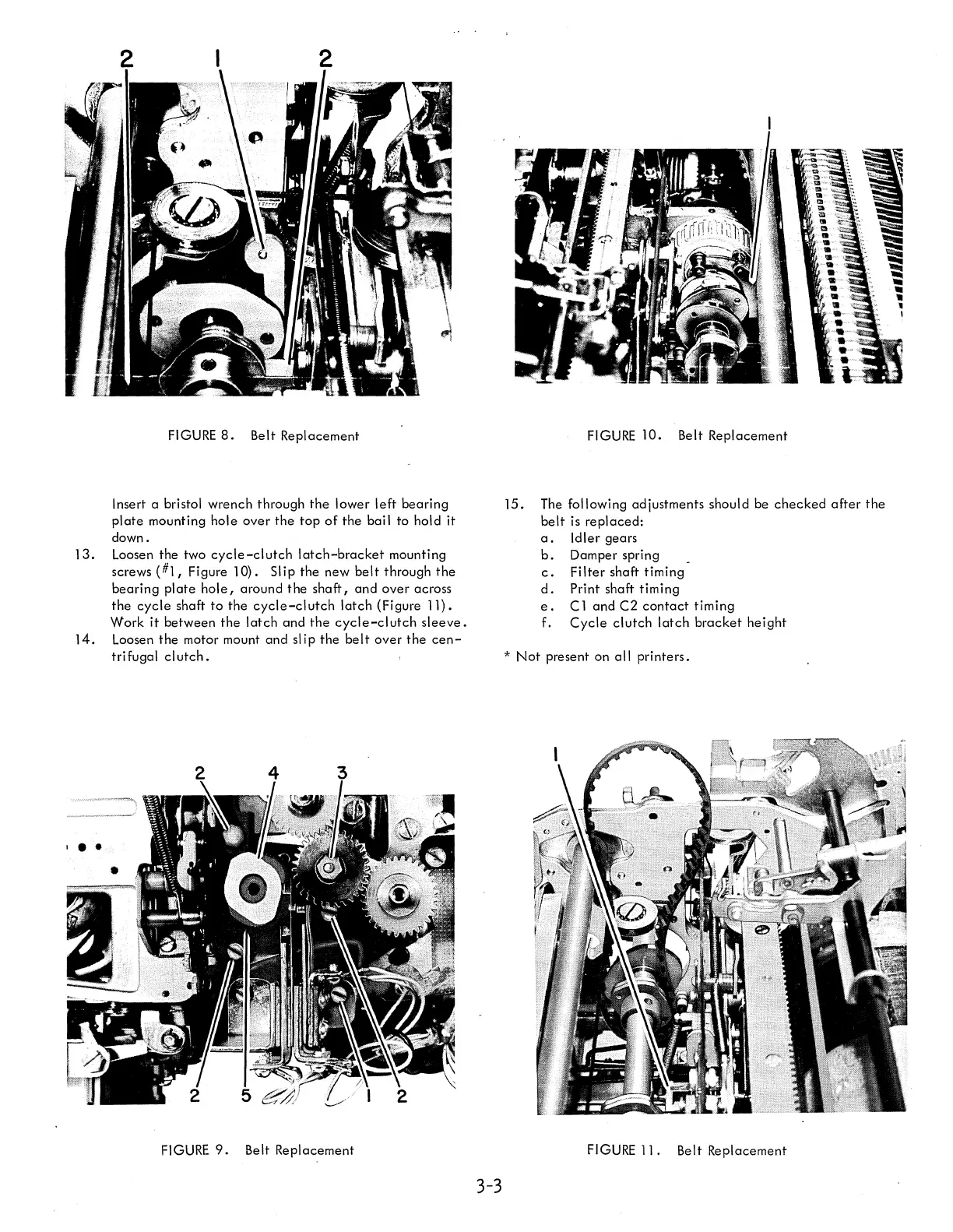

FIGURE 8. Belt Replacement
Insert a bristol wrench through the lower left bearing
plate mounting hole over the top of the bail to hold it
down.
13. Loosen the two cycle -clutch latch-bracket mounting
screws
(#1, Figure 10). Slip the new belt through the
bearing plate hole, around the shaft, and over across
the cycle shaft to the cycle-clutch latch (Figure 11).
Work it between the latch and the cycle-clutch sleeve.
14. Loosen the motor mount and slip the belt over the cen-
trifugal cI utch.
FIGURE 9. Belt Replacement
3-3
FIGURE 10. Belt Replacement
15. The following adjustments should be checked after the
belt is replaced:
a. Idler gears
b. Damper spring
c. Fi Iter shaft timing
d. Print shaft timing
e. C 1 and C2 contact timing
f. Cycle clutch latch bracket height
* Not present on all printers.
FIGURE 11. Belt Replacement
