To install a DIMM, complete the following procedure.
1. To help you work safely with Storwize V7000 Unified file modules, read the
safety information in “Safety” on page xi, “Safety statements” on page xiii,
and “Installation guidelines” on page 54.
2. Remove riser-card assembly 1, as described in “Removing a PCI riser-card
assembly” on page 99.
DIMM 17
DIMM 16
DIMM 15
DIMM 14
DIMM 13
DIMM 12
DIMM 11
DIMM 10
DIMM 8
DIMM 7
DIMM 6
DIMM 5
DIMM 4
DIMM 3
DIMM 2
DIMM 1
CH2
CH1
CH0
CH2
CH1
CH0
Microprocessor 2
Microprocessor 1
DIMM 9
DIMM 18
sonas236

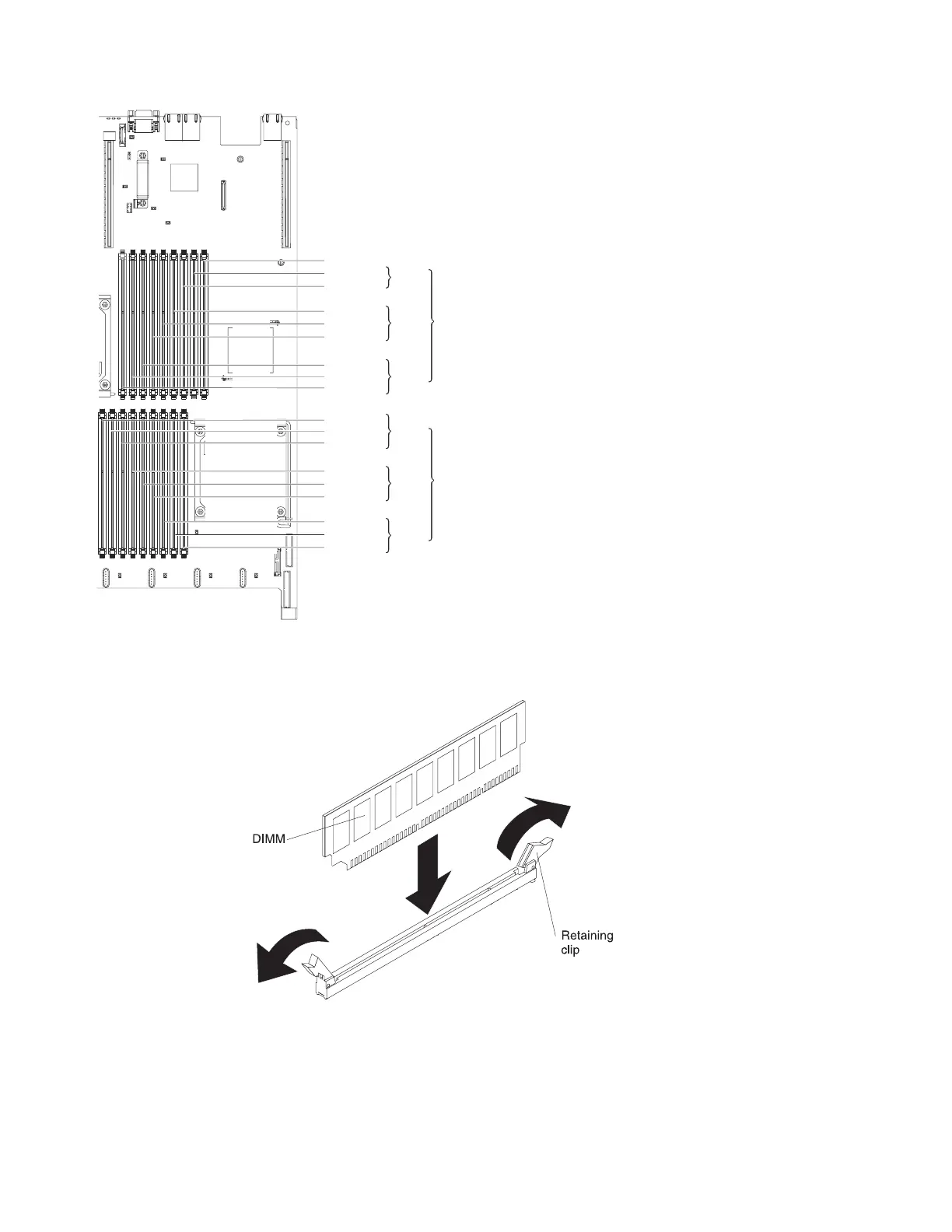

Figure 38. DIMM locations for the Storwize V7000 Unified System x3650 M3 server
132 Storwize V7000 Unified: Problem Determination Guide Version
