IBM Storwize V7000 Unified Series User Manual

Table 10. How to connect Fibre Channel cables from file modules to the control enclosure.
Refer to the previous graphic.
File module Control enclosure
A File module 1 (usually lower in the
rack)
C Control enclosure
2 Fibre Channel slot 2, port 1 5 Upper canister Fibre Channel port 1
1 Fibre Channel slot 2, port 2 8 Lower canister Fibre Channel port 1
B File module 2 (usually upper in the
rack)
C Control enclosure
4 Fibre Channel slot 2, port 1 6 Upper canister Fibre Channel port 2
3 Fibre Channel slot 2, port 2 7 Lower canister Fibre Channel port 2
The Storwize V7000 control enclosure contains an upper and lower (inverted)
canister.
if s 0 00 3 3
3
4
PCI
3
4
PCI
21
3 4
5
6
7 8
CAUT IO N
CAUT IO NCAUT IO N
CAUT IO N
Disconnect all
supply power for
complete isolation
Disconnect all
supply power for
complete isolation
Disconnect all
supply power for
complete isolation
Disconnect all
supply power for
complete isolation
C
B
A

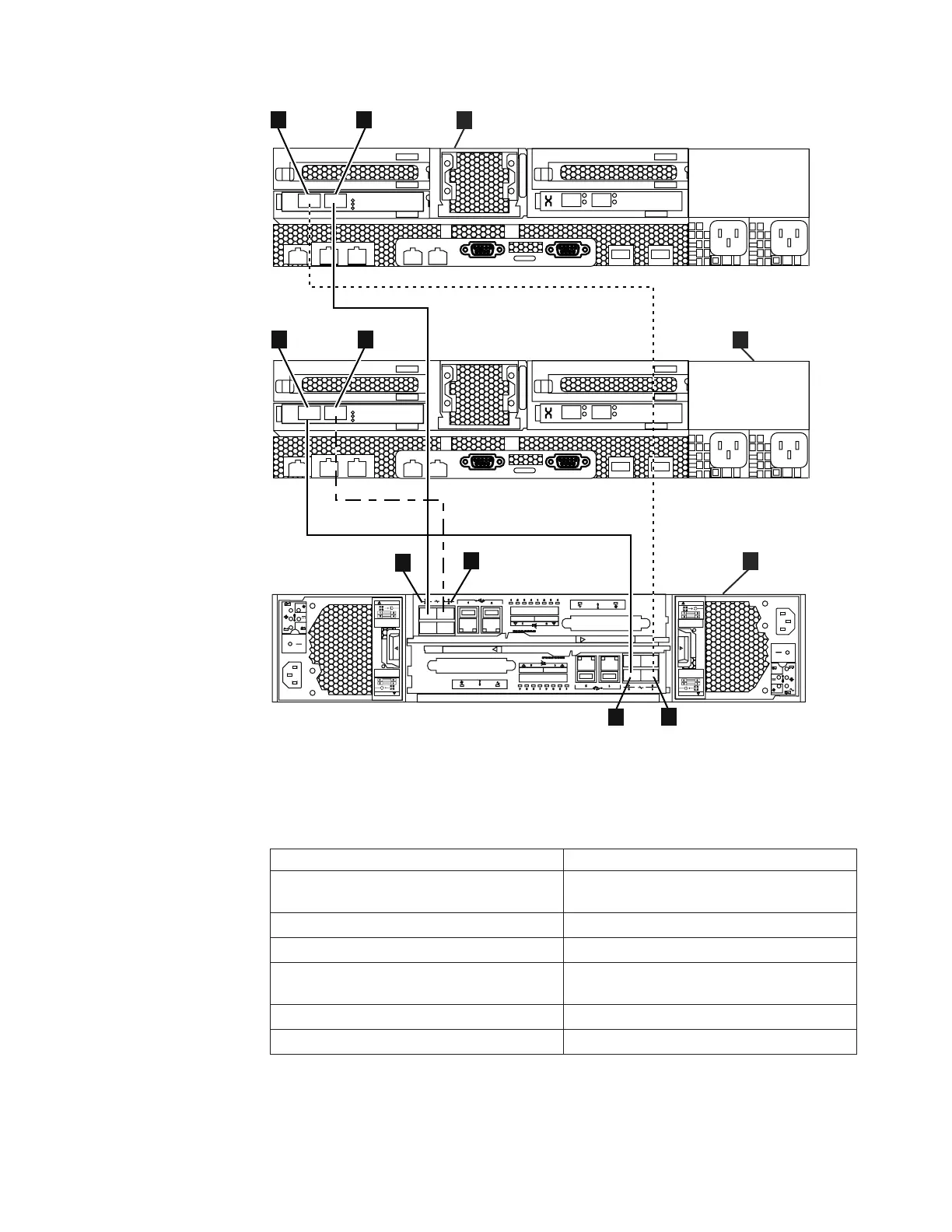

Figure 3. Diagram shows how to connect the file modules to the control enclosure using
Fibre Channel cables. (A) is file module 1 and (B) is file module 2. (C) is the control
enclosure.
Chapter 3. Getting started troubleshooting 31
|
|
|
||
|
|
|
||
||
|
|
|
||
||
|

IBM Storwize V7000 Unified Series Specifications

General

Form Factor	2U
Maximum Drives	504
RAID Levels	0, 1, 5, 6, 10
File Protocols	NFS, CIFS/SMB, FTP, HTTP, HTTPS
Drive Types	SAS, SSD
Maximum Cache	64 GB
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 1 Gb iSCSI
File System Support	GPFS
Data Services	Thin provisioning, Easy Tier, FlashCopy, Remote Mirroring
Management Interface	CLI
Scalability	Scale-out
Operating System Support	Windows, Linux, AIX, VMware
Power Supply	Redundant power supplies
Maximum Capacity	Up to 4PB
