IBM Storwize V7000 Unified Series User Manual

on page 142.
Note: The retention latch is under tension and care should be taken when
unlatching and latching the retention latch.
8. Open the microprocessor bracket frame by lifting up the tab on the top edge.
Keep the bracket frame in the open position.
9. Carefully lift the microprocessor straight up and out of the socket, and place it
on a static-protective surface.
10. If you are instructed to return the microprocessor, follow all packaging
instructions, and use any packaging materials for shipping that are supplied
to you.
Installing a microprocessor and heat sink
The following procedure is for a field replaceable unit (FRU). FRUs must be
installed only by trained service technicians.
Read the documentation that comes with the microprocessor to determine whether
you must update the IBM System x Server Firmware. To download the most
current level of server firmware, complete the following steps:
1. Go to http://www.ibm.com/systems/support/.
2. Under Product support, click System x.
3. Under Popular links, click Software and device drivers.
4. Click System x3650 M2 to display the matrix of downloadable files for the
server.
MicroprocessorMicroprocessor
bracket frame
Microprocessor
release latch
sonas212

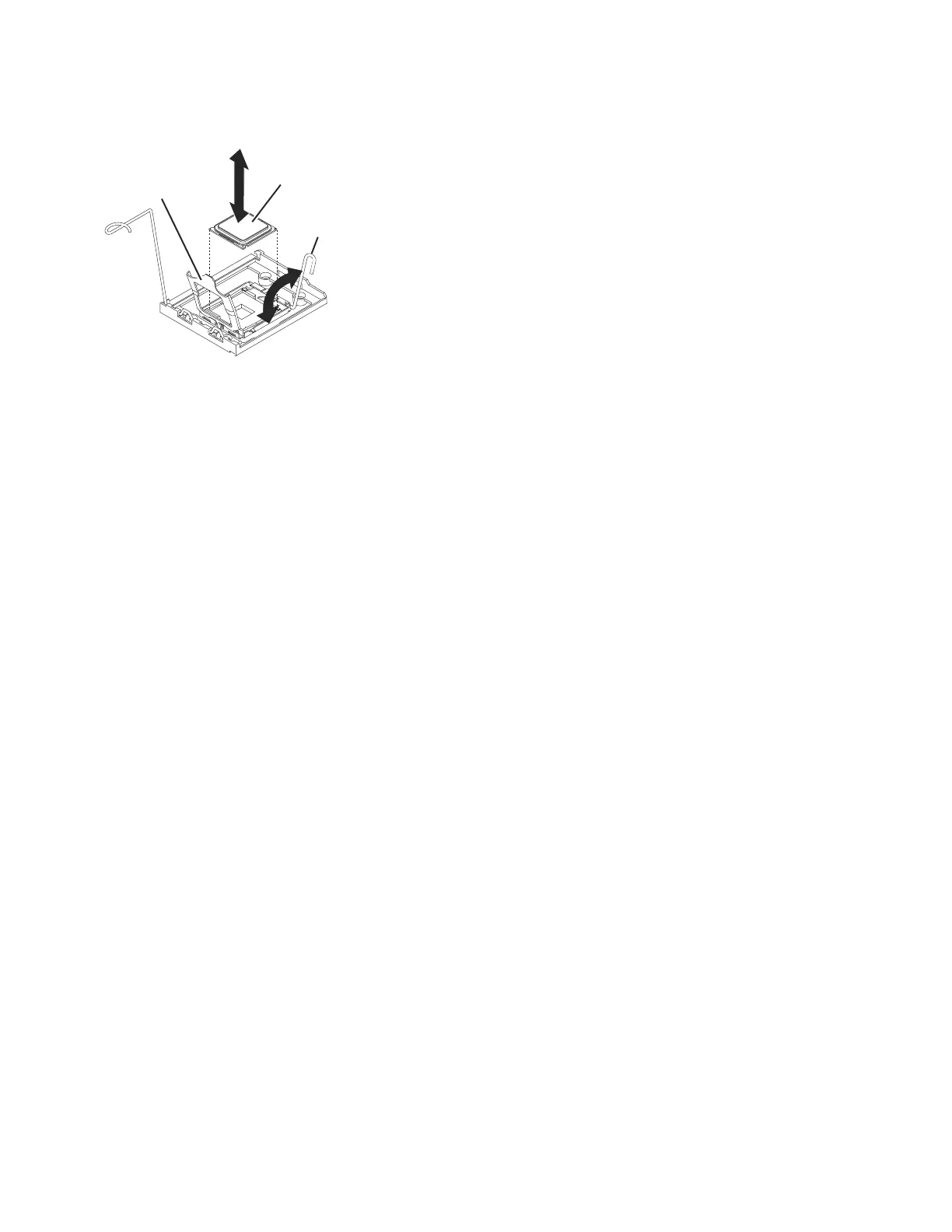

Figure 40. Microprocessor release latch
142 Storwize V7000 Unified: Problem Determination Guide Version

IBM Storwize V7000 Unified Series Specifications

General

Form Factor	2U
Maximum Drives	504
RAID Levels	0, 1, 5, 6, 10
File Protocols	NFS, CIFS/SMB, FTP, HTTP, HTTPS
Drive Types	SAS, SSD
Maximum Cache	64 GB
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 1 Gb iSCSI
File System Support	GPFS
Data Services	Thin provisioning, Easy Tier, FlashCopy, Remote Mirroring
Management Interface	CLI
Scalability	Scale-out
Operating System Support	Windows, Linux, AIX, VMware
Power Supply	Redundant power supplies
Maximum Capacity	Up to 4PB
