IBM Storwize V7000 Unified Series User Manual

3. Plug the replacement cable into the specific port.
4. Ensure that the SAS cable is fully inserted. A click is heard when the cable is
successfully inserted.
Replacing a control enclosure chassis
This topic describes how to replace a control enclosure chassis.
Note: Ensure that you know the type of enclosure chassis that you are replacing.
The procedures for replacing a control enclosure chassis are different from those
procedures for replacing an expansion enclosure chassis. For information about
replacing an expansion enclosure chassis, see “Replacing an expansion enclosure
chassis” on page 235.
svc00651

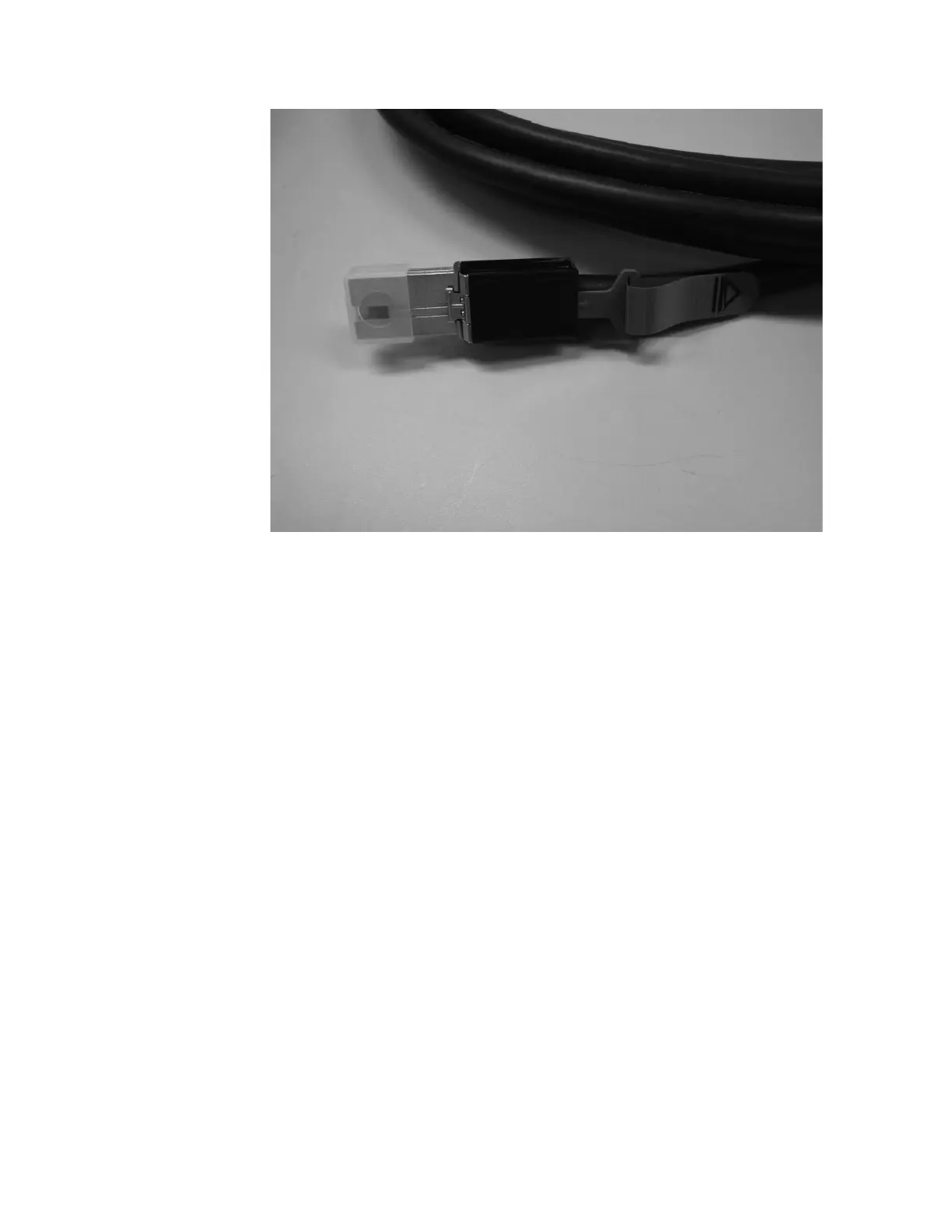

Figure 64. SAS cable
Chapter 5. Control enclosure 229

IBM Storwize V7000 Unified Series Specifications

General

Form Factor	2U
Maximum Drives	504
RAID Levels	0, 1, 5, 6, 10
File Protocols	NFS, CIFS/SMB, FTP, HTTP, HTTPS
Drive Types	SAS, SSD
Maximum Cache	64 GB
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 1 Gb iSCSI
File System Support	GPFS
Data Services	Thin provisioning, Easy Tier, FlashCopy, Remote Mirroring
Management Interface	CLI
Scalability	Scale-out
Operating System Support	Windows, Linux, AIX, VMware
Power Supply	Redundant power supplies
Maximum Capacity	Up to 4PB
