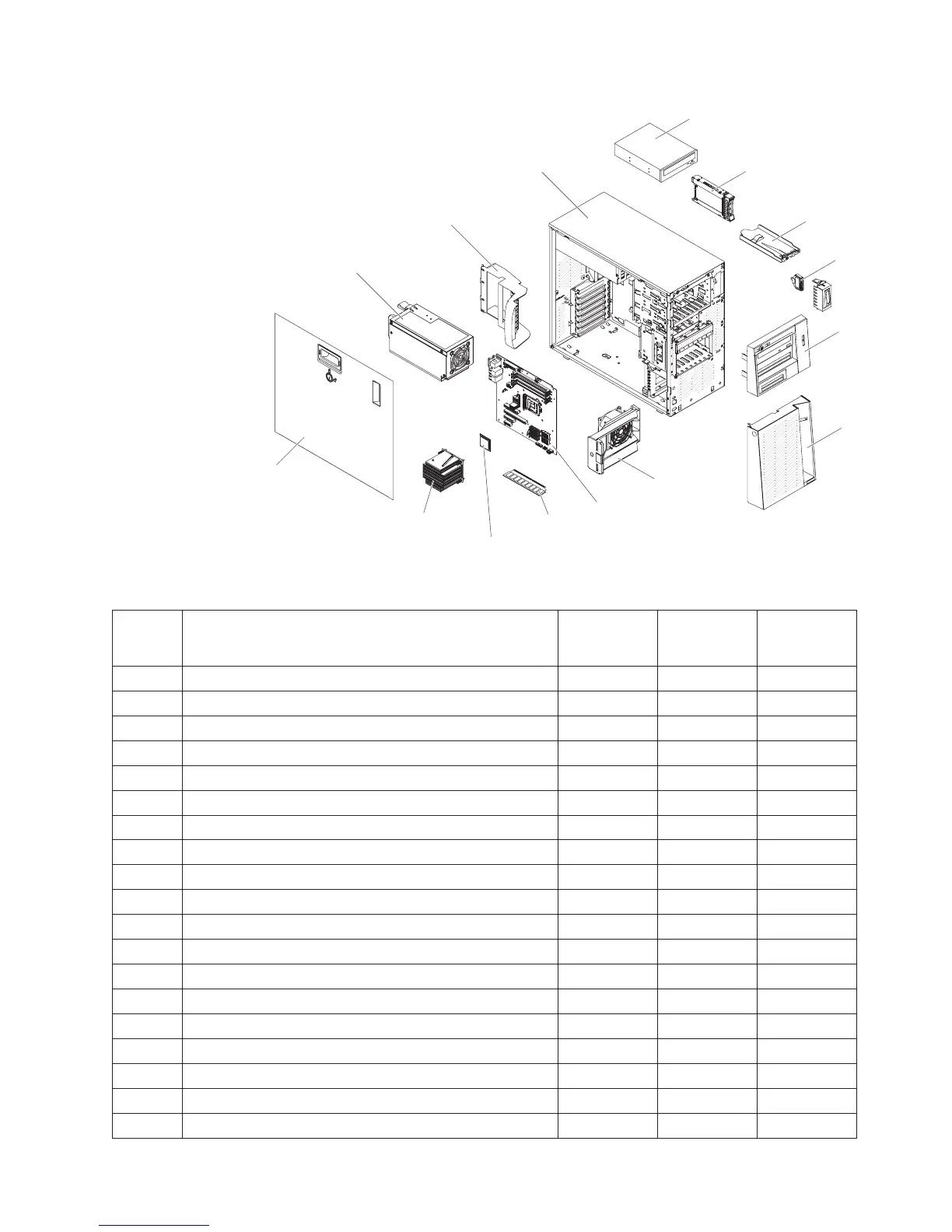

Table 9. Parts listing for the 5U server model with hot-swap power supplies (Model name: 2582-F4x). For 4U server
models with non-hot-swap power supplies, please see Table 8.
Index Description
CRU part
number
(Tier 1)
CRU part
number
(Tier 2)
FRU part
number
1 Side cover with lock 49Y8447
2 Power supply, redundant, 430 watt 46M6679
3 Retention bracket (rear), adapter 00D8851
4 Chassis assembly 00D8859
5 DVD-ROM Drive, SATA 43W8466
6 Hard disk drive, SATA, 2.5- inch 900 GB, hot-swap 81Y9651
7 Operator information panel assembly 49Y8456
8 Front USB connector assembly 49Y8449
9 Bezel, upper 00D8857
10 Bezel, lower 90Y5210
11 Hard disk drive fan duct 00D8849
12 System board assembly 00D8868
13 Memory, 1 GB 1Rx8 UDIMM, 1333 MHz, DDR3 44T1572
13 Memory, 2 GB 1Rx8 UDIMM, 1333 MHz, DDR3 44T1574
13 Memory, 4 GB 2Rx8 UDIMM, 1333 MHz, DDR3 44T1575
13 Memory, 2GB 1Rx8 UDIMM, 1600 MHz, DDR3 00D4953
13 Memory, 4GB 2Rx8 UDIMM, 1600 MHz, DDR3 00D4957
13 Memory, 8GB 2Rx8 UDIMM, 1600 MHz, DDR3 00D4961
14 Microprocessor, Core i3-2100, 3.1GHz 2C 3MB cache 69Y5148
Chapter 4. Parts listing, System x3100 M4 Type 2582 155

IBM System x3100 M4 Specifications

General

Memory	Up to 32 GB DDR3 ECC UDIMM
Memory Slots	4 DIMM slots
Form Factor	Tower
Chipset	Intel C202
Processor Sockets	1
Processor	Intel Xeon E3-1200 v2 series, Intel Pentium series, Intel Celeron series
Storage	Up to 4x 3.5-inch
Power Supply	350W
Hard Drive Bays	4 x 3.5"
RAID Support	RAID 0, 1, 10
Network Interface	Gigabit Ethernet
Expansion Slots	1 x PCIe 3.0 x16, 1 x PCIe 2.0 x4
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
