IBM TS3500 Introduction And Planning Guide

a69i0292
B
Rear
Front
(2X) 41.4
(1.6)
(2X) 699.2
(27.5)
M10
(4X)
(2X) 658
25.9
(2X) 807.4
(31.8)
(2X) 1116
(43.9)
(2X) 1008
(39.7)
(2X) 208
(8.2)
(2X) 99
(3.9)
(2X) 148.8
(5.9)
(2X) 683
26.8
762
(30)
762
(30)
410
(16.4)
762
(30)
99
(3.9)
762
(30)
A
Leveling pad
Caster
Power cord exit
Cable exit area
Operator side
Move restraints
(2X) 64
(2.5)
(2X) 90
(3.5)

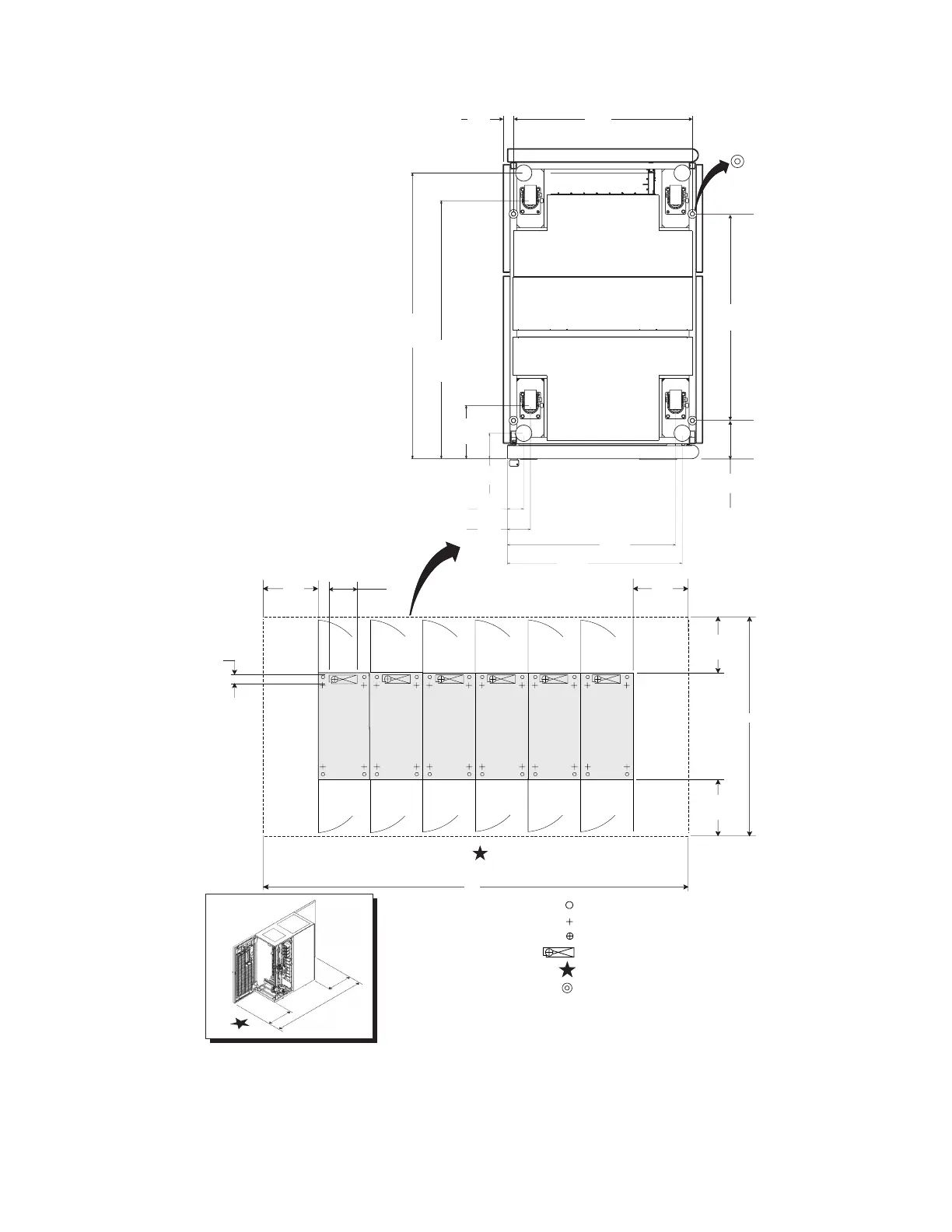

Figure 19. Size of operator and service clearances for the IBM System Storage TS3500 Tape Library, Models L22,
D22, L23, D23, L52, D52, L53, D53, S24, S54, and the service bays. The top measurements are in millimeters; the
bottom measurements are in inches. The service clearance area (and operator clearance area at the front of both
frames) is denoted by dotted lines.
Chapter 2. Physical planning specifications 105

IBM TS3500 Specifications

General

Type	Tape Library
Model	TS3500
Max. drives	Up to 192
Interface	Fibre Channel, SAS
Encryption	Yes
Tape Technology	LTO, IBM TS11xx
Drive support	IBM TS1160
