To route the cables through the top of a frame, perform the following procedure.
1. Open the cable access door at the top of the frame (see 1 in Figure 23).
2. Route Fibre Channel cables from the servers into the cable access door and
down to the bulkhead assembly.
3. Open the rear door of the frame.
4. Attach the Fibre Channel cables to the appropriate location in the bulkhead.
5. Use the Velcro ties to secure the Fibre Channel cables along the left side of the
frame.
6. After you route the cables inside the frame, position them as shown in
Figure 24 on page 110
a69m0251
1

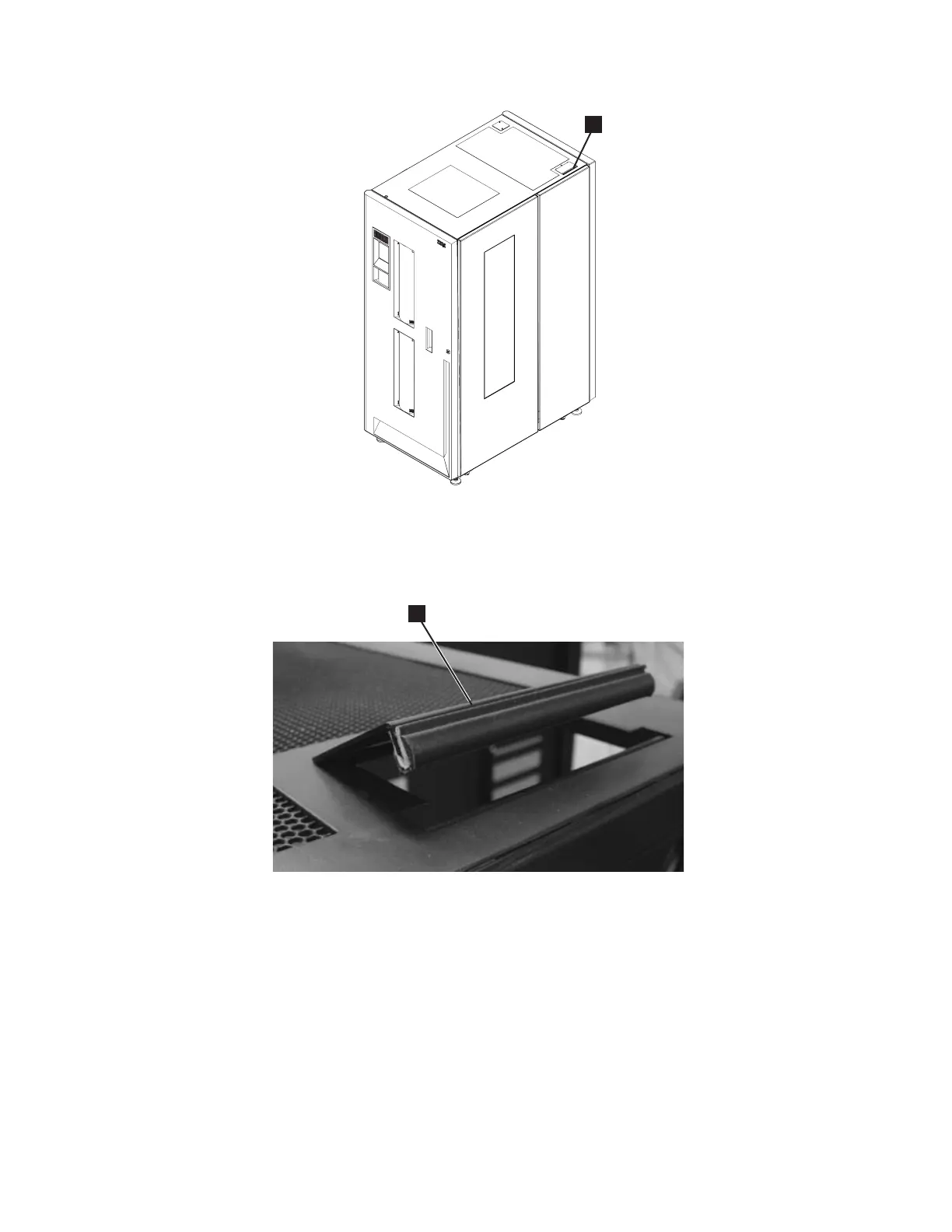

Figure 22. Opening for routing Fibre Channel cables from servers through the top of a frame
1
a69m0252
Figure 23. Opening the cable access door at the top of a frame
Chapter 2. Physical planning specifications 109
