IBM TS3500 Introduction And Planning Guide

Dial Out security features
Dial out is used by the Call Home feature to send service-related
information from the attached systems to the IBM service support system,
RETAIN
®
; and to optionally send a pager message to a
customer-designated number. Dial out is available through the TSSC and
the modem. Dial out security properties for the Attached Systems are as
follows:
a69i0350
RMSS Tape Network
Connectivity Legend:
Total Storage Service Console
Internal LAN networks
250
251
Customer's Network
VTS
AX0/CX1
C06 J70 C06
Customer
Router/
Firewall
LMBLMA
Customer
Network
Fiber
S w
EKM
Rtr
EKM
Rtr
Primary for Dual LAN
3 Com Switch
Network
192.168.250.xxx
TS7700
V06
RMSS Tape Complex for 3494 and 3953
Alternate for Dual LAN
Primary for Single LAN
3 Com Switch Network
192.168.251.xxx
TS3000
Router Router Router
TS3500 Automated
Tape Library
TSSC Switch
Network 172.31.1.xxx
Fiber
S w
Fiber
S w
Modem
Passwords
protected
set by CE
Modem
Passwords
protected
set by CE
- TotalStorage Service Console network connects the following
subsystems: LMA, LMB,
- Modems attached to TS3000 Service Console (TSSC) and TS3500.
TS3000 offers outbound only internet connectivity to return error logs
to IBM.
- Redundant LANs connected the VTS, TS7700, C06, J70, LMA, LMB
- LMA, LMB, TS7700, AX0, CX1 and EKM routers have customer network access.
- The 3953 uses the TS3500 Automated Tape Library, but not the A60 tape controller.
- The TS3500 calls home through either the TSSC or the modem but not both.
R
R
Broadband

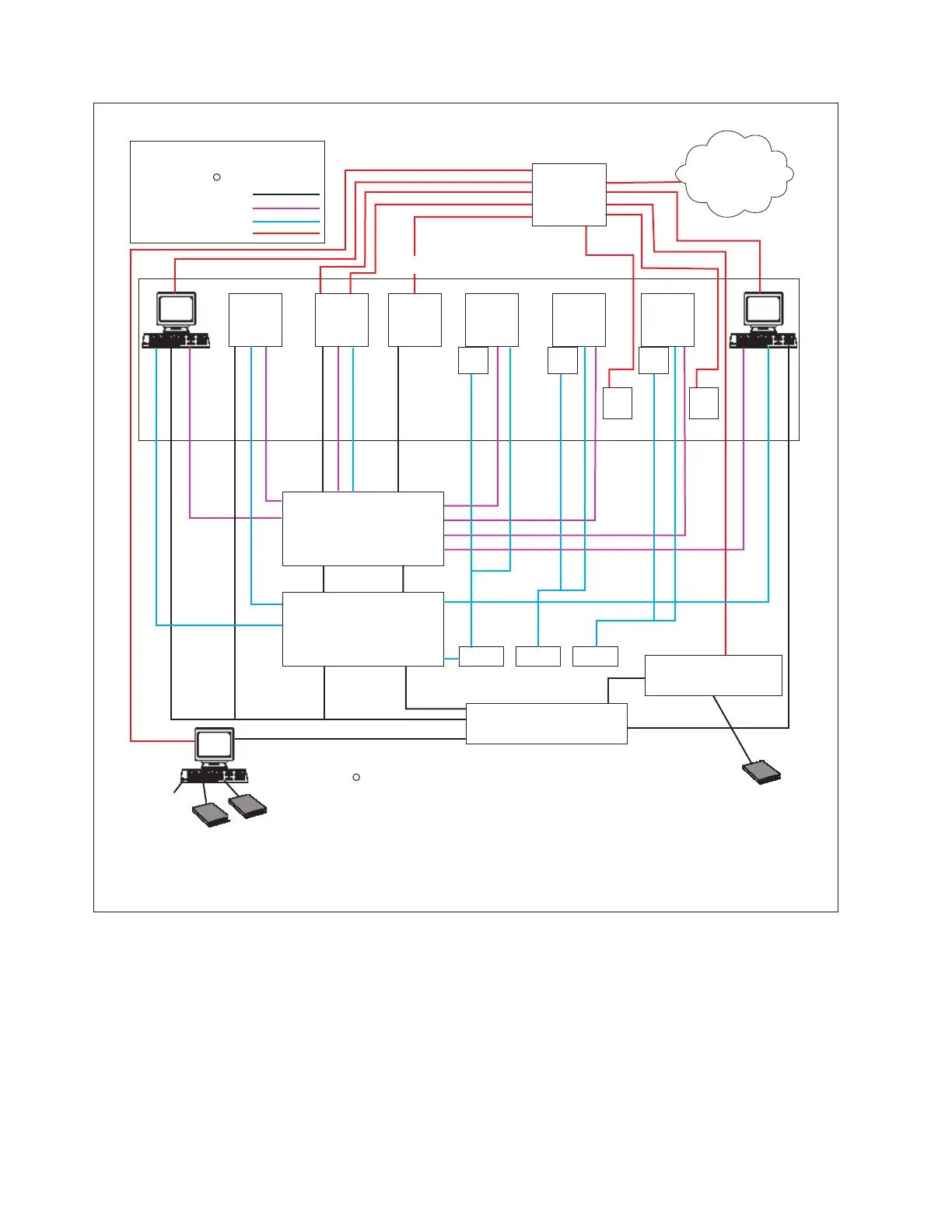

Figure 14. Attachment of the system console to the TS3500 Tape Library and the 3953 Tape System for remote
support
64 IBM System Storage TS3500 Tape Library with ALMS: Introduction and Planning Guide

IBM TS3500 Specifications

General

Type	Tape Library
Model	TS3500
Max. drives	Up to 192
Interface	Fibre Channel, SAS
Encryption	Yes
Tape Technology	LTO, IBM TS11xx
Drive support	IBM TS1160
