Running cables, wiring, and pipes between frames
This section describes how to run cables, wires, and pipes between frames in the
TS3500 Tape Library.
Figure 28 shows a side view of the area available to run cables, wiring, and pipes
between frames of the TS3500 Tape Library. The area is a triangular section that is
81 mm (3.2 in.) wide by 140 mm (5.5 in.) long (see 1 in Figure 28). Your
fire-suppression mechanical equipment must fit within the allowable area or be
installed outside the library.
All water systems must be external to the library's frame, with mechanical support
provided for piping. Sprinkler heads that extend through the top of the frame
must not extend more than 175 mm (6.9 in.) below the top of the frame.
Route gaseous system piping with discharge nozzles on the top of the frames or
inside the frames, below the top of the frame and within the 175-mm (6.9-in.)
specification. The discharge nozzles can extend vertically no lower than 175 mm
(6.9 in.) from the top of the frame. Gas cylinders and control equipment must be
external to the library. IBM does not supply heat or smoke detectors.

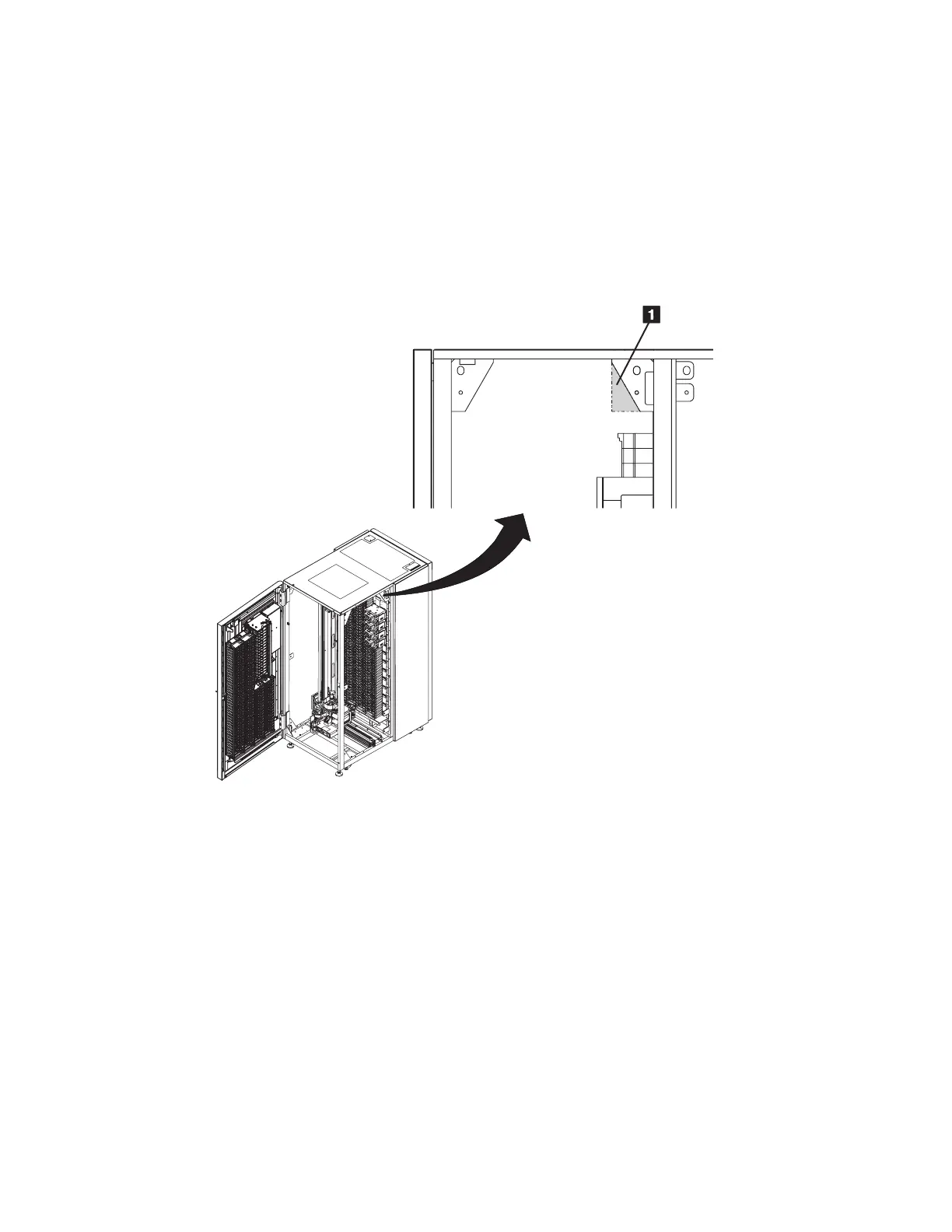

a69i0042
Figure 28. Location for routing fire-suppression equipment between frames
114 IBM System Storage TS3500 Tape Library with ALMS: Introduction and Planning Guide
