Through its vision system, the TS3500 Tape Library identifies the types of
cartridges it contains during an inventory operation. The bar code reader reads the
VOLSER (see 3 in Figure 50) of the cartridge bar code label 2 that is in the
label area 4 of the cartridge. If your cartridge does not have a pre-attached bar
code label and you attach one to it, place it entirely within the recessed label area
(see 3 and 4 as an example of proper placement). The label must be flat to
within 0.5 mm (0.02 in.) over the length of the label and have no folds, missing
pieces, tears, or any extraneous markings. Failure to follow these placement
requirements will result in degraded readability.
The IBM product label 5 specifies the type of cartridge: data, Economy, WORM,
Economy WORM, or cleaning.
The cartridge door 6 protects the tape from contamination when the cartridge is
out of the drive. When you insert the cartridge into the drive, a threading
mechanism pulls the tape out of the cartridge, across the drive head, and onto a
non-removable takeup reel. The head can then read or write data from or to the
tape.
Each data cartridge includes a write-protect switch 7 that you can set to prevent
data from being overwritten or erased from the tape by the drive.
You can order tape cartridges with the bar code labels included, or you can order
custom labels.
The 3592 data cartridge has a nominal cartridge life of 20,000 load and unload
cycles. The quantity of load and unload cycles to reach this number depends on
the environment in which the tape is used.
5
6
7
1
2
3
4
a69i0152
T
M
IBM TotalStorage Enterprise Tape Cartridge 3592
Reorder No. 18P7534
DATA
*1PJ1H906JA
J
1
H
9
0
6
J
A

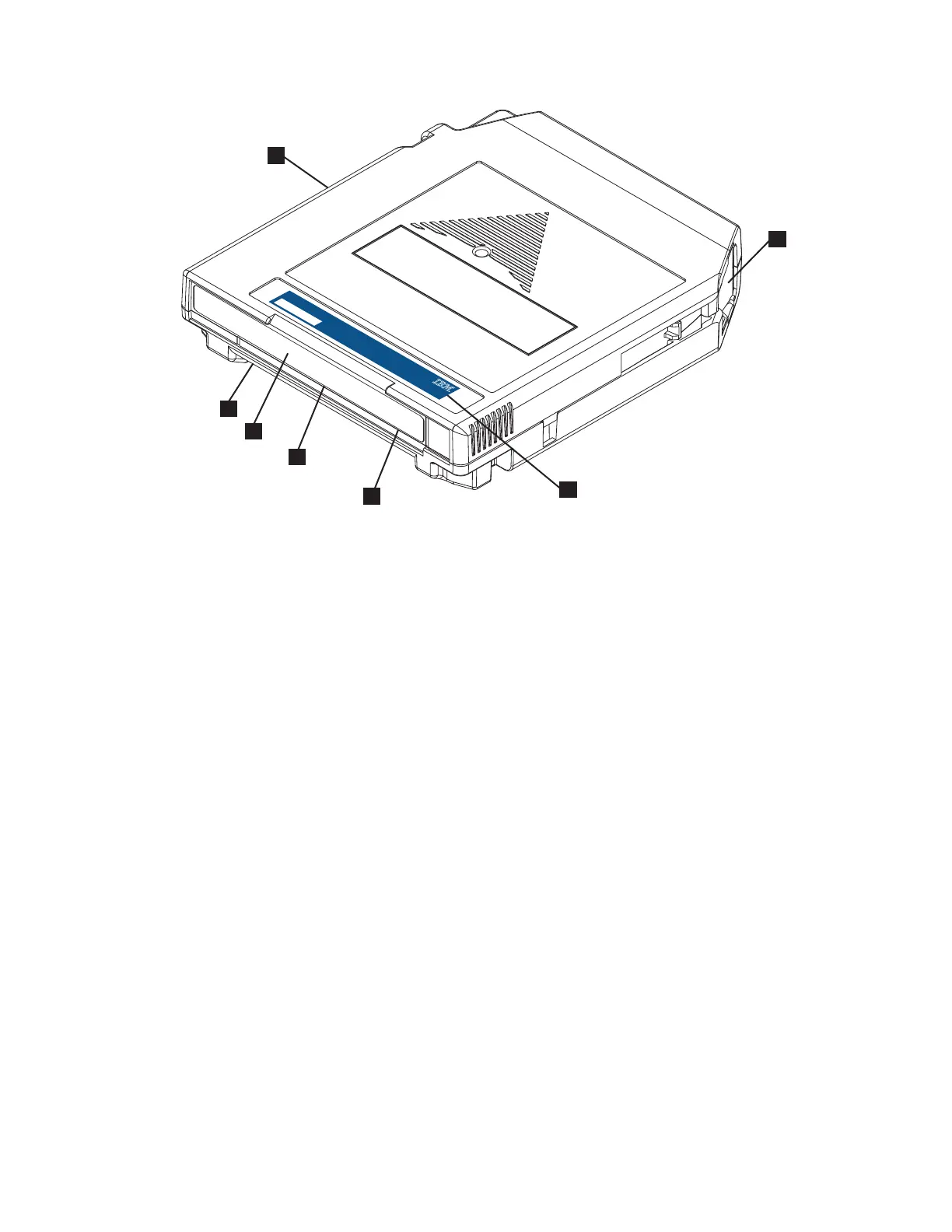

Figure 50. Components of the IBM TotalStorage 3592 Enterprise Tape Cartridge
Chapter 5. Using 3592 tape drive media 179
