The service rating for all 100–127 V ac plug types is as follows:
v Maximum voltage: 125 V ac
v Current: see Table 48
v Phases: 1
v Wires: 3
Table 48. Specifications for 100–127 V ac power cords used with the TS3500 Tape Library, models L32 and D32
Length and type of
power cord
Single branch circuit 20 A service rating
Dual ac line cords 20 A service rating
(feature code 1901)
Part number
and feature
code
Type of service
receptacle
Part number
and feature
code
Type of service
receptacle
4.3 m (14 ft)
non-watertight twistlock
(in the U.S. and Canada)
19P5903 / 9951
and 9987
NEMA L5-20R
(receptacle 1)
12J5117 / 9951
and 9987
NEMA L5-20R
(receptacle 1)
1.8 m (6 ft)
non-watertight twistlock
(in Chicago, Illinois, U.S.)
19P5904 / 9951
and 9986
NEMA L5-20R
(receptacle 1)
12J5115 / 9951
and 9986
NEMA L5-20R
(receptacle 1)
Refer to Figure 29 and match the number that is beside each receptacle to the
number in each table.
a69i0117
1
4
2
5
3
6

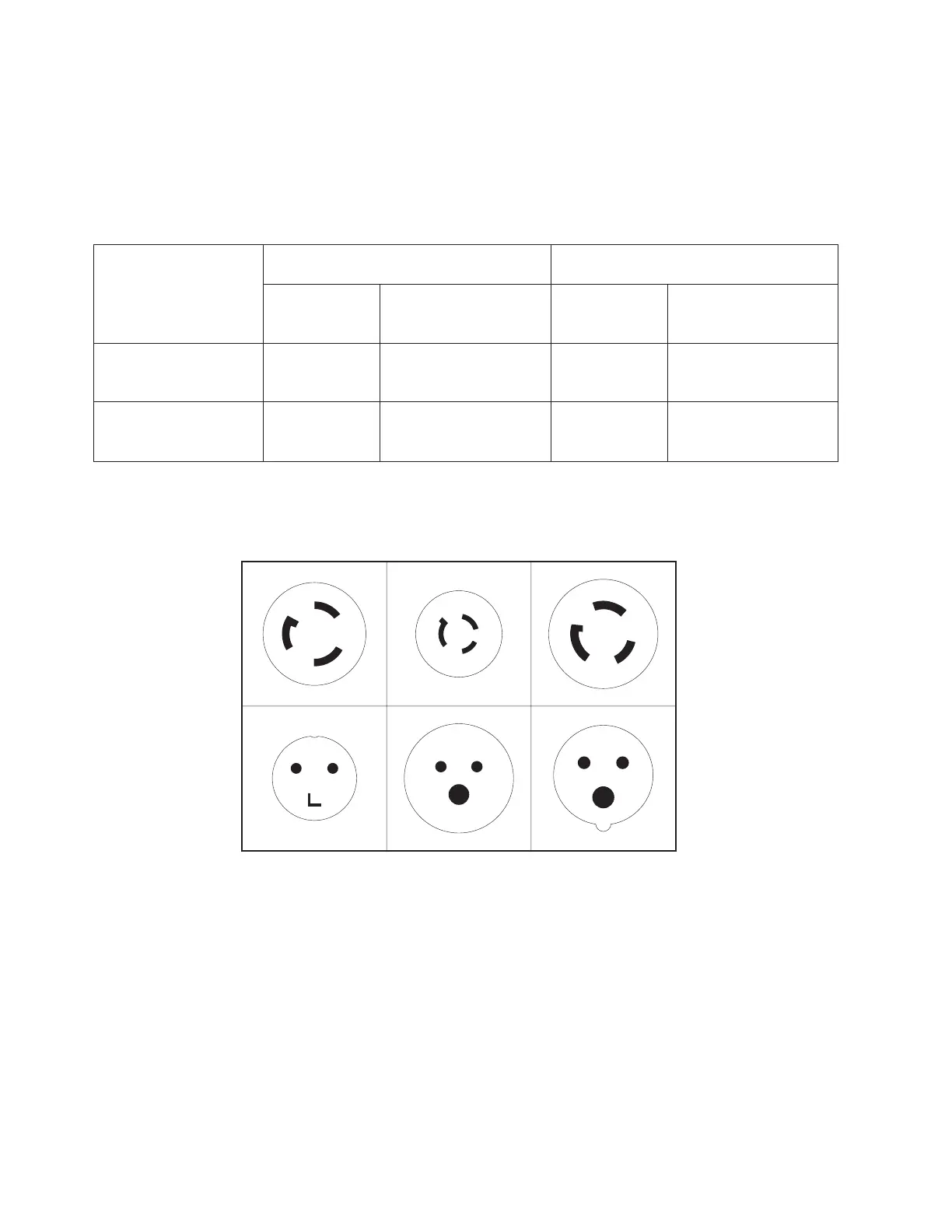

Figure 29. Types of receptacles for power cords used by models L32 and D32 of the TS3500 Tape Library
126 IBM System Storage TS3500 Tape Library with ALMS: Introduction and Planning Guide
